Brake Actuator: Components: Illustration

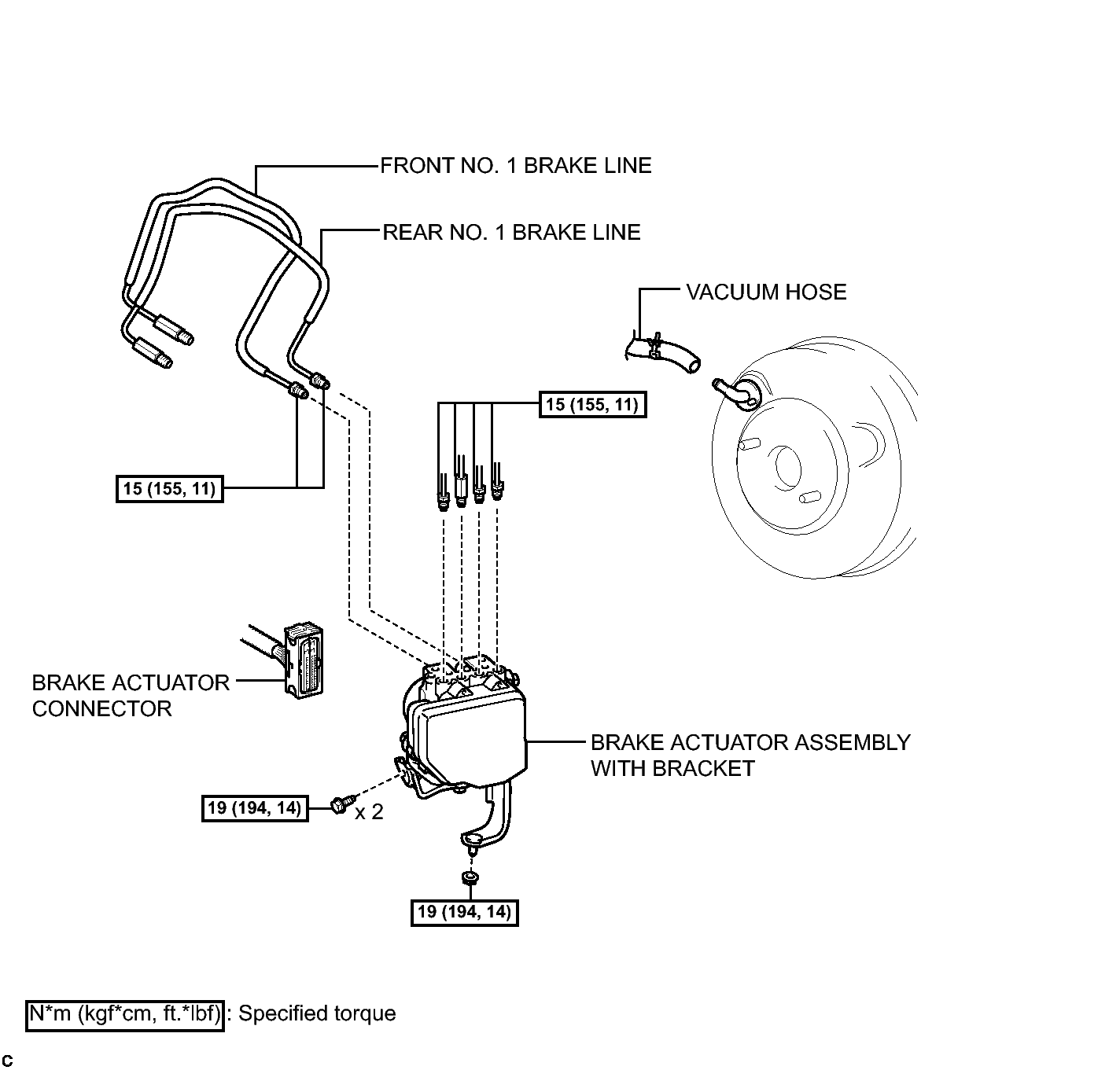

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
GTY273330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

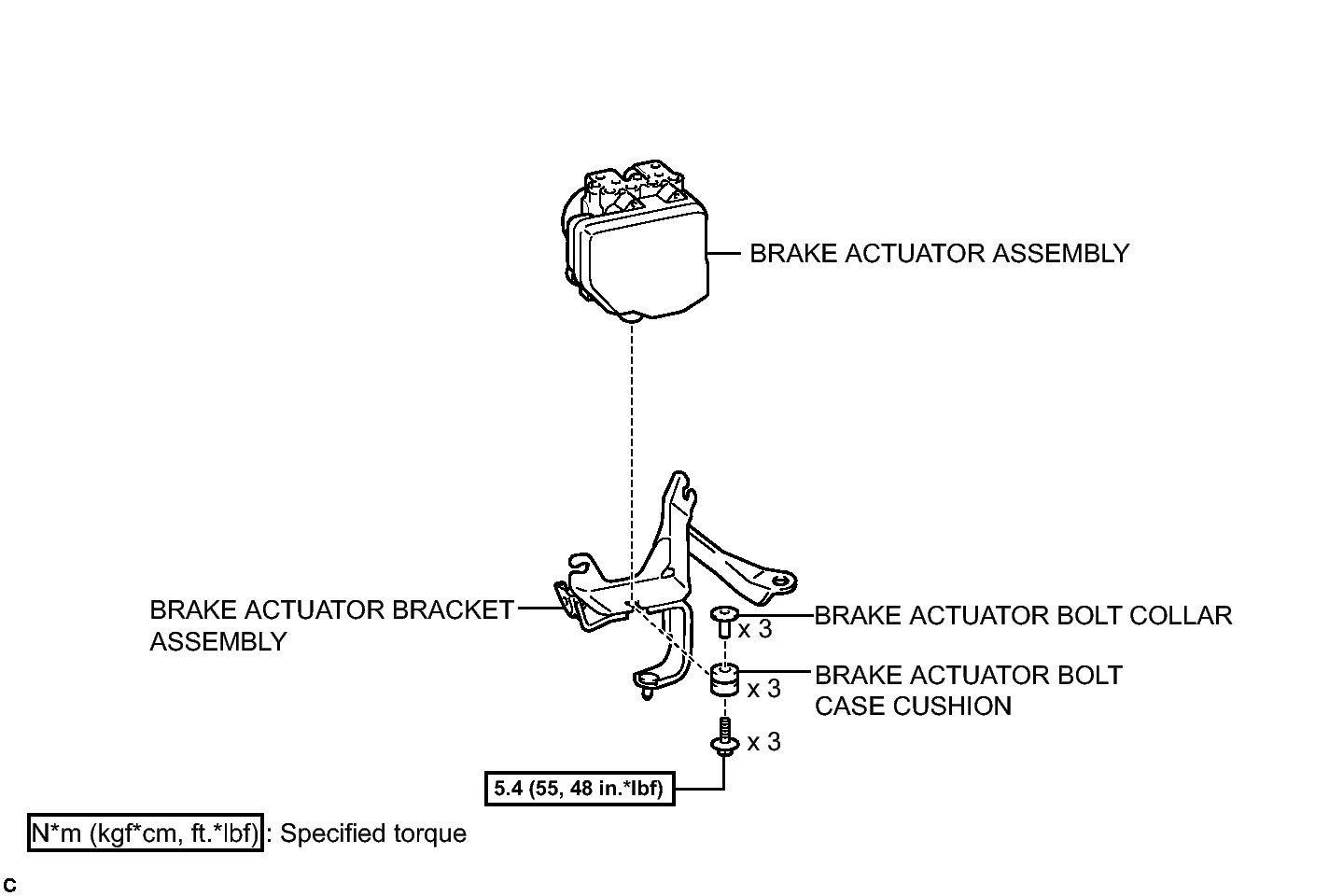

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2 Of 2)
GTY260001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
