VSC Off Switch: Removal: Removal
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work. Refer to PRECAUTION .
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- REMOVE DOOR SCUFF PLATE ASSEMBLY LH . Refer to REMOVAL - Step 2
- REMOVE FRONT DOOR OPENING TRIM COVER LH . Refer to REMOVAL - Step 3
- REMOVE INSTRUMENT SIDE PANEL LH . Refer to REMOVAL - Step 30
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 32
- REMOVE VSC OFF SWITCH

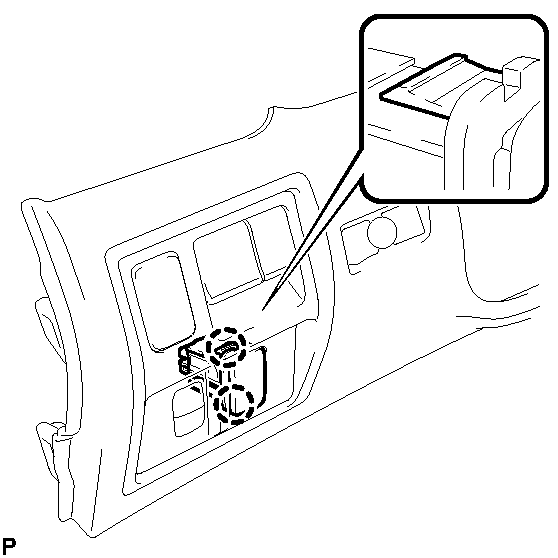

- Disengage the 2 claws to remove the VSC off switch from the lower instrument panel finish panel sub-assembly.
