Power Seat (Front RH Seat w/Seat Position Memory): Notes

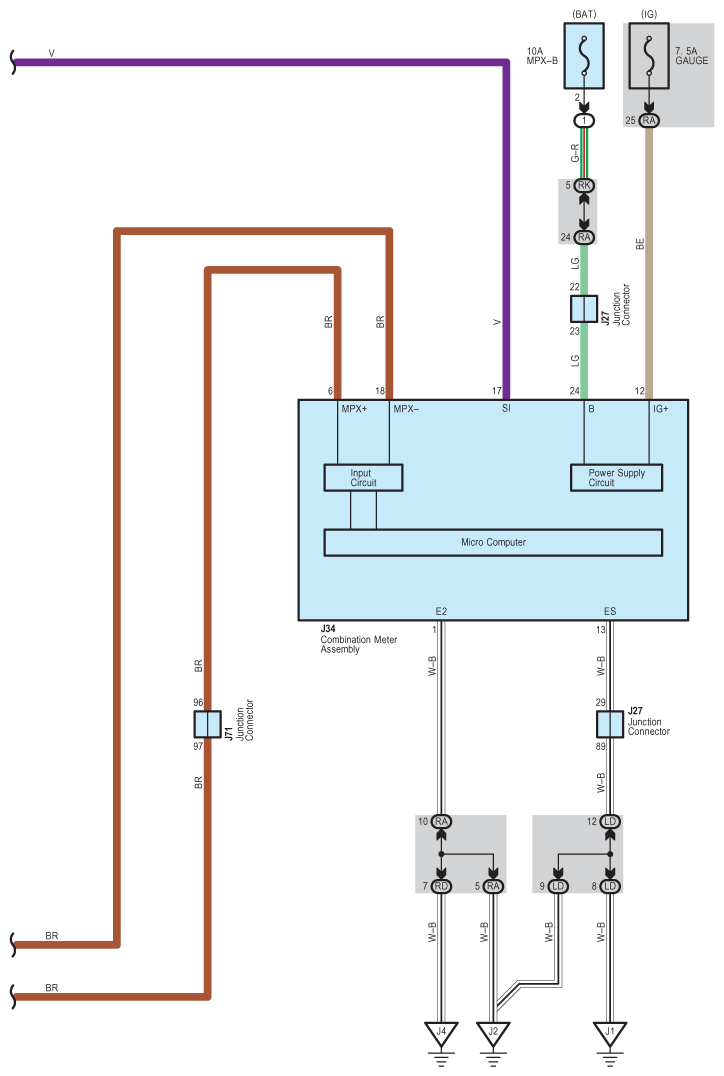

Fig 1: Power Seat (Front RH Seat W/ Seat Position Memory) - Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

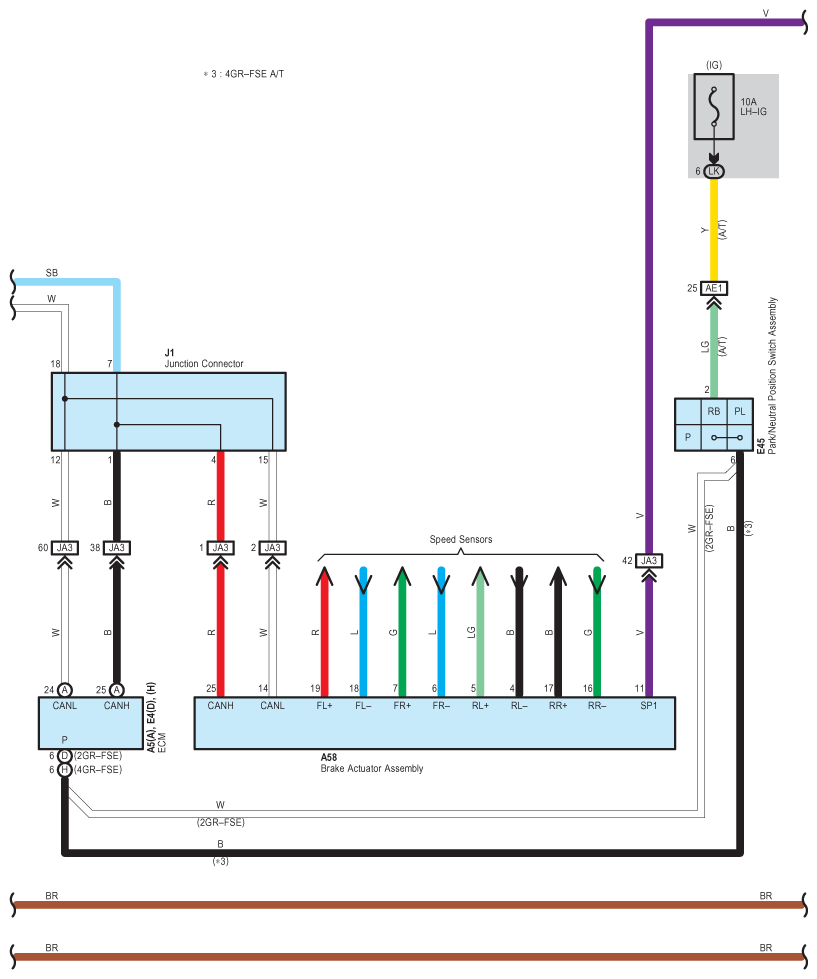

Fig 2: Power Seat (Front RH Seat W/ Seat Position Memory) - Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

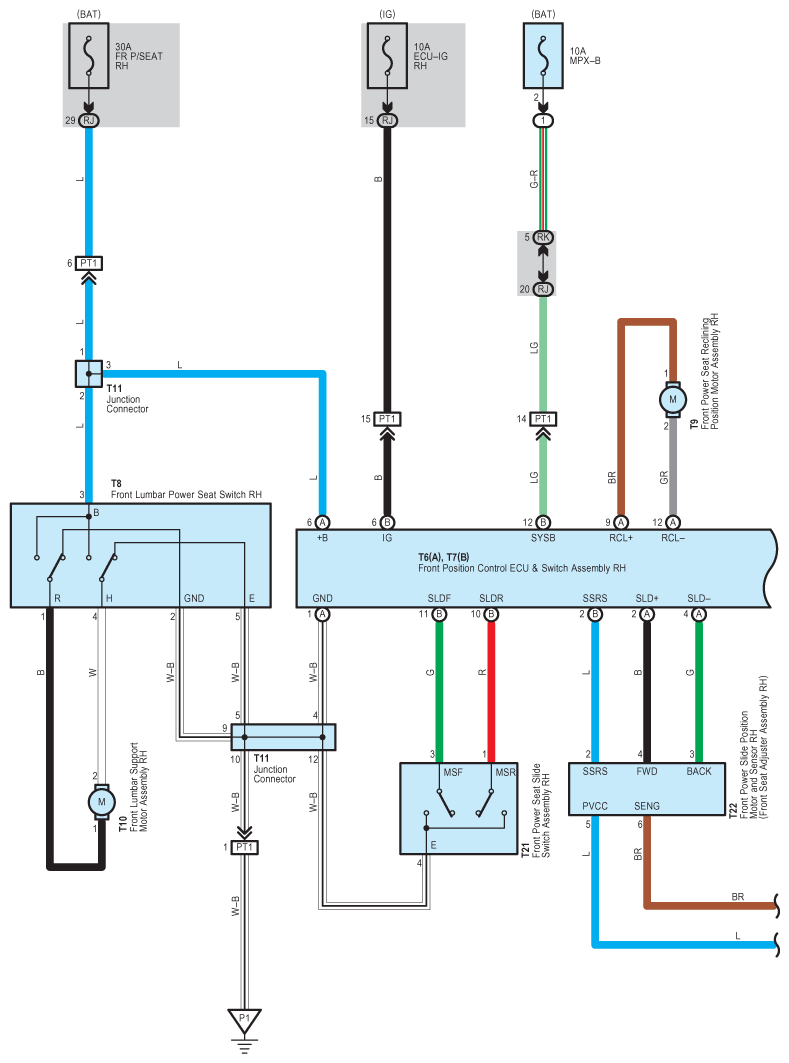

Fig 3: Power Seat (Front RH Seat W/ Seat Position Memory) - Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

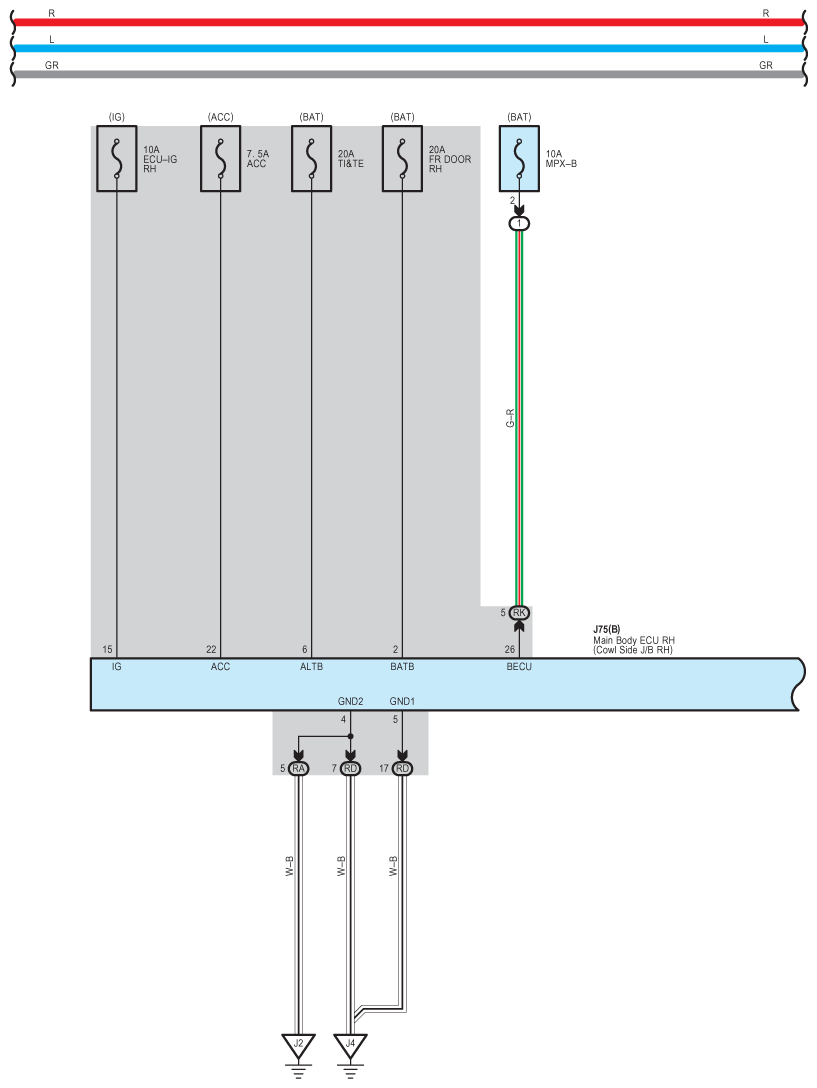

Fig 4: Power Seat (Front RH Seat W/ Seat Position Memory) - Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

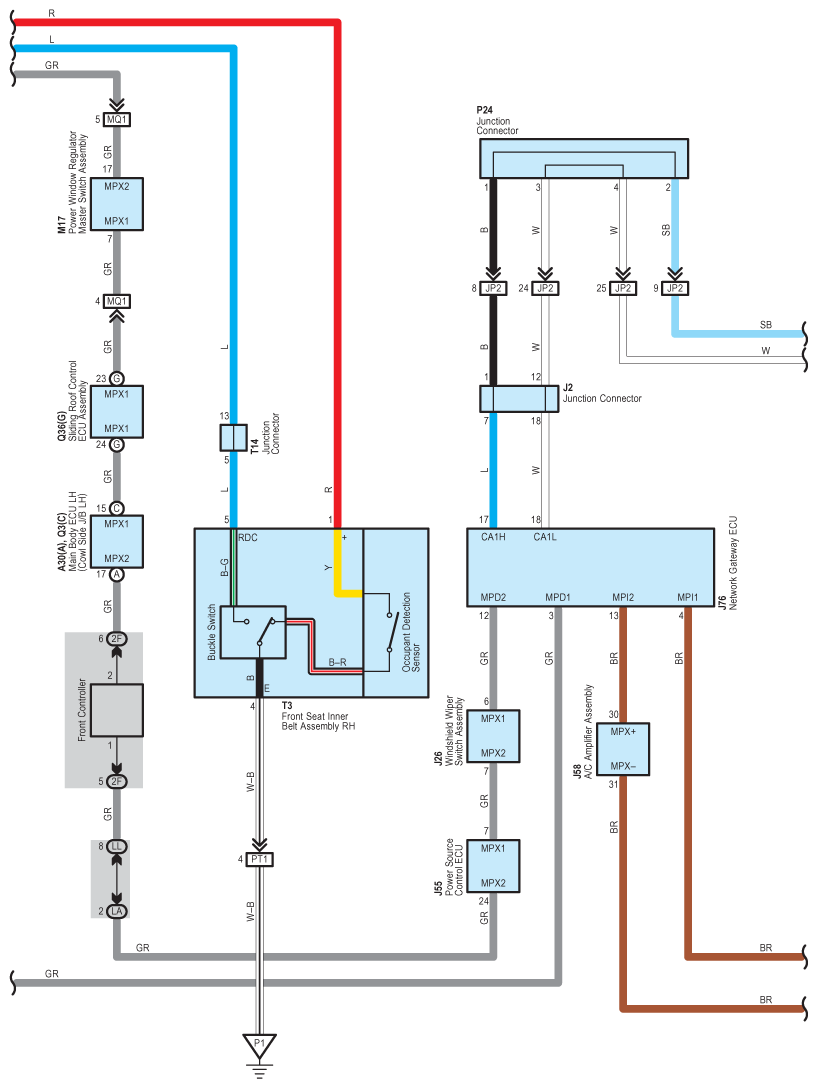

Fig 5: Power Seat (Front RH Seat W/ Seat Position Memory) - Wiring Diagram (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

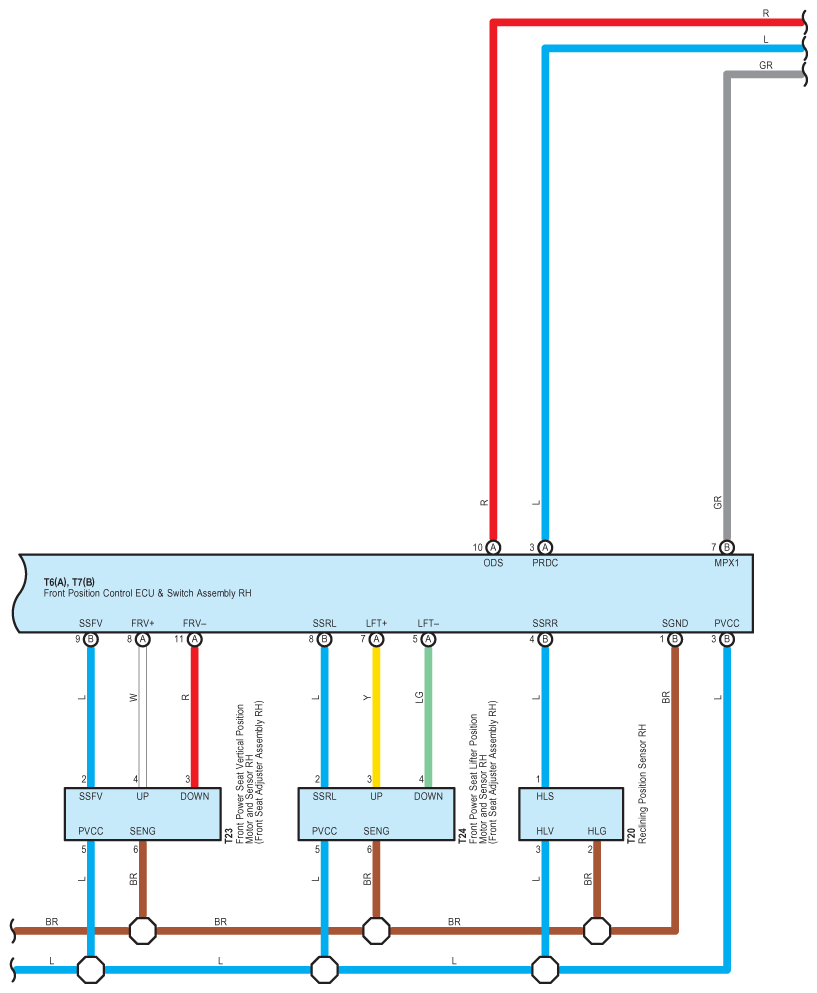

Fig 6: Power Seat (Front RH Seat W/ Seat Position Memory) - Wiring Diagram (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

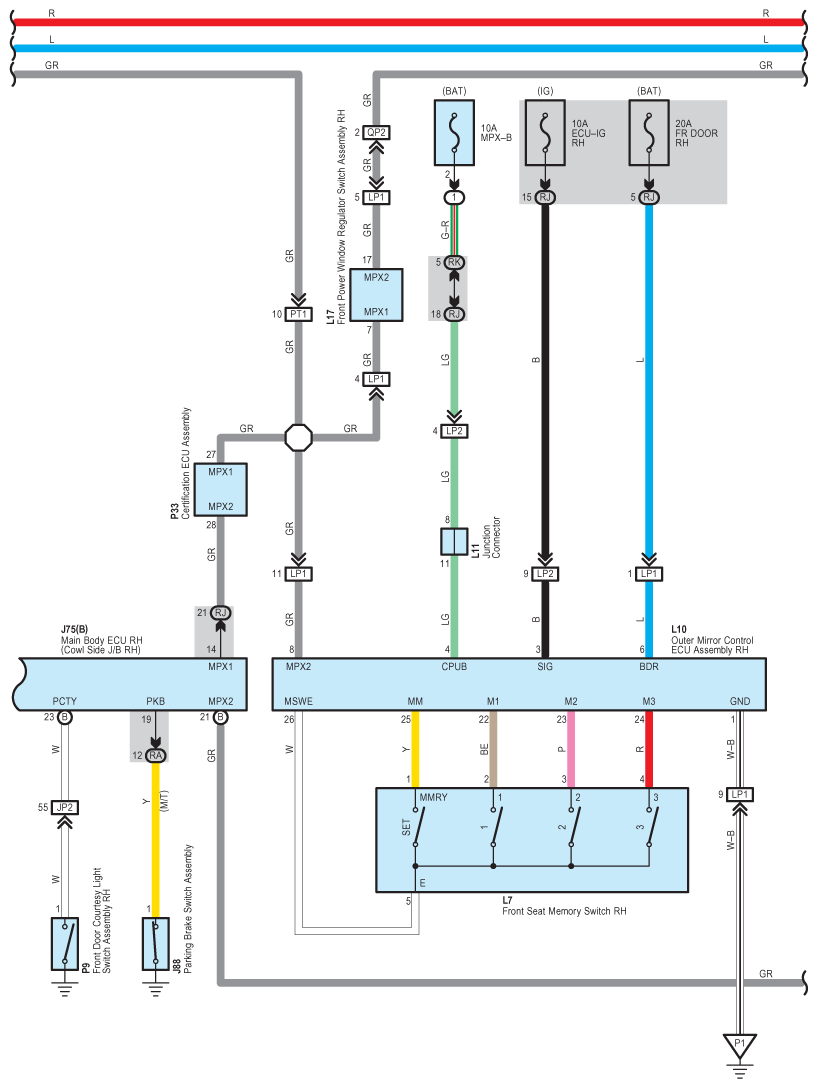

Fig 7: Power Seat (Front RH Seat W/ Seat Position Memory) - Wiring Diagram (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
