Ignition Coil And Spark Plug: Removal: Removal

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
    1. Remove the intake air surge tank. Refer to REMOVAL .
  2. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 6 ignition coil connectors.
    2. Remove the 6 bolts and the 6 ignition coil assemblies.

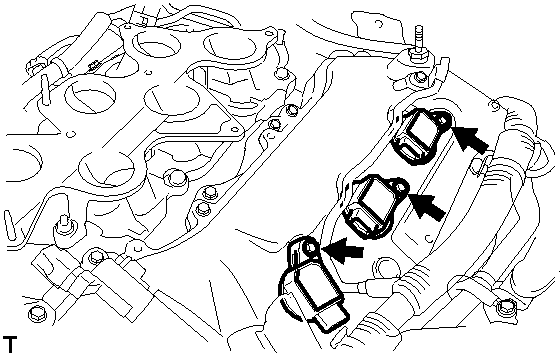

      Fig 1: Identifying Bolts & Ignition Coil Assemblies
      GTY146014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SPARK PLUG
    1. Using a spark plug wrench, remove the 6 spark plugs.
