Steering Column Assembly: Components: Illustration

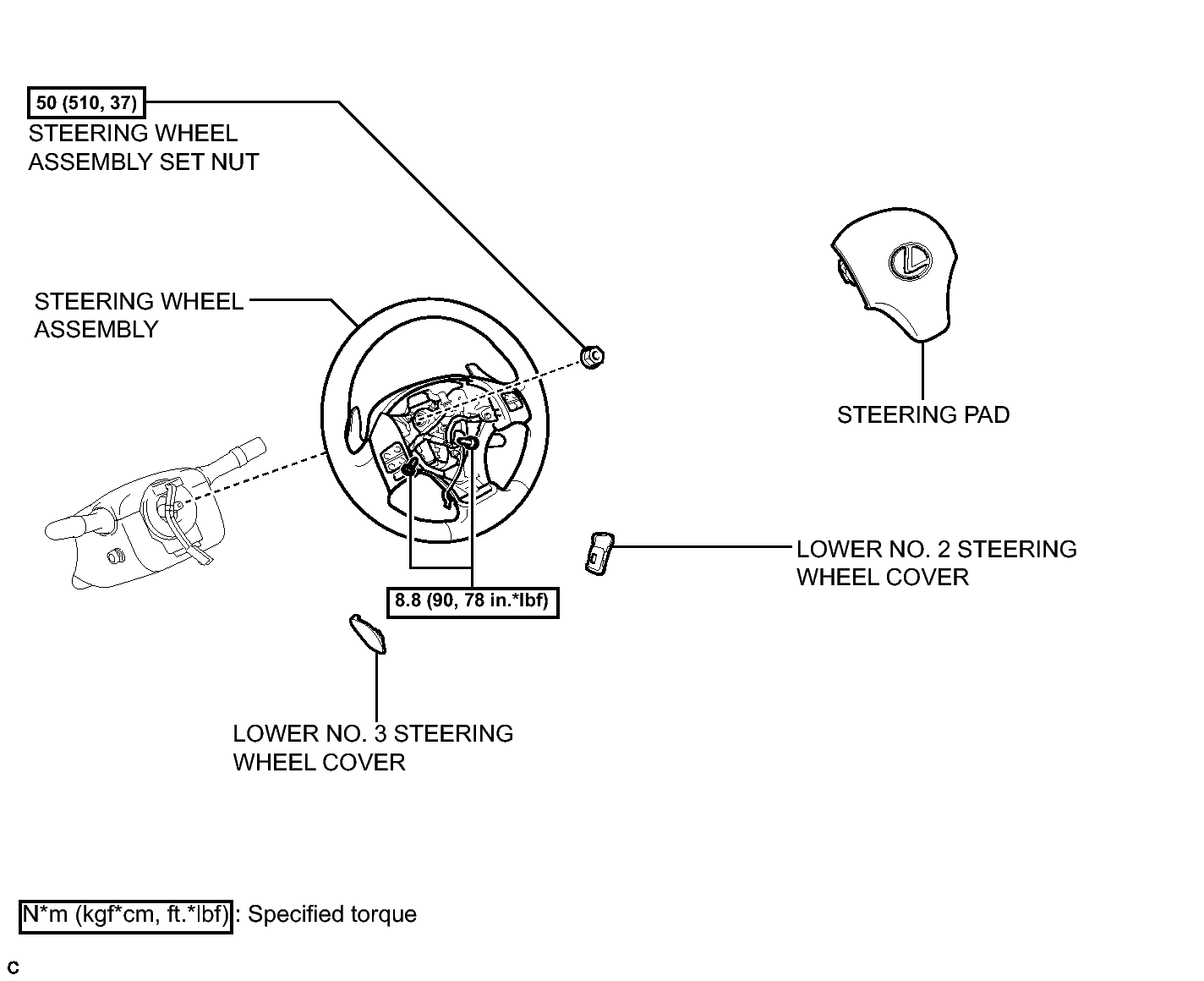

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

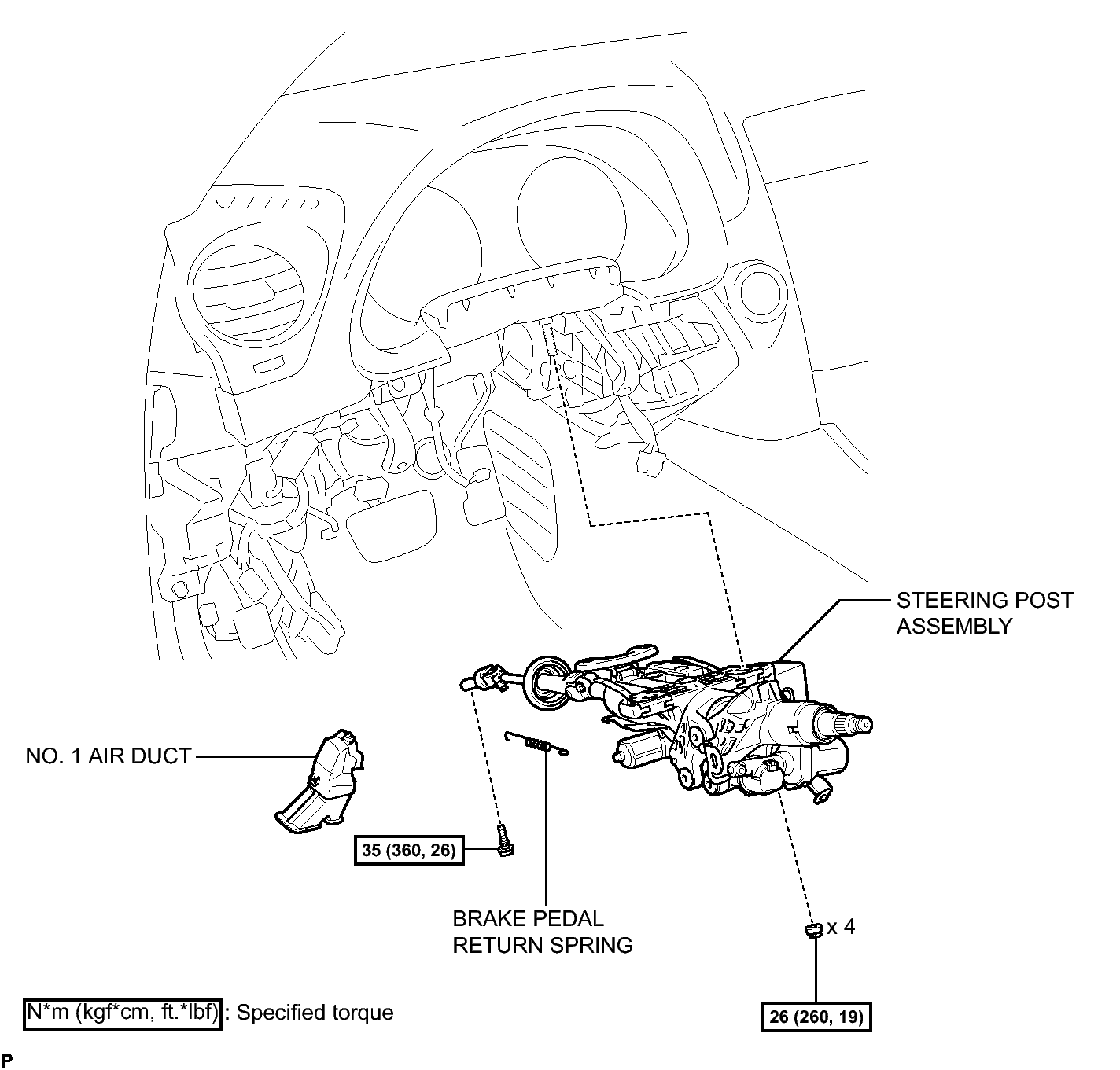

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

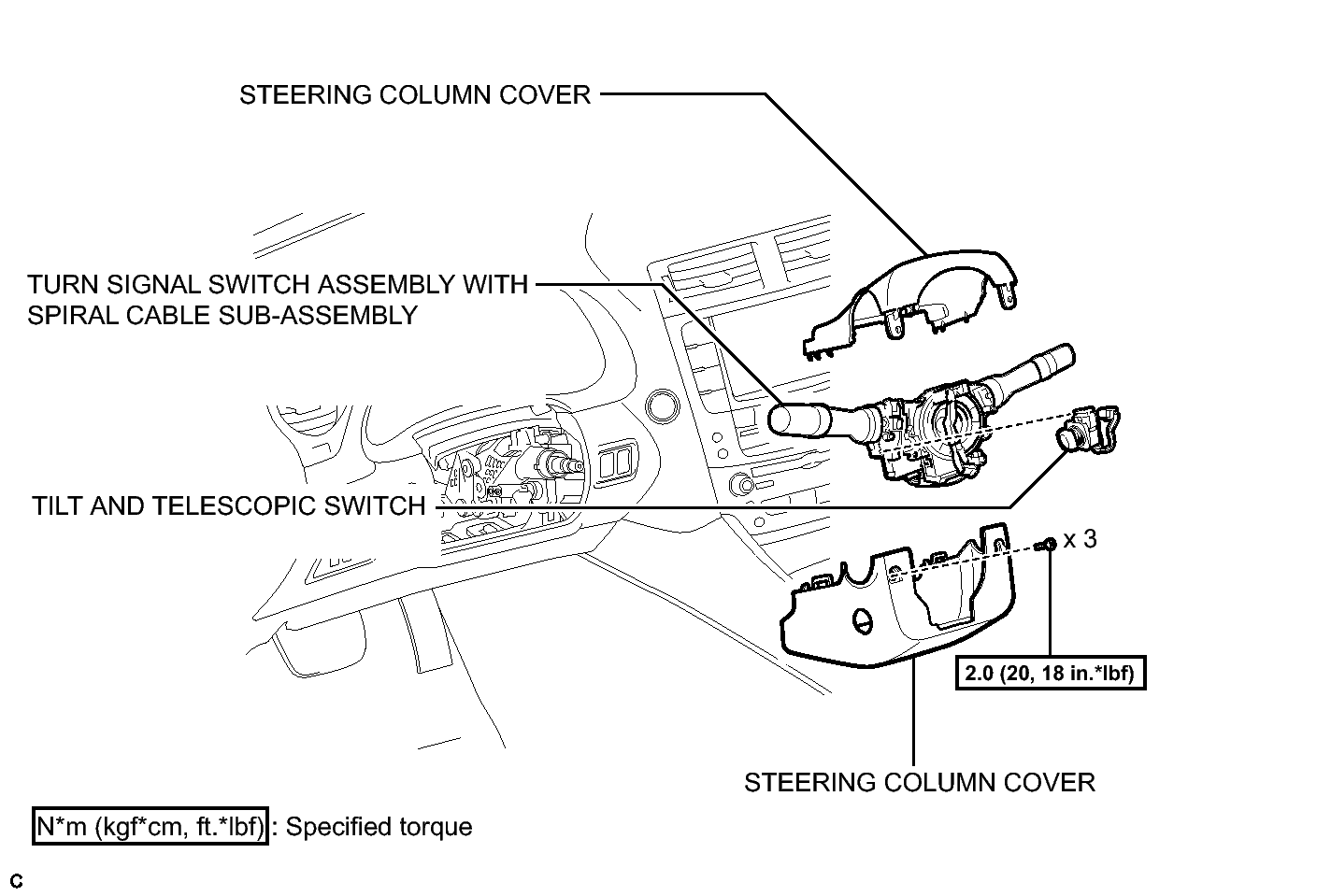

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

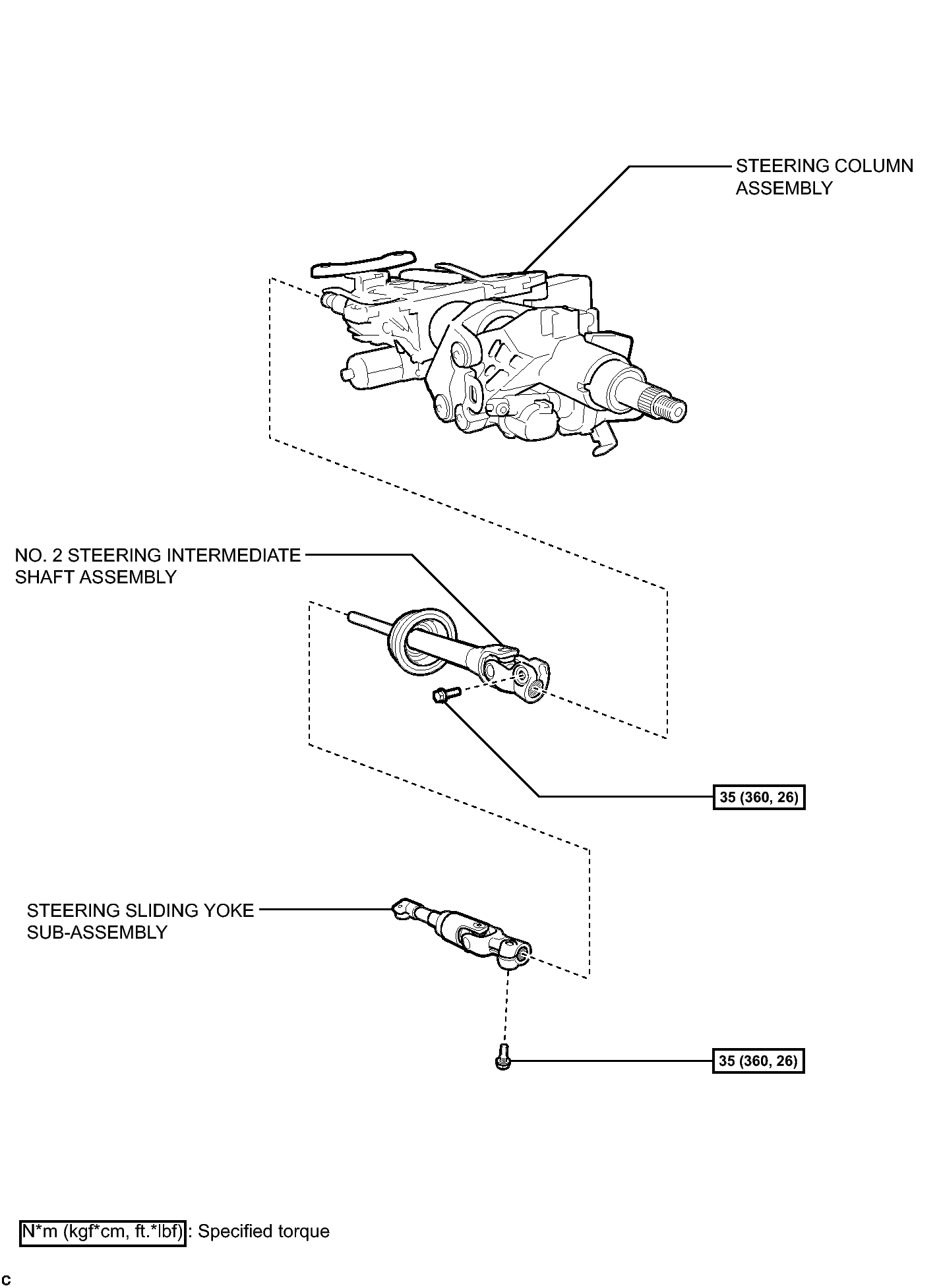

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

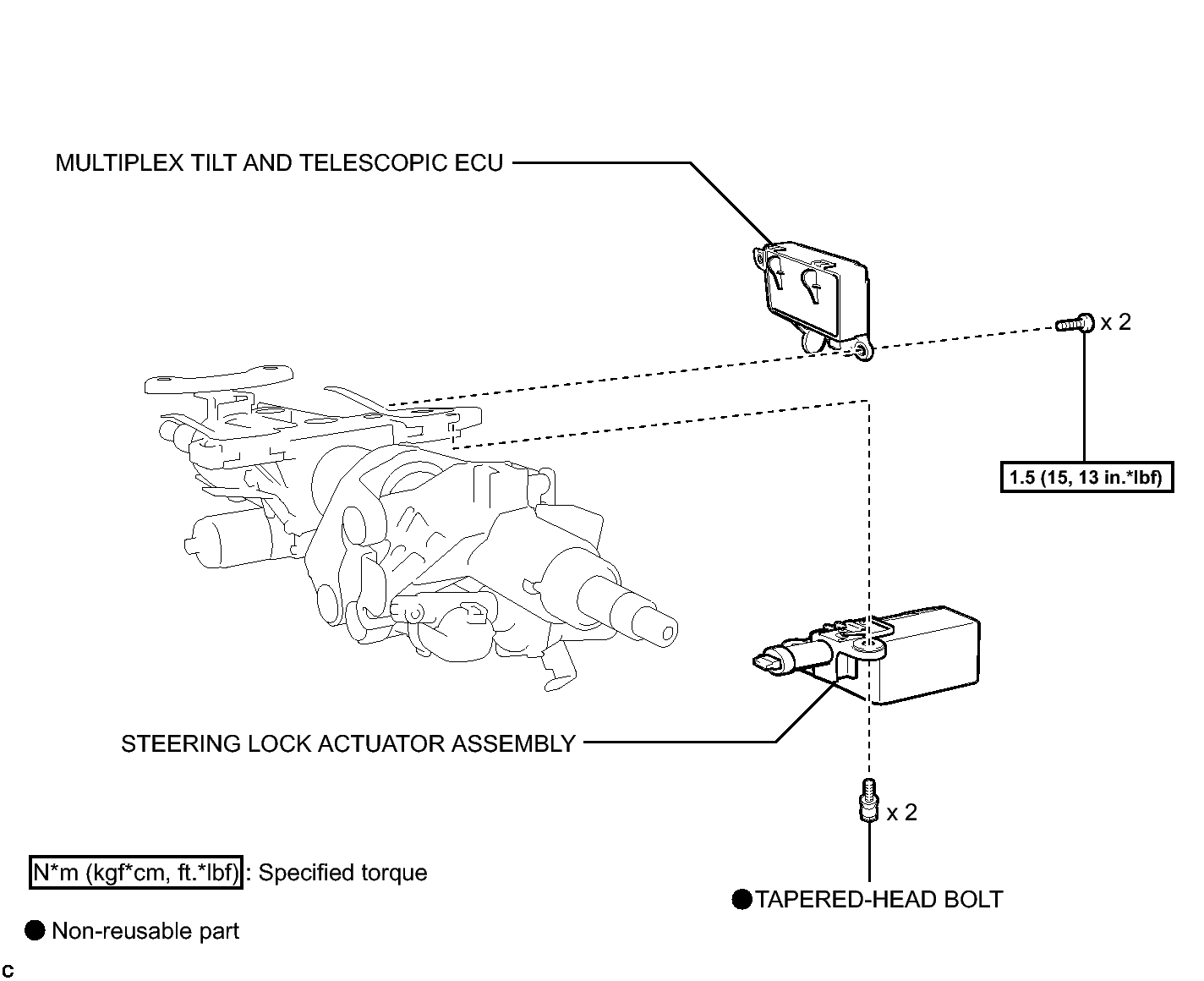

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
