Steering Column Assembly: Disassembly: Disassembly

REMOVE STEERING LOCK ACTUATOR ASSEMBLY
1. Using a center punch, mark the center of the 2 tapered-head bolts.
2. Using a 3 to 4 mm (0.118 to 0.157 in.) diameter drill bit, drill a hole in each tapered-head bolt.
3. Using a screw extractor, remove each tapered-head bolt and steering lock actuator assembly from the steering column assembly.

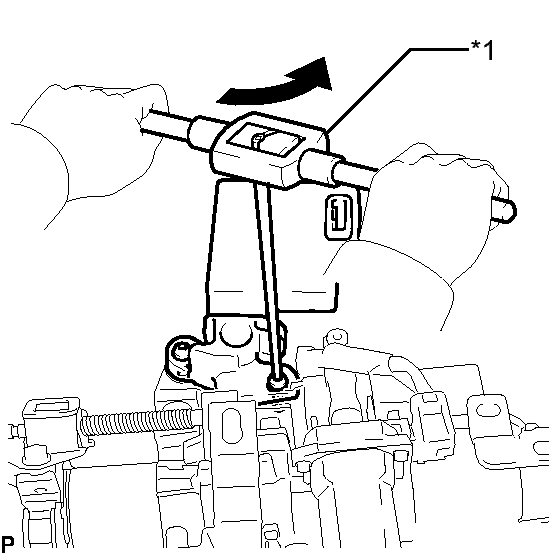

  Fig 1: Identifying Tapered-Head Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Screw Extractor
REMOVE MULTIPLEX TILT AND TELESCOPIC ECU See step 3
