Steering Wheel: Components: Illustration

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (1 Of 4)
GTY255655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

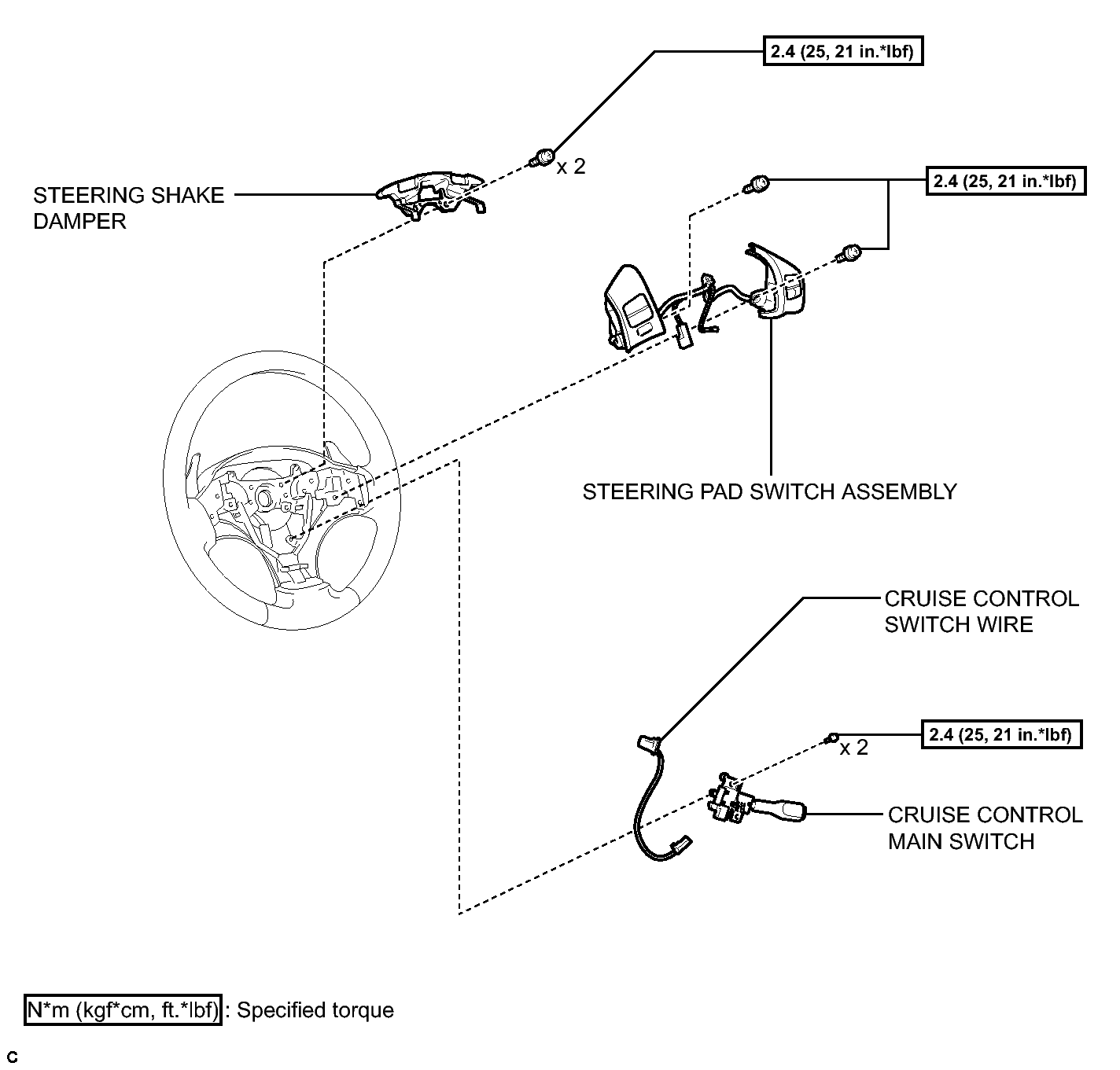

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (2 Of 4)
GTY281322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

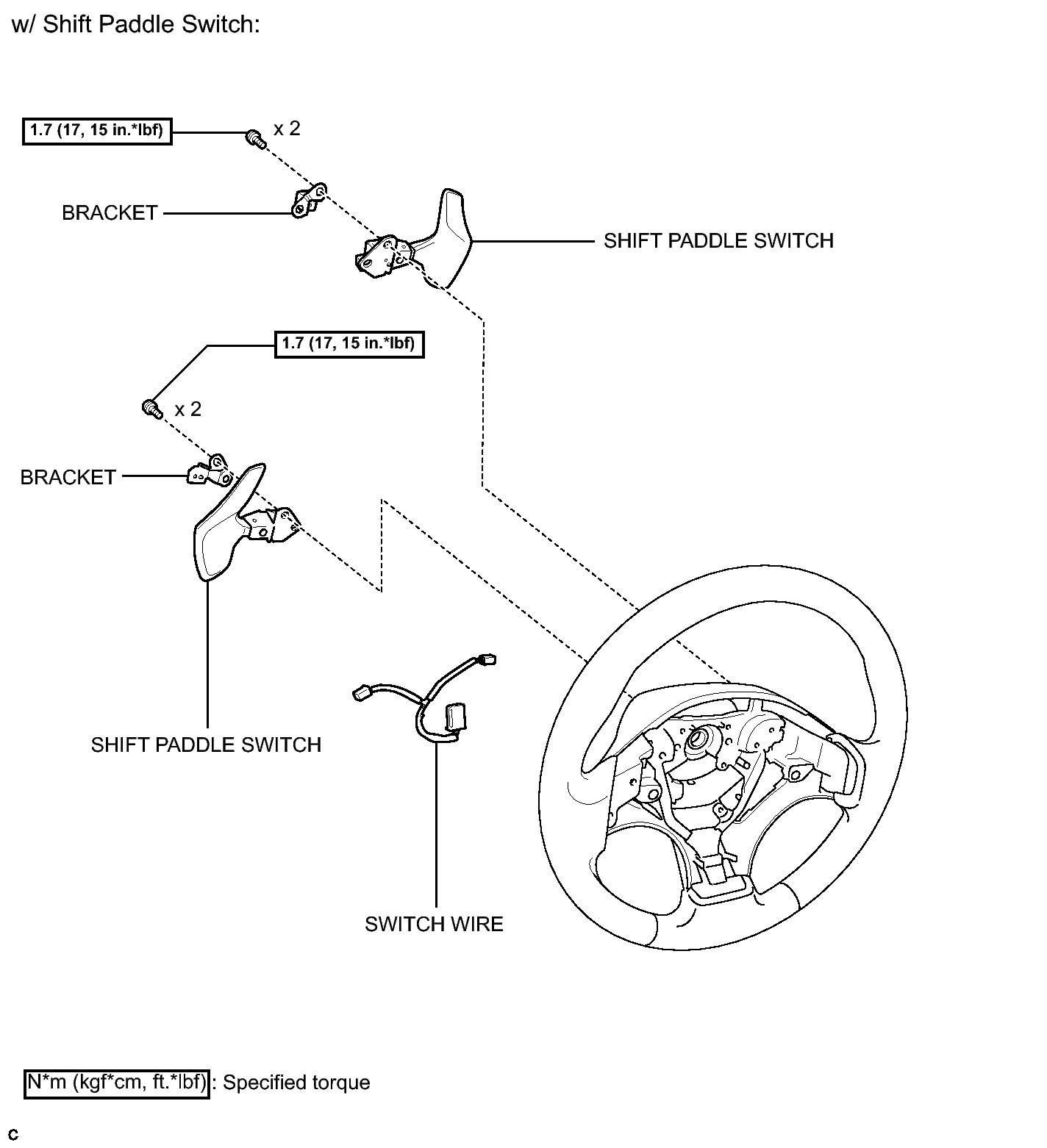

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (3 Of 4)
GTY256707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

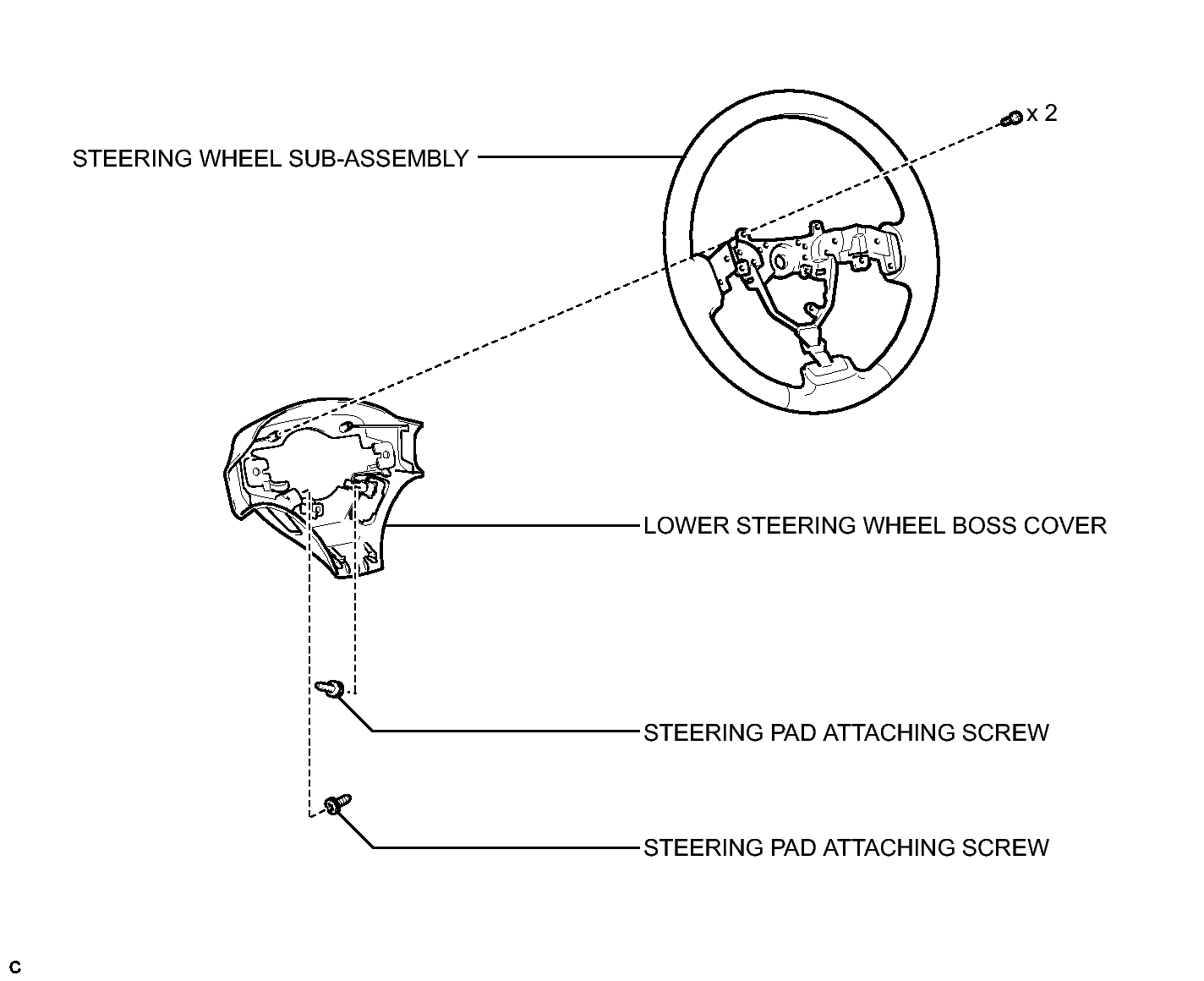

Fig 1: Identifying Steering Wheel Replacement Components (4 Of 4)
GTY271688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
