Skid Control Buzzer: Inspection: Inspection
- INSPECT SKID CONTROL BUZZER ASSEMBLY
- Connect a negative (-) lead from the battery to terminal 1 of the skid control buzzer and a positive (+) lead to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
OK
Skid control buzzer sounds.
HINT:
If the value is not as specified, replace the skid control buzzer.

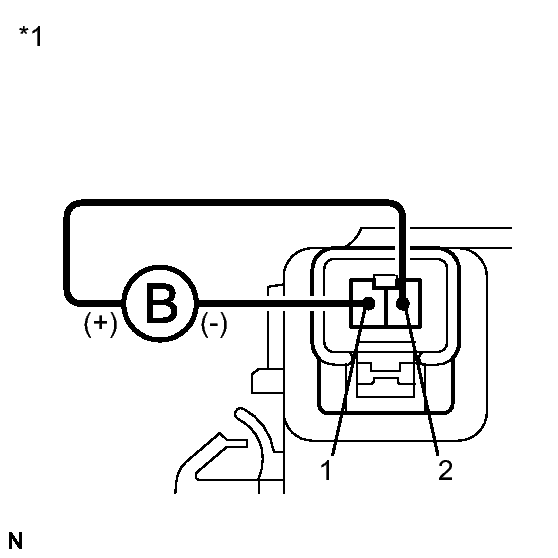

TEXT IN ILLUSTRATION*1 Component without harness connected
(Skid Control Buzzer)
- Connect a negative (-) lead from the battery to terminal 1 of the skid control buzzer and a positive (+) lead to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
