VSC Off Switch: Inspection: Inspection

INSPECT VSC OFF SWITCH

Disconnect the VSC OFF switch connector.

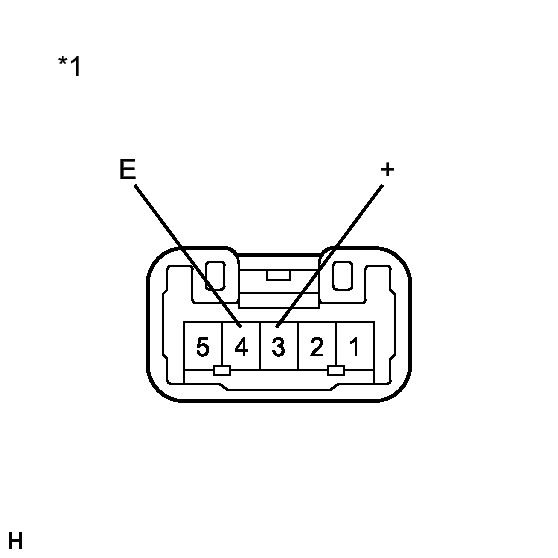

Fig 1: VSC Off Switch Connector End View
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
3 (+) - 4 (E)	Switch is pushed in	Below 25 Ω
3 (+) - 4 (E)	Switch is not pushed in	10 kΩ or higher

TEXT IN ILLUSTRATION

*1	Component without harness connected (VSC OFF Switch)

If the value is not as specified, replace the VSC OFF switch.
