Power Source Control Ecu: Installation: Installation

INSTALL POWER SOURCE CONTROL ECU
1. Connect the connector.

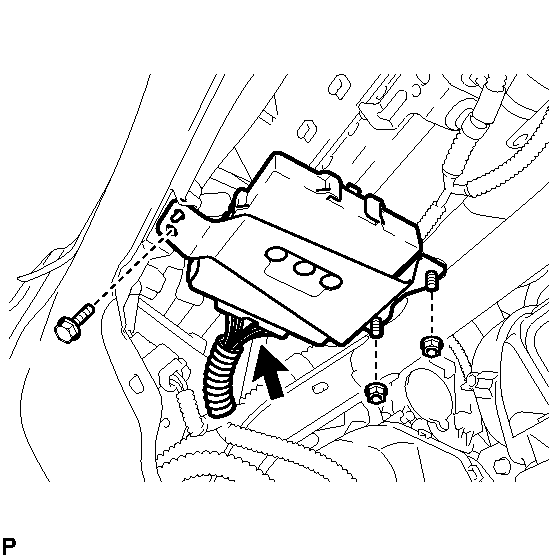

  Fig 1: Identifying Remove Power Source Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the power source control ECU with the bolt and 2 nuts.
  Bolt

  Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)

  Nut

  Torque: 13 N*m (126 kgf*cm, 9 ft.*lbf)
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to INSTALLATION - Step 15
INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 17
INSTALL INSTRUMENT SIDE PANEL RH . Refer to INSTALLATION - Step 18
INSTALL FRONT DOOR OPENING TRIM COVER RH
HINT:

Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 15 .
INSTALL DOOR SCUFF PLATE ASSEMBLY RH
HINT:

Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 16 .
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
