Precautions For Correct Repair

PRECAUTIONS FOR CORRECT REPAIR

a. REMOVAL OF ADJACENT COMPONENTS

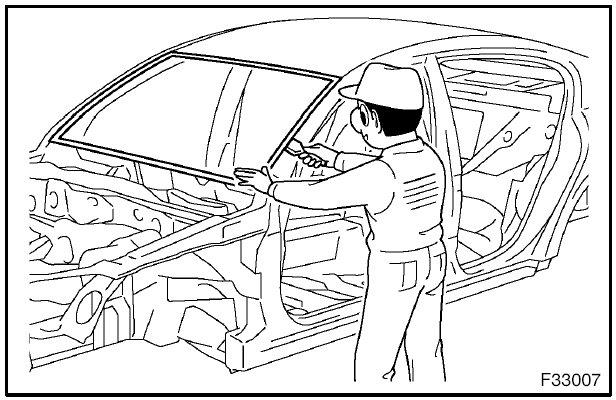

1. When removing adjacent components, apply protective tape to the surrounding body and your tools to prevent damage.

NOTICE: If the paint film is damaged, make sure to refinish the paint.

b. ANTI-RUST TREATMENT BEFORE WELDING

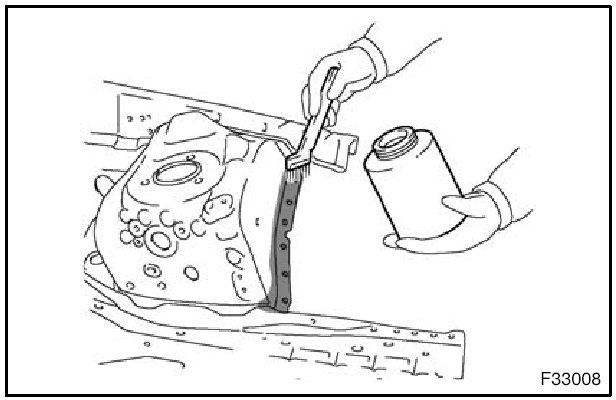

1. Apply welding primer to the contact surfaces of the welding areas to protect them from rust.

NOTICE: Do not apply welding primer outside of the contact surfaces.

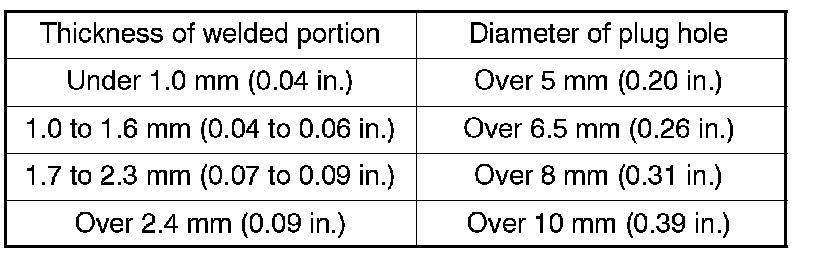

c. MAKING HOLES FOR PLUG WELDING

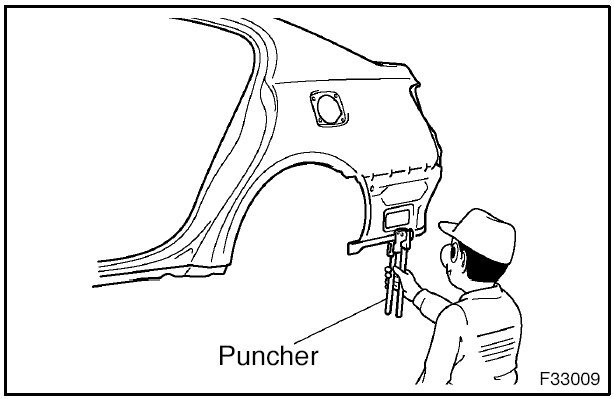

1. For areas where a spot welder cannot be used, use a puncher or drill to make holes for plug welding.







d. WELDING PRECAUTIONS







1. The number of welding spots should be as follows.

Spot weld: 1.3 X No. of manufacturer's spots

Plug weld: More than No. of manufacturer's plugs

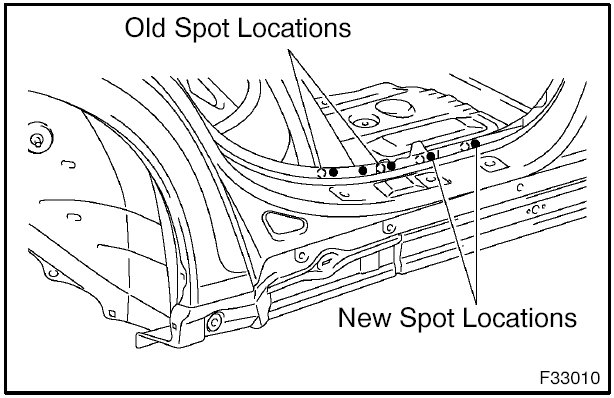

2. Spot weld locations
Avoid welding over previously welded areas.
