Removal

4GR-FSE ENGINE CONTROL: INTEGRATION RELAY: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE ENGINE ROOM SIDE COVER LH Removal

3. REMOVE INTEGRATION NO.1 RELAY

(a) Remove the No. 2 relay block cover.

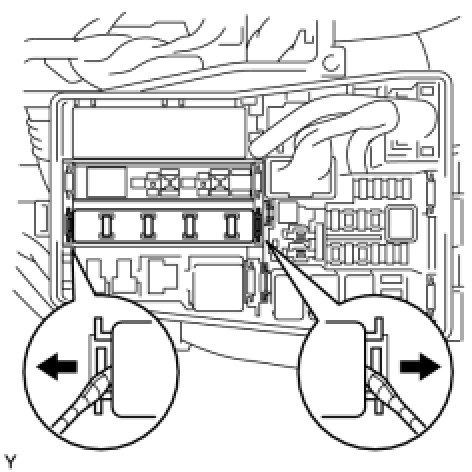

(b) Using a screwdriver, detach the 2 claws and disconnect the integration relay from the engine room No. 2 relay block.





HINT
Tape the screwdriver tip before use.

(c) Disconnect the 3 connectors.
