Service Data

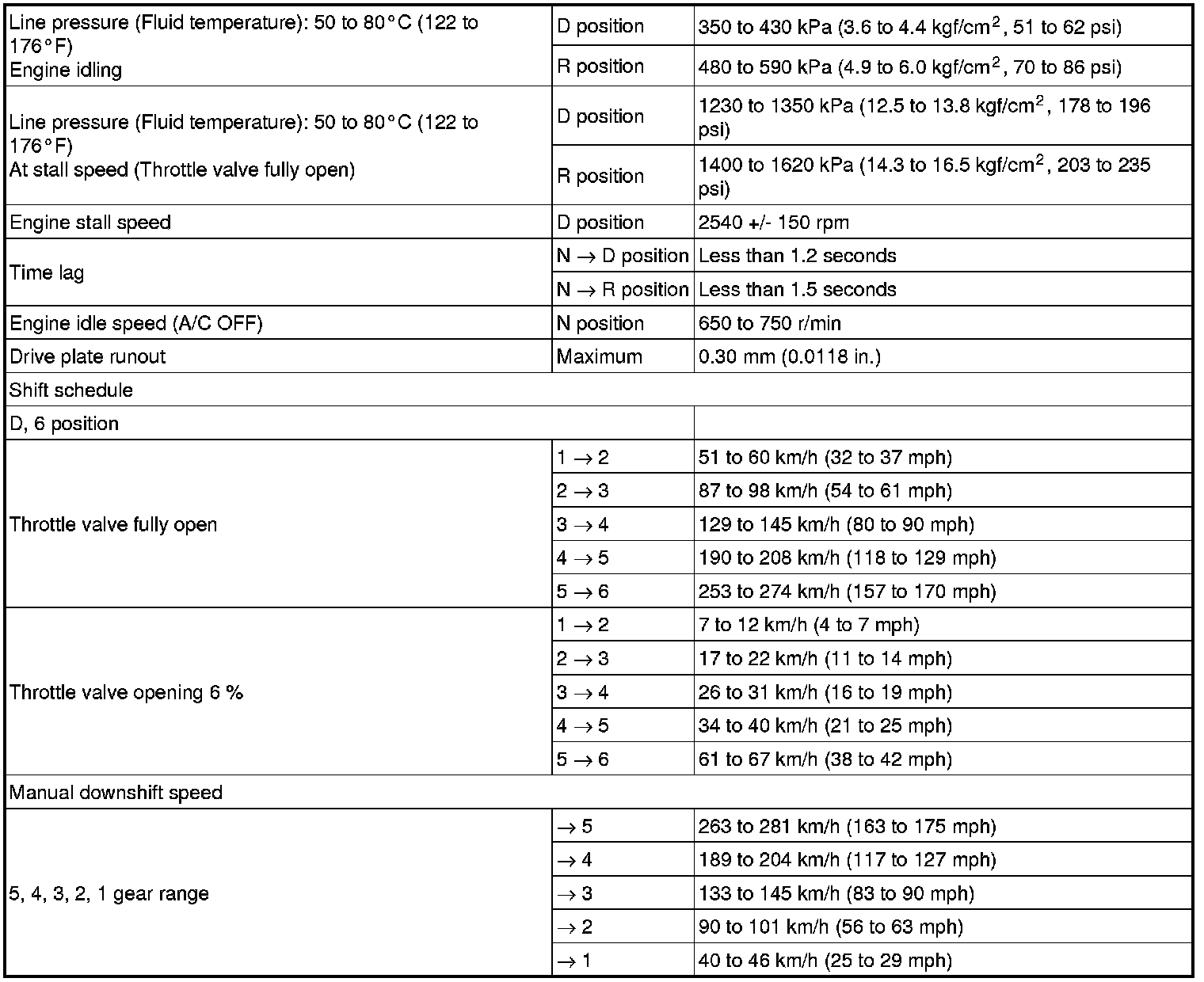

SPECIFICATIONS: A960E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA
NOTICE:
* All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
* If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.

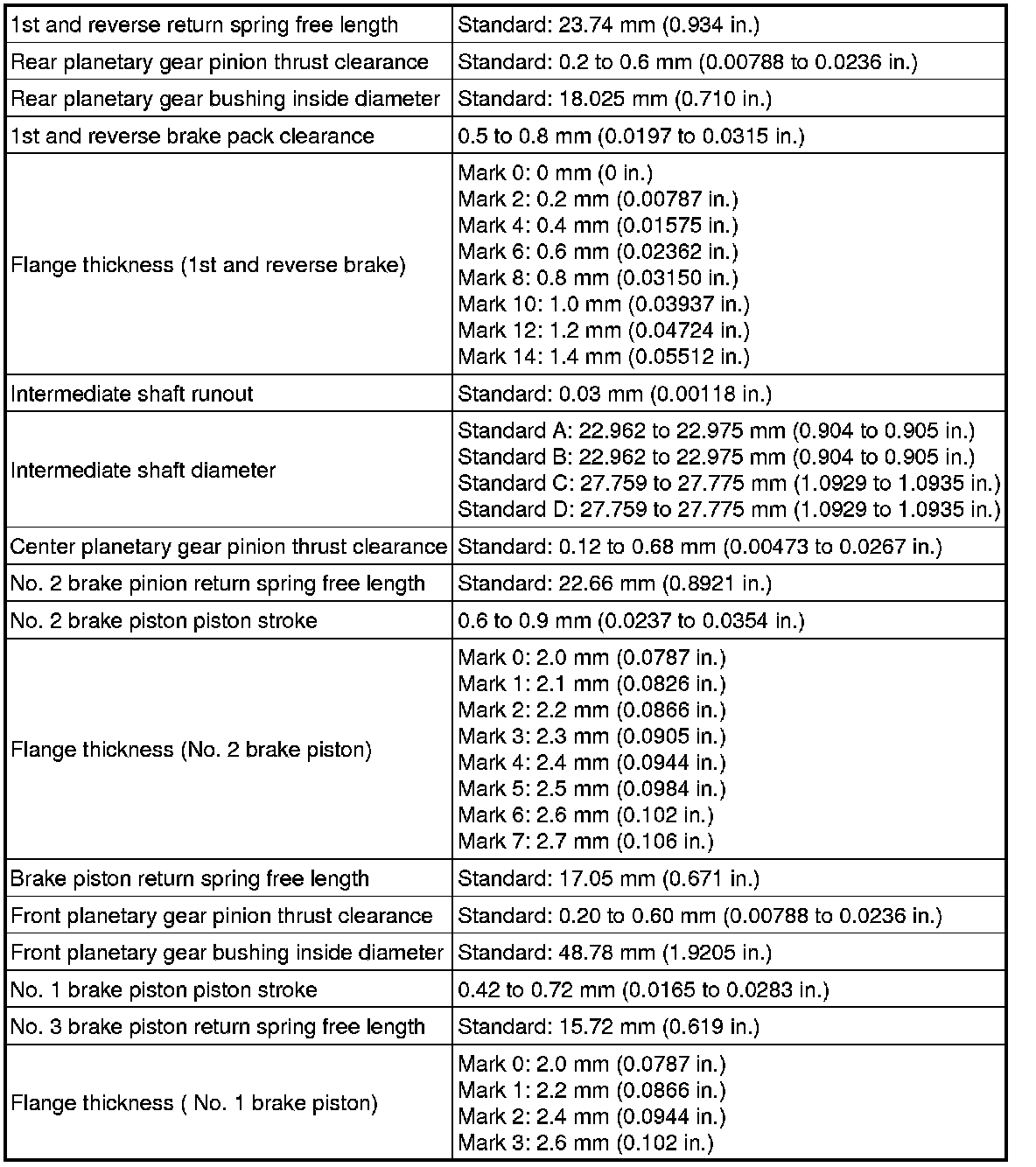

Automatic Transmission Unit:

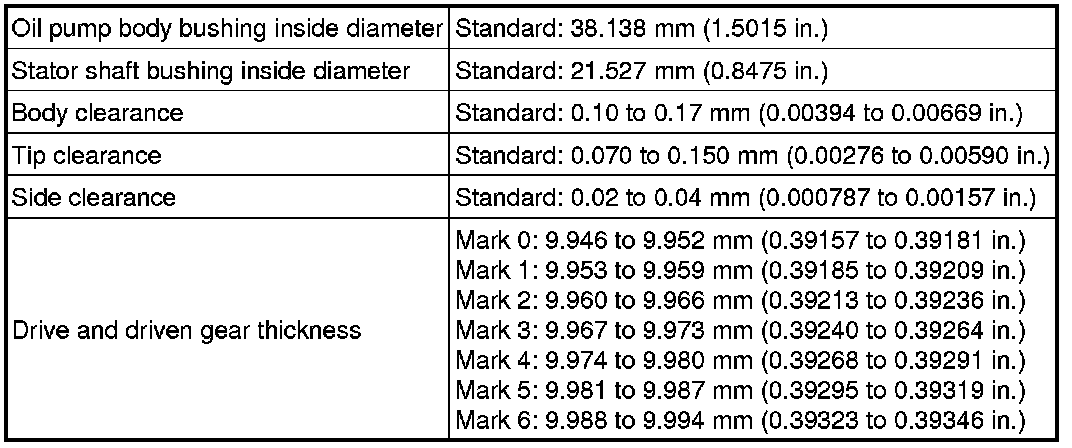

Oil Pump:

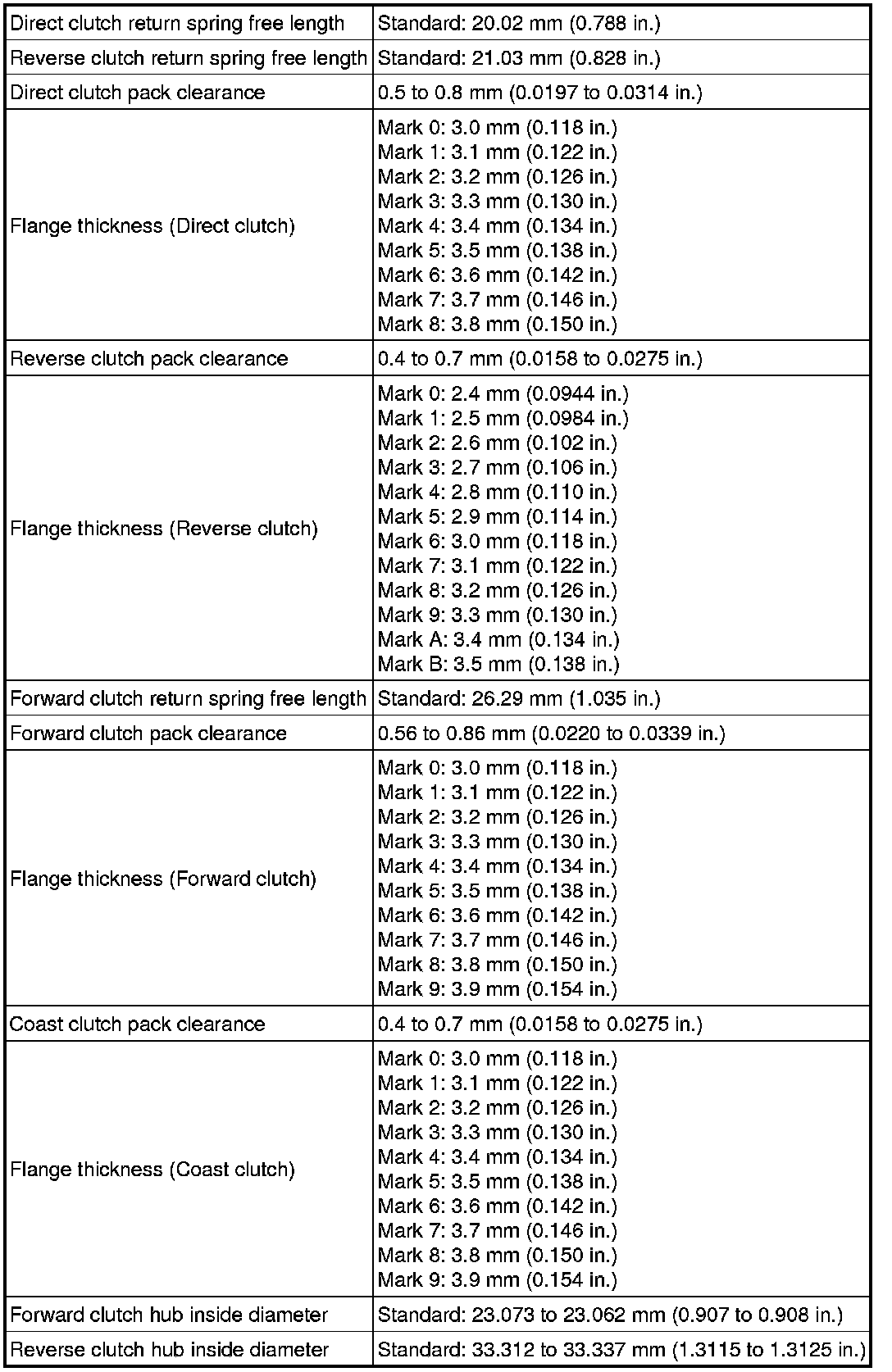

Clutch Drum And Input Shaft:

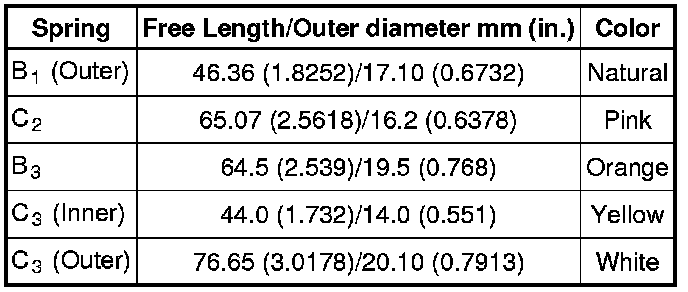

Accumulator:

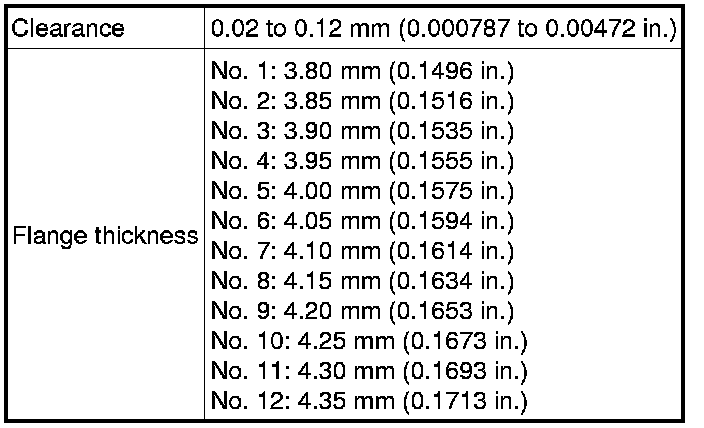

Output Shaft Bearing:
