Service Data
SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

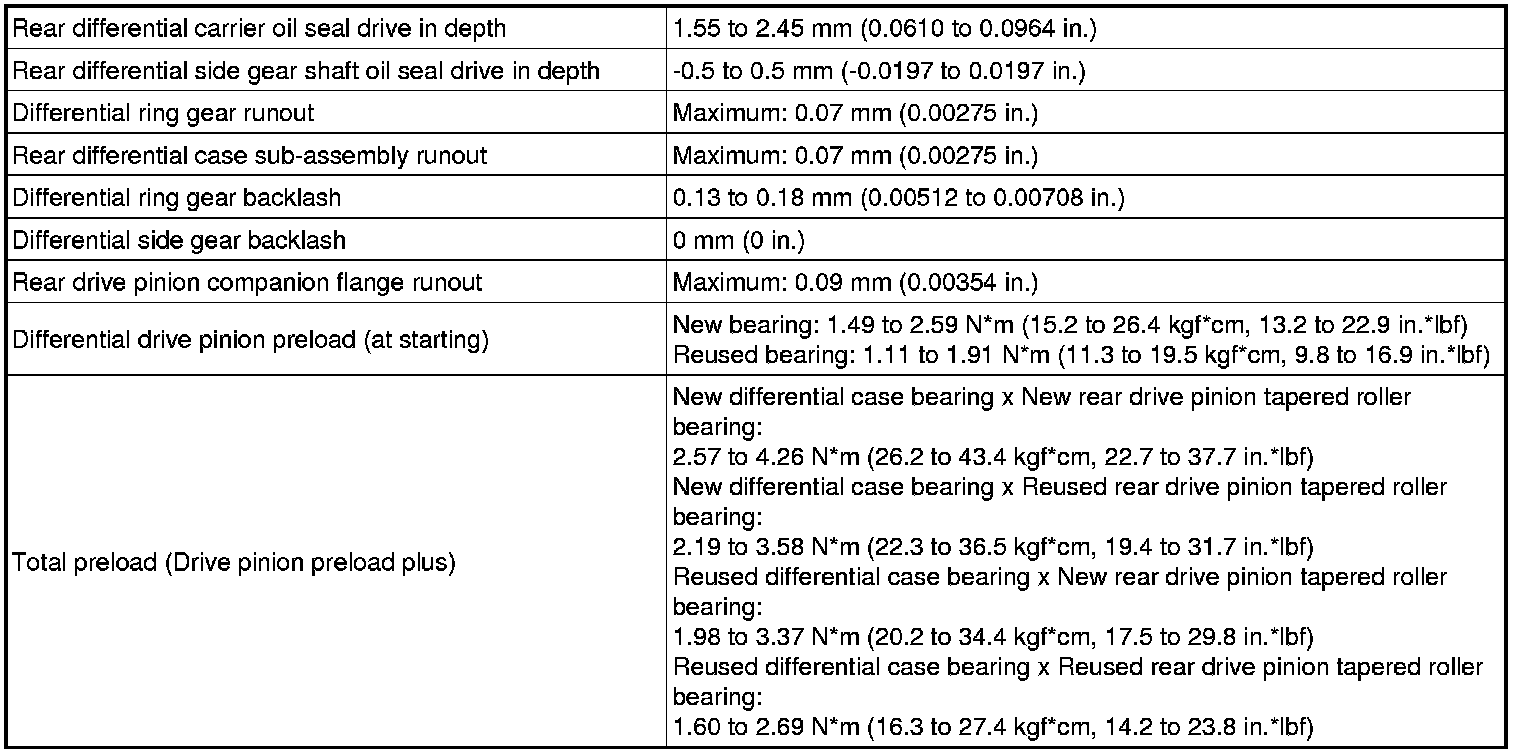

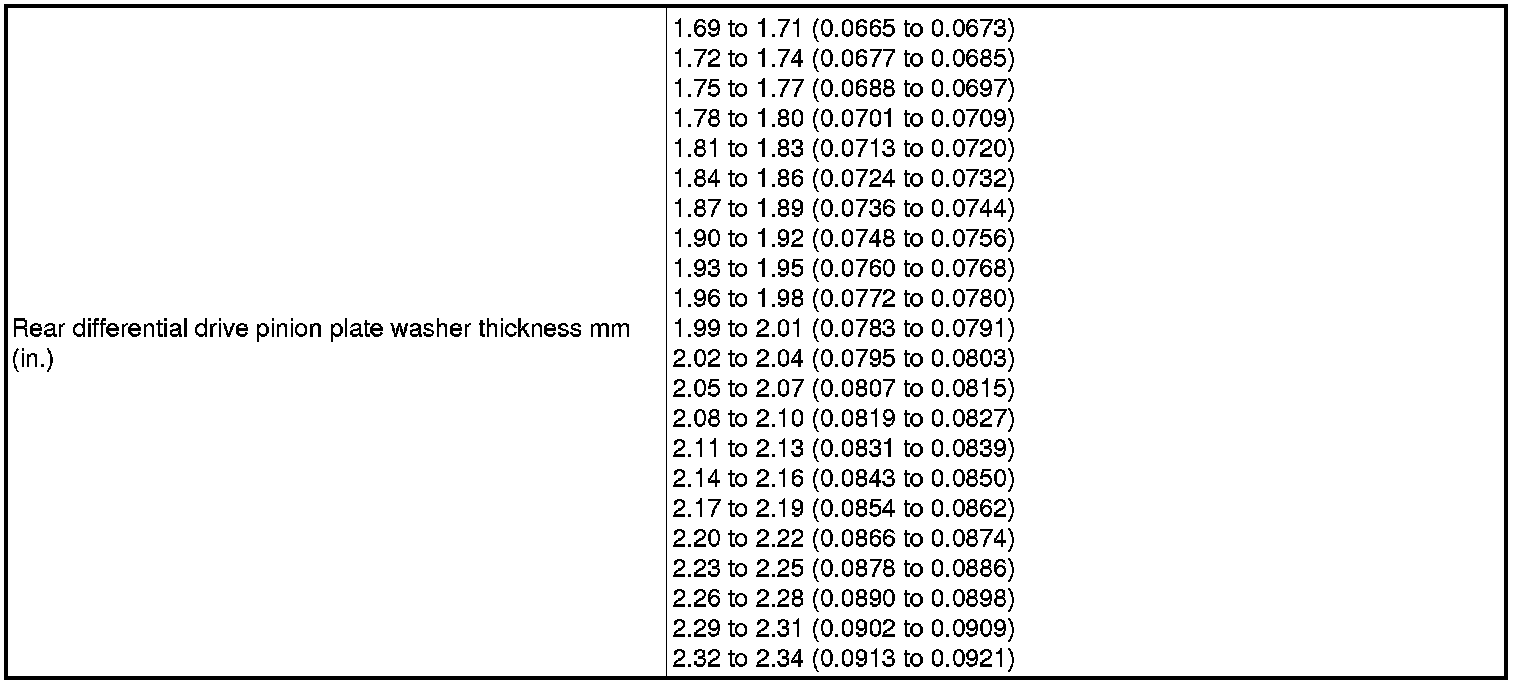

Differential (for 2GR-FSE)

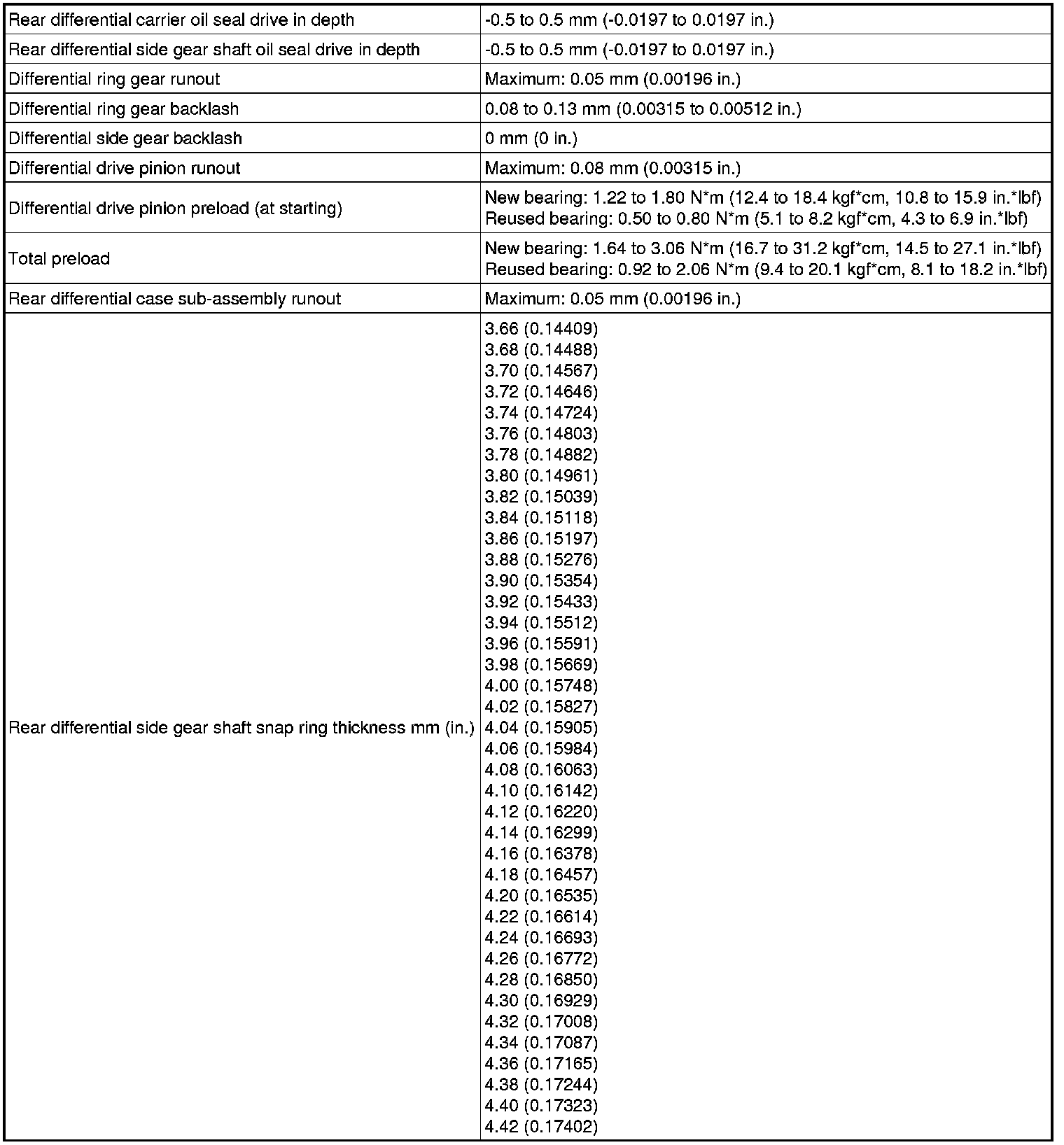

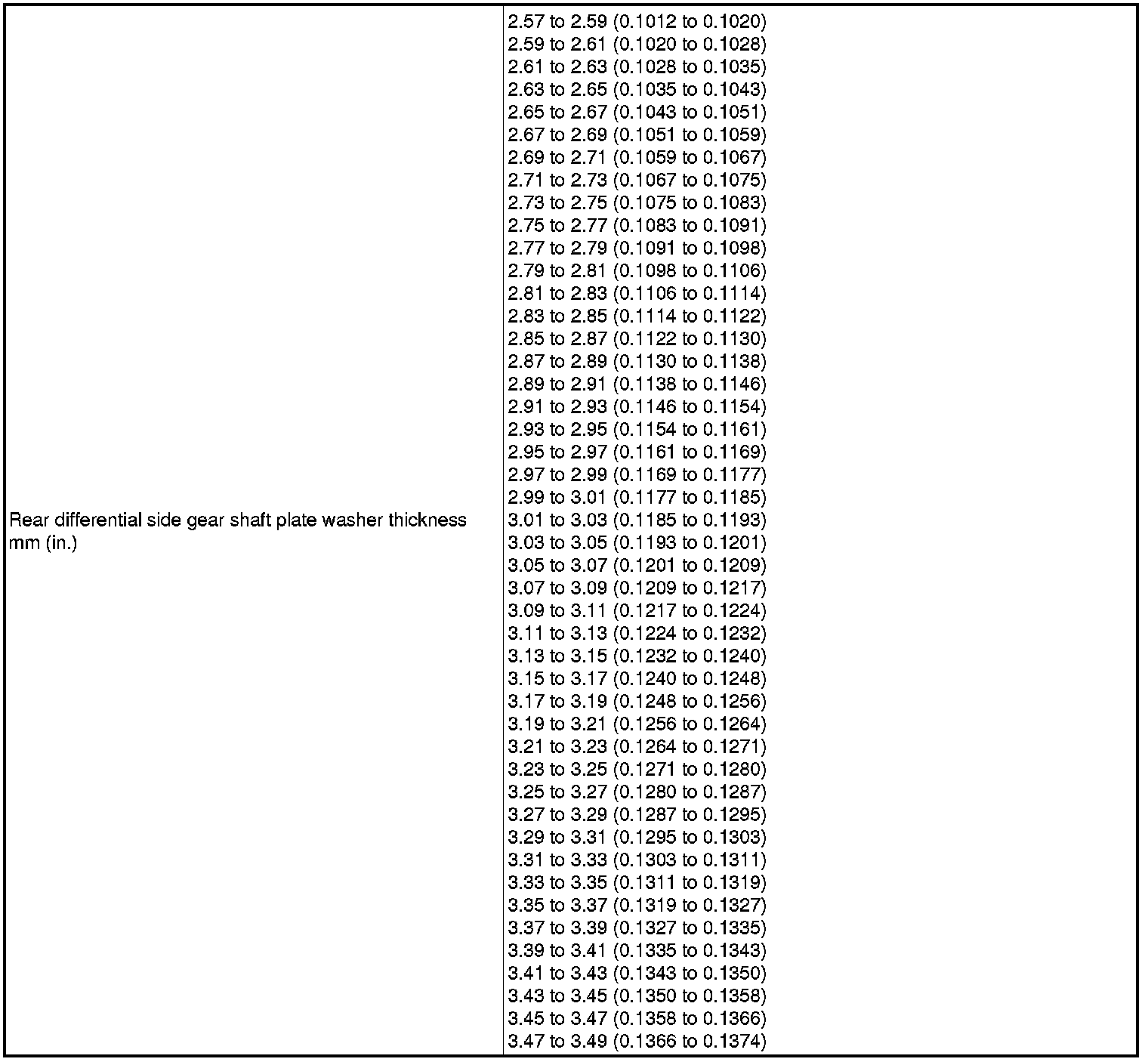

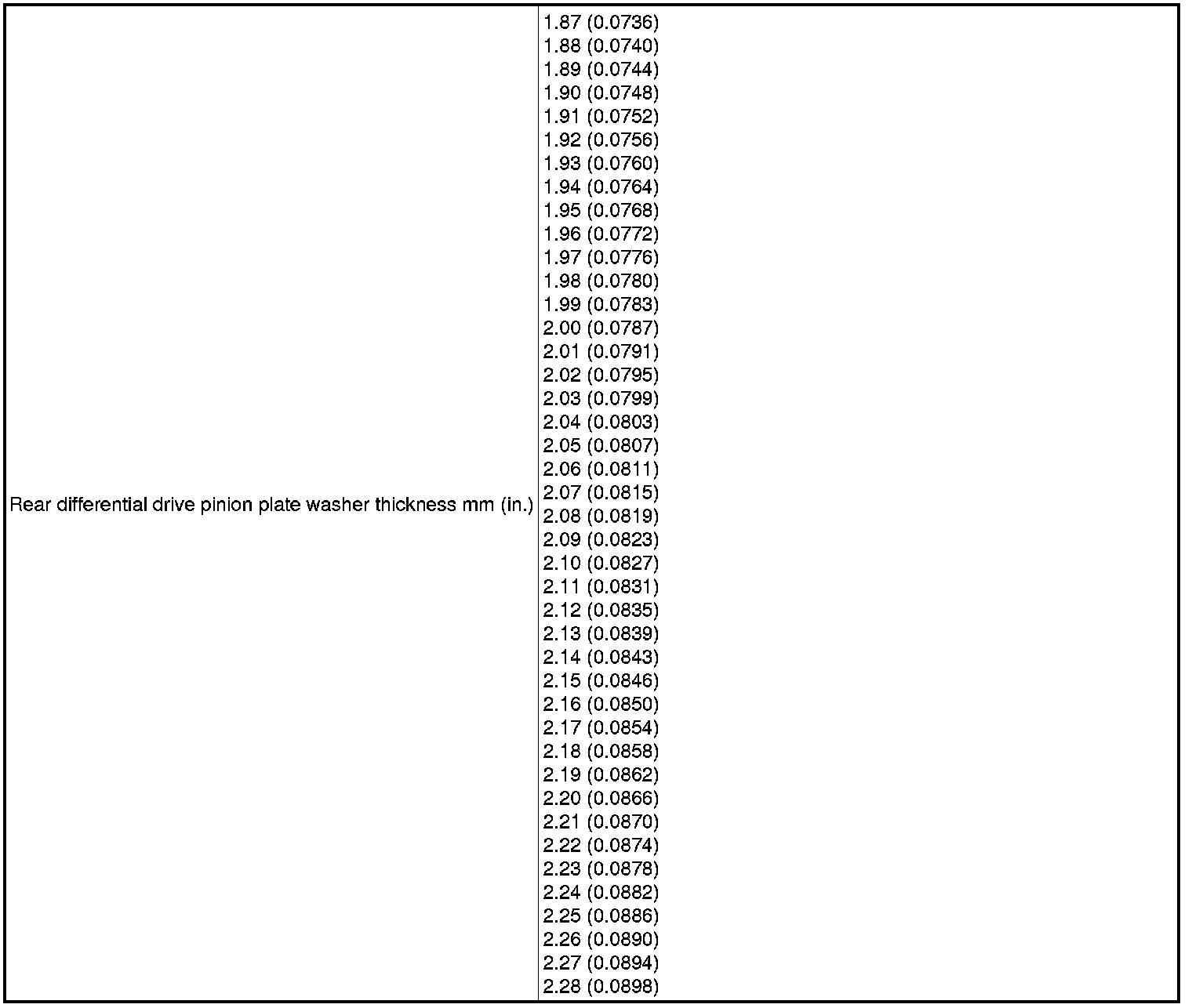

Differential (for 4GR-FSE)
