Reassembly

AIR CONDITIONING: AIR CONDITIONING PANEL: REASSEMBLY

1. INSTALL NO. 1 CONTROL KNOB SUB-ASSEMBLY

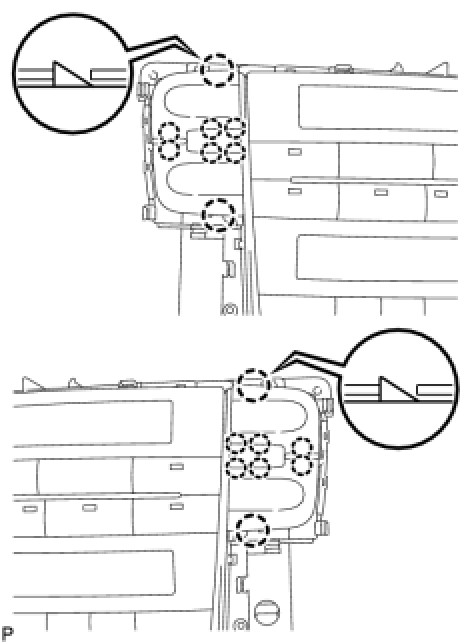

(a) Engage the 16 claws, and install the No. 1 control knob sub-assembly.





2. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL

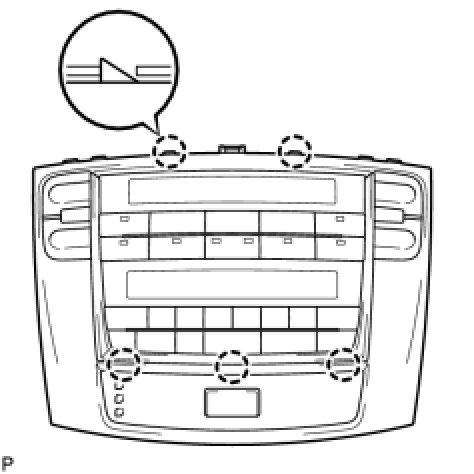

(a) Engage the 5 claws.

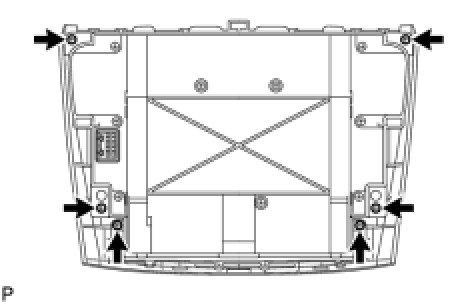

(b) Install the integration control panel with 6 screws.
