Transmission Position Sensor/Switch: Locations

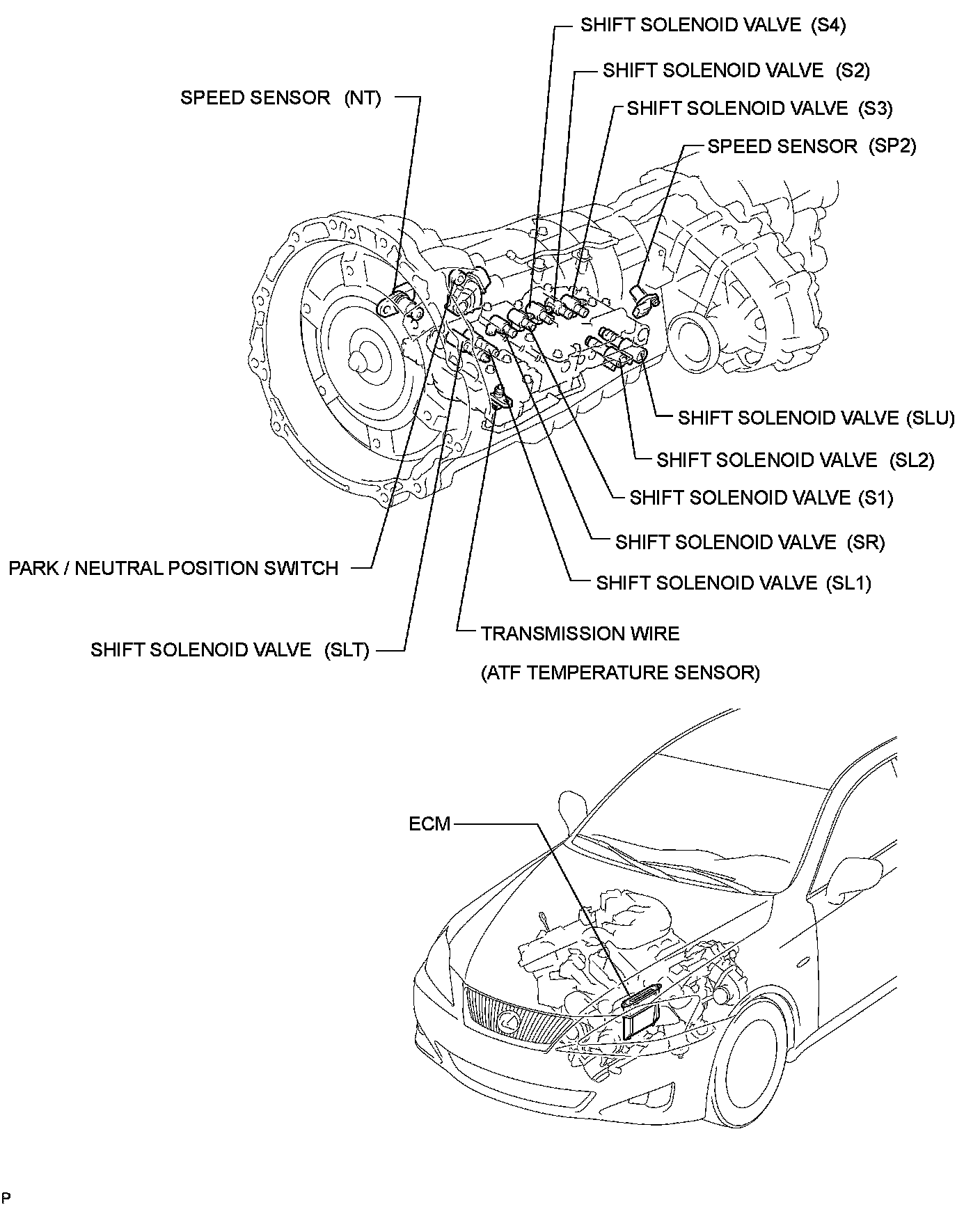

A760H AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM (for 2GR-FSE): PARTS LOCATION
