Brake Actuator: Installation: Installation

INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY
1. Install the 3 brake actuator bolt case cushions and 3 brake actuator bolt collars to the brake actuator bracket assembly.

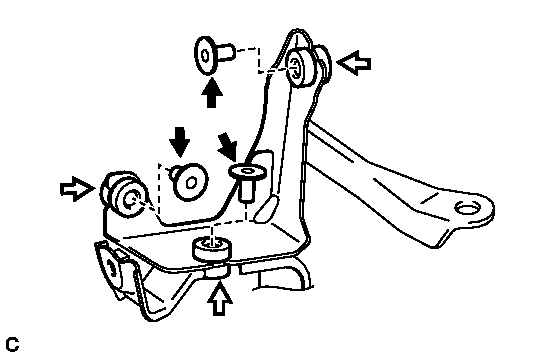

  Fig 1: Identifying Brake Actuator Bracket Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BRAKE ACTUATOR ASSEMBLY
1. Install the brake actuator assembly to the brake actuator bracket assembly with the 3 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
  NOTE:
  - Do not remove the hole plugs before installing a new brake actuator assembly because the brake actuator is filled with brake fluid.
  - Do not carry the brake actuator assembly by the connector.
  - Tighten the 3 bolts in the order shown in the illustration.

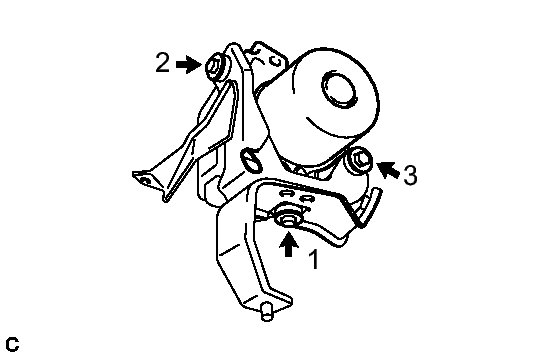

  Fig 2: Identifying Tightening Sequence Of Brake Actuator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BRAKE ACTUATOR ASSEMBLY WITH BRACKET
1. Temporarily install the brake actuator assembly with bracket.

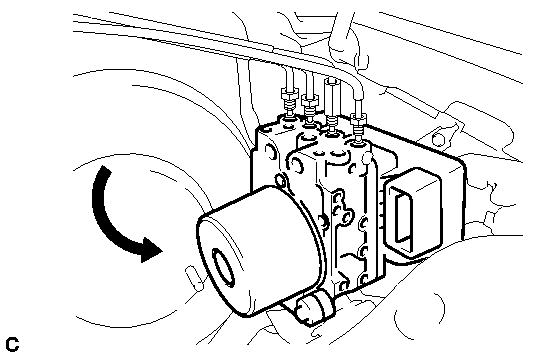

  Fig 3: Installing Brake Actuator Assembly With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the brake actuator with bracket to the body with the 2 bolts and nut.

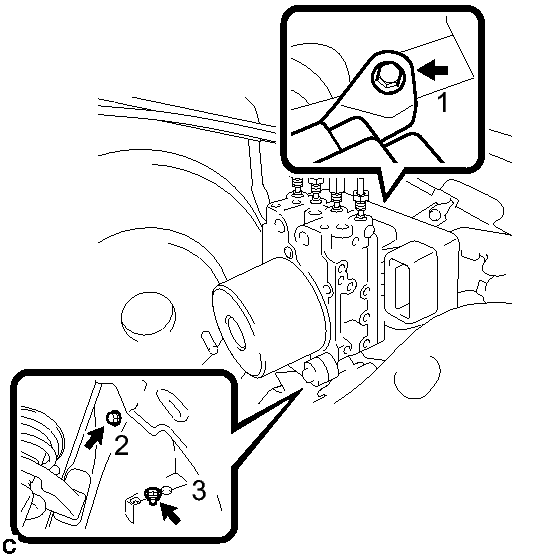

  Fig 4: Identifying Brake Actuator With Bracket, Bolts, & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
  NOTE:
  - Do not damage the brake lines or wire harness.
  - Tighten the 2 bolts and nut in the order shown in the illustration.
3. Install the No. 1 front brake line and No. 1 rear brake line to the clamp.

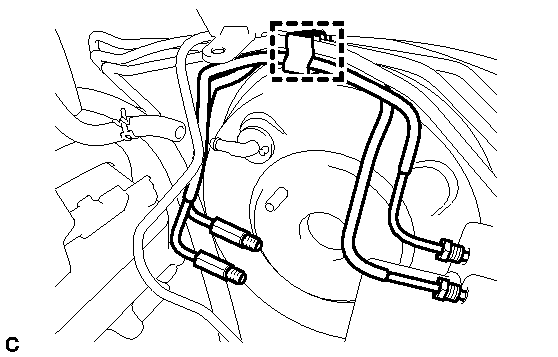

  Fig 5: Identifying Brake Lines & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the vacuum hose and clip to the check valve.

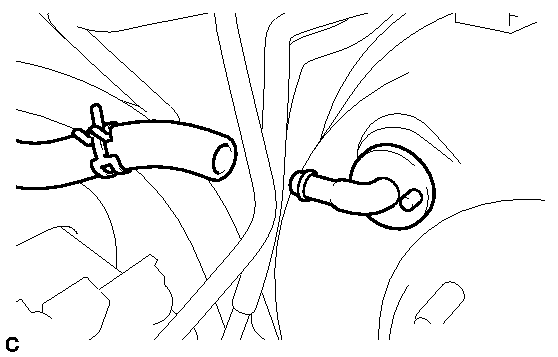

  Fig 6: Identifying Vacuum Hose & Clip At Check Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Temporarily tighten each brake tube to the correct positions of the brake actuator assembly with bracket as shown in the illustration.

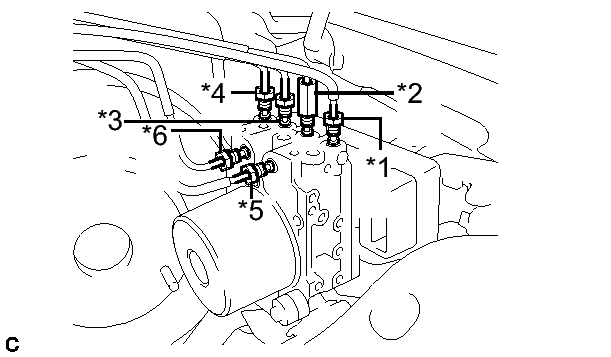

  Fig 7: Identifying Hose Reconnection Locations
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - *1: To Front Wheel Cylinder RH
  - *2: To Front Wheel Cylinder LH
  - *3: To Rear Wheel Cylinder RH
  - *4: To Rear Wheel Cylinder LH
  - *5: From 1st of Master Cylinder
  - *6: From 2nd of Master Cylinder
6. Using a union nut wrench, fully tighten each brake line.
  without a union nut wrench

  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

  with a union nut wrench (10 mm)

  Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)
  NOTE:
  - Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
  - This torque value is effective when the union nut wrench is parallel to the torque wrench.

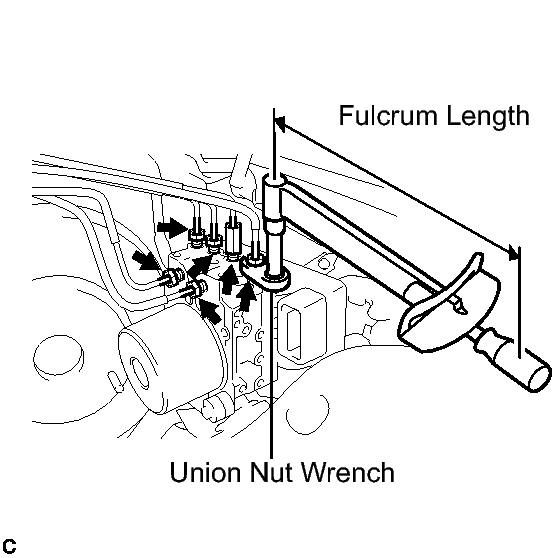

  Fig 8: Identifying Fulcrum Length
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the brake actuator connector.

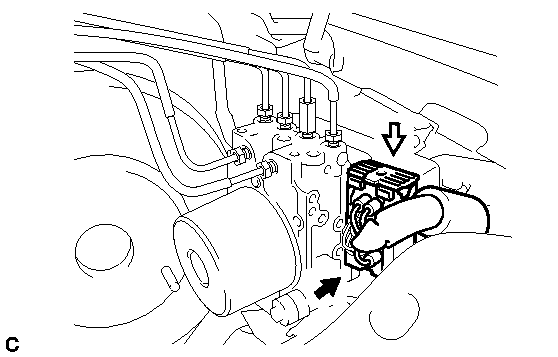

  Fig 9: Connecting Brake Actuator Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Make sure that the actuator connector can be connected smoothly. Do not allow water, oil or dirt to enter.
  - Make sure that the connector is locked securely.
INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY
HINT:

Refer to the instructions for installation of the brake master cylinder sub-assembly. Refer to INSTALLATION .
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD RESERVOIR WITH BRAKE FLUID . Refer to BLEEDING - Step 1
BLEED BRAKE MASTER CYLINDER SUB-ASSEMBLY . Refer to BLEEDING - Step 2
BLEED BRAKE LINE . Refer to BLEEDING - Step 3
BLEED BRAKE ACTUATOR ASSEMBLY . Refer to BLEEDING - Step 4
INSPECT FLUID LEVEL IN RESERVOIR . Refer to BLEEDING - Step 5
INSPECT FOR BRAKE FLUID LEAKAGE
INSTALL FRONT WHEEL
Torque: 103 N*m (1, 050 kgf*cm, 76 ft.*lbf)
PERFORM YAW RATE AND ACCELERATION SENSOR ZERO POINT CALIBRATION
HINT:

Refer to CALIBRATION
INSPECT SENSOR SIGNAL
HINT:

Refer to TEST MODE PROCEDURE
INSPECT ACTUATOR USING TECHSTREAM
HINT:

Refer to ON-VEHICLE INSPECTION
