Rear Speed Sensor: Removal: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR SPEED SENSOR
   1. Disconnect the rear speed sensor connector.

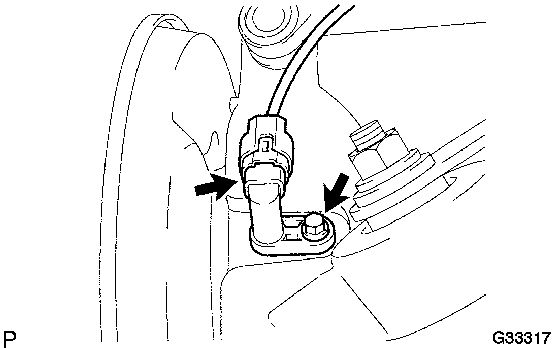

      Fig 1: Identifying Speed Sensor, Connector, & Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the bolt and rear speed sensor.
      NOTE:

      Prevent foreign matter from attaching to the sensor tip.
