Skid Control Buzzer: Components: Illustration

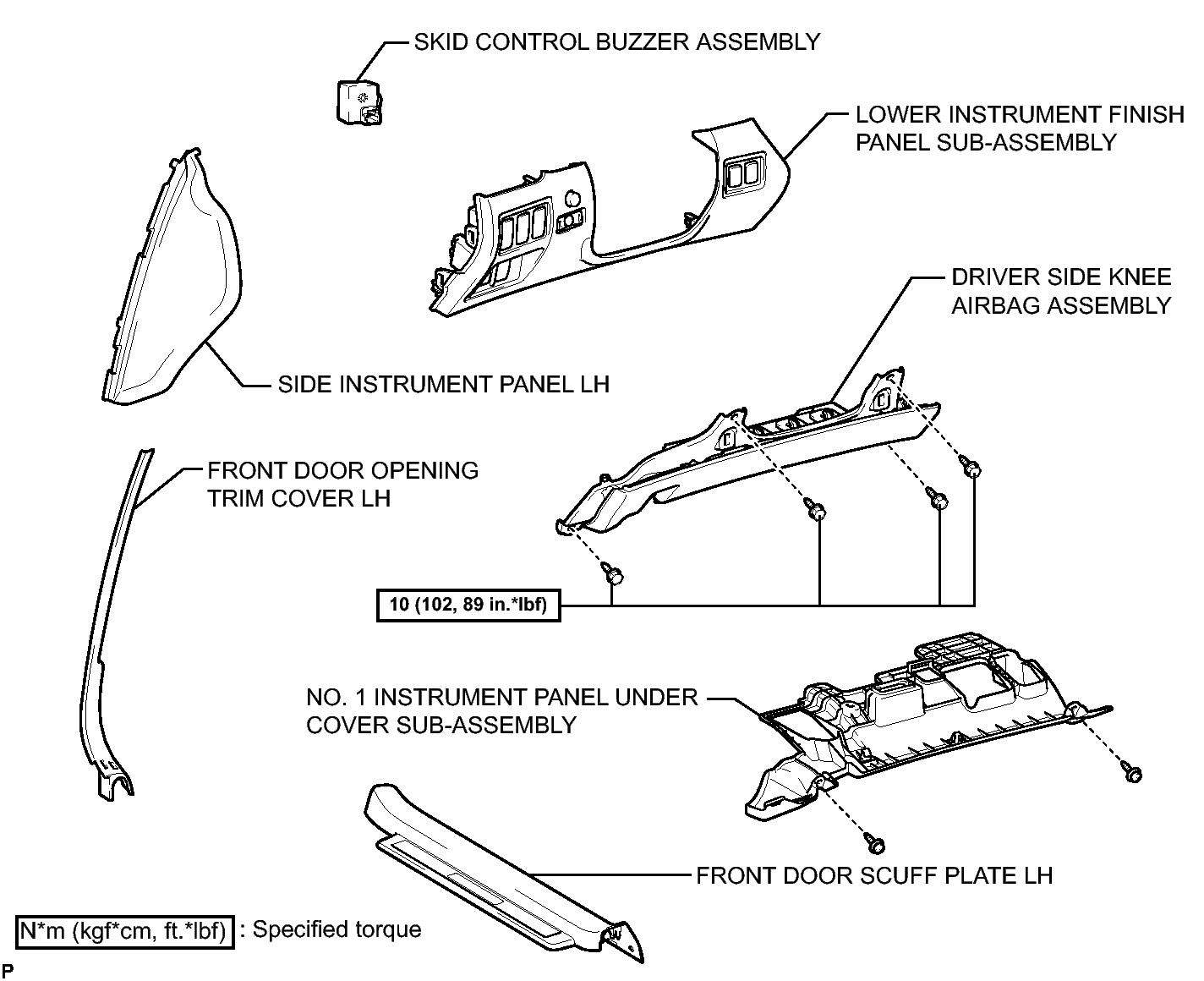

Fig 1: Identifying Skid Control Buzzer Replacement Components With Torque Specifications
GTY112766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
