Cruise Control (2GR-FSE): Notes

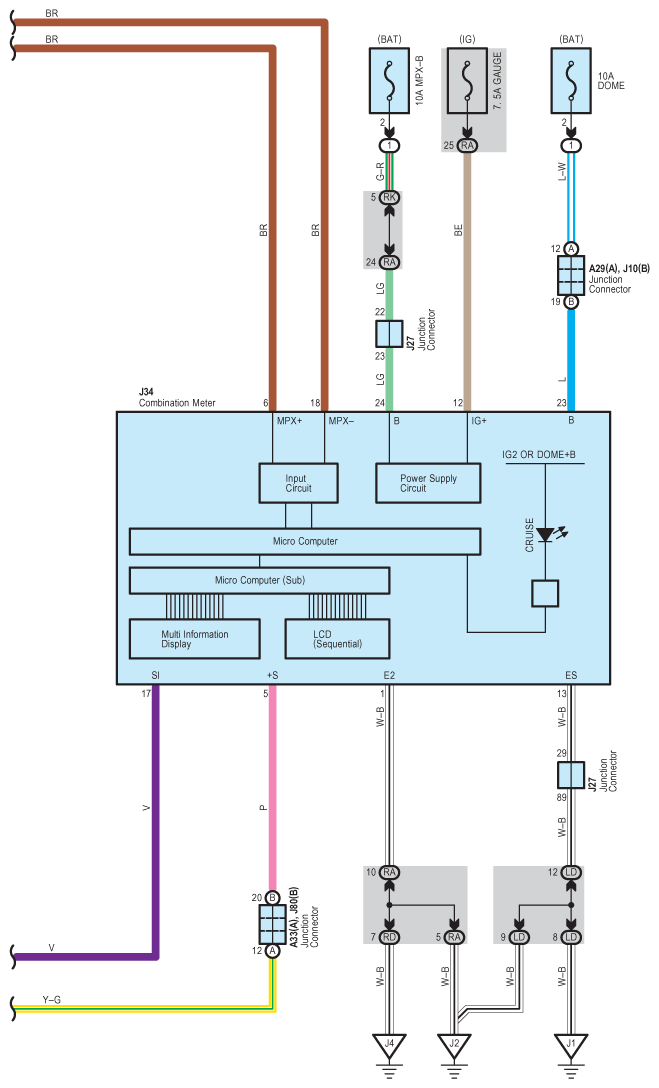

Fig 1: Cruise Control (2GR-FSE) - Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

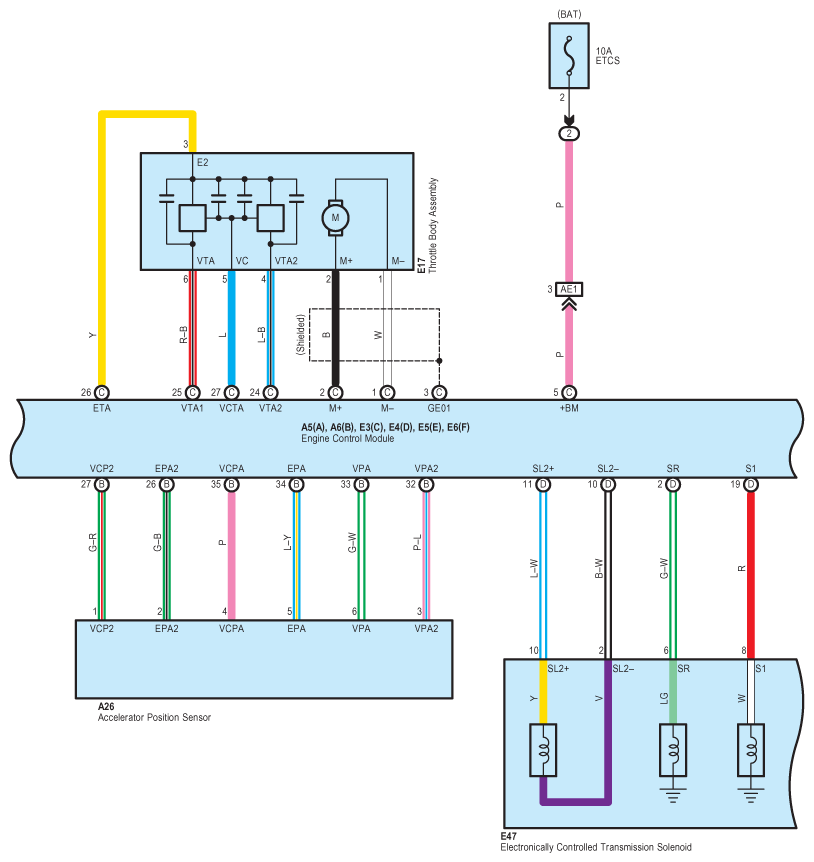

Fig 2: Cruise Control (2GR-FSE) - Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

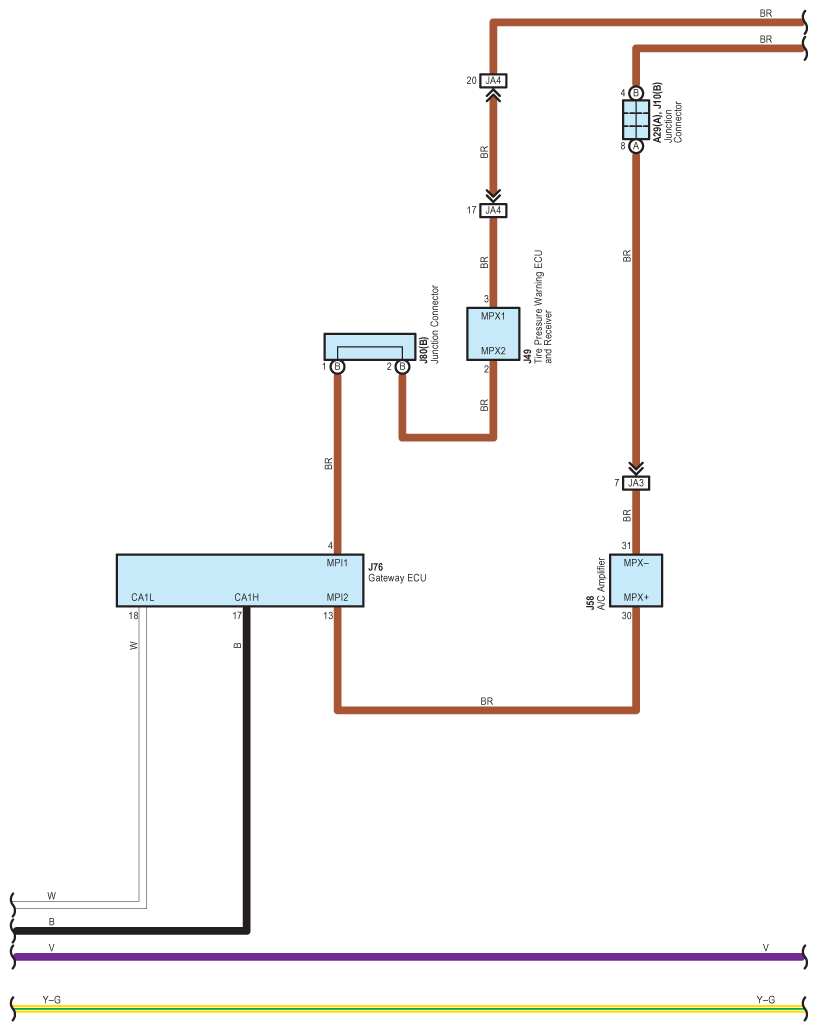

Fig 3: Cruise Control (2GR-FSE) - Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

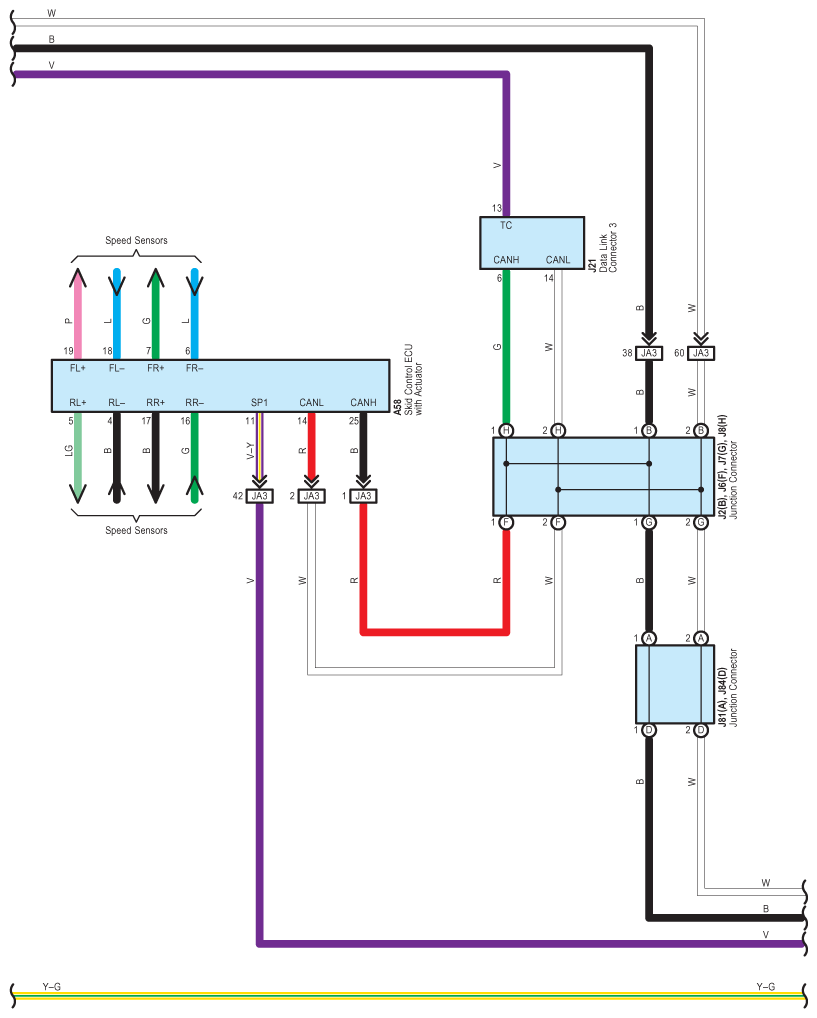

Fig 4: Cruise Control (2GR-FSE) - Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

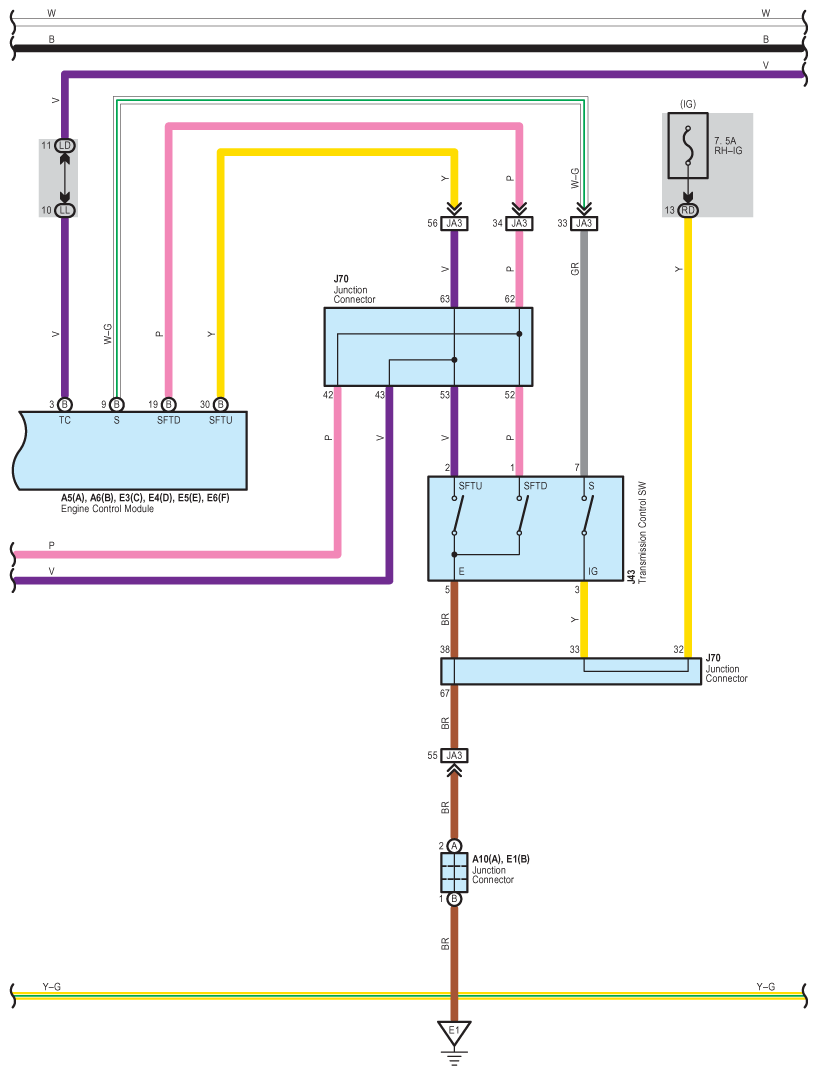

Fig 5: Cruise Control (2GR-FSE) - Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

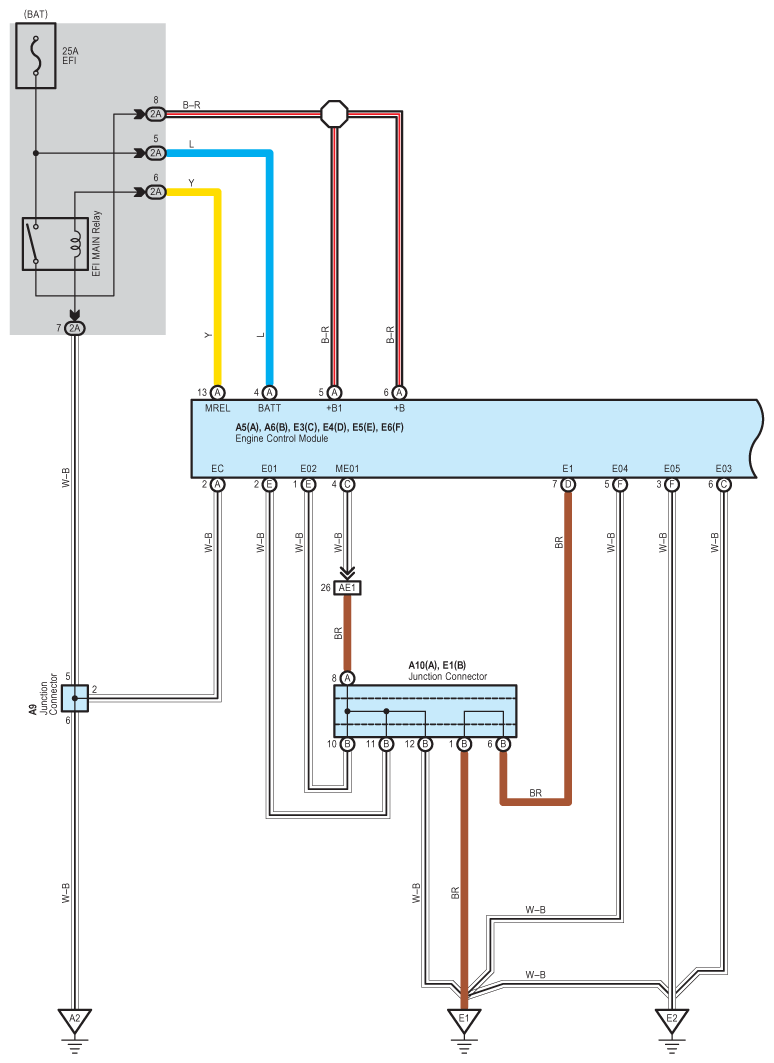

Fig 6: Cruise Control (2GR-FSE) - Wiring Diagram (6 Of 8)

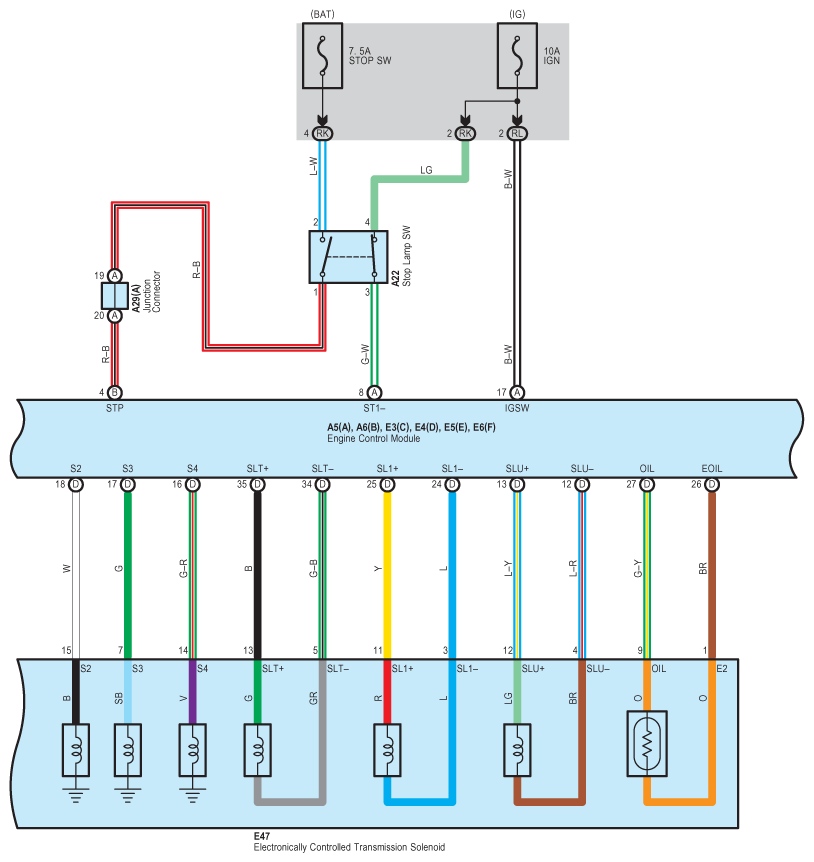

Fig 7: Cruise Control (2GR-FSE) - Wiring Diagram (7 Of 8)

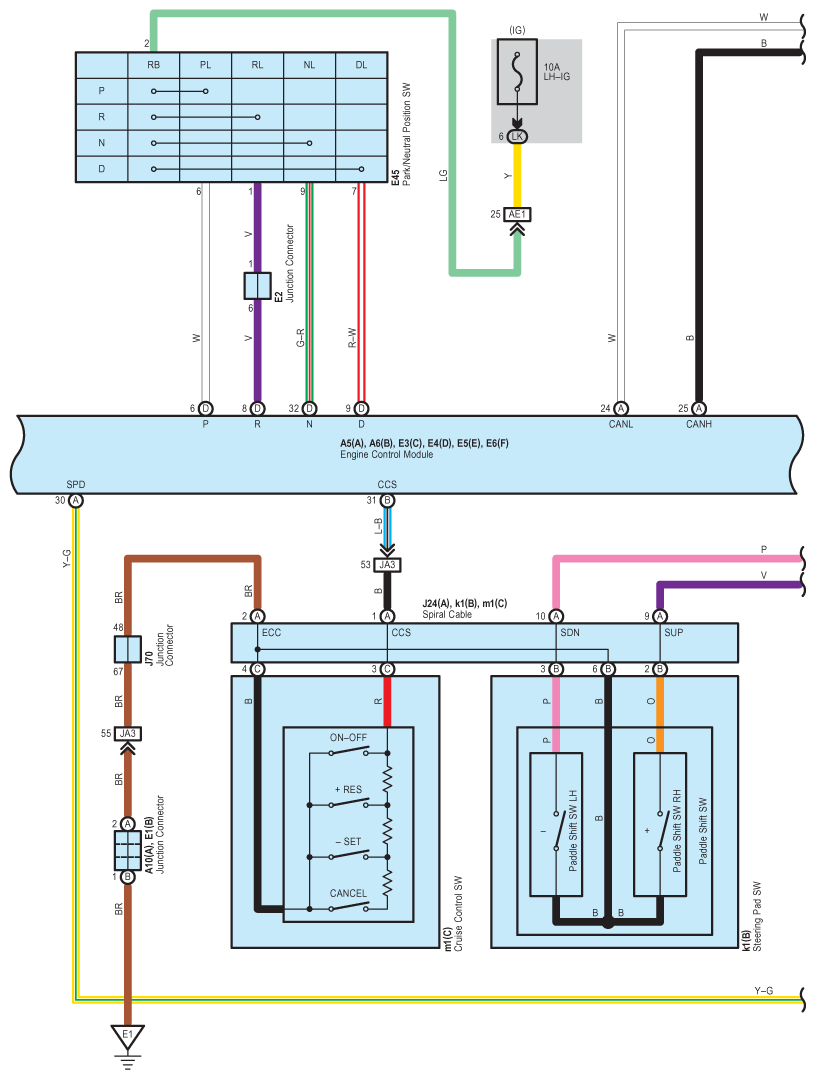

Fig 8: Cruise Control (2GR-FSE) - Wiring Diagram (8 Of 8)
