Remote Control Mirror (w/o Seat Position Memory): Notes

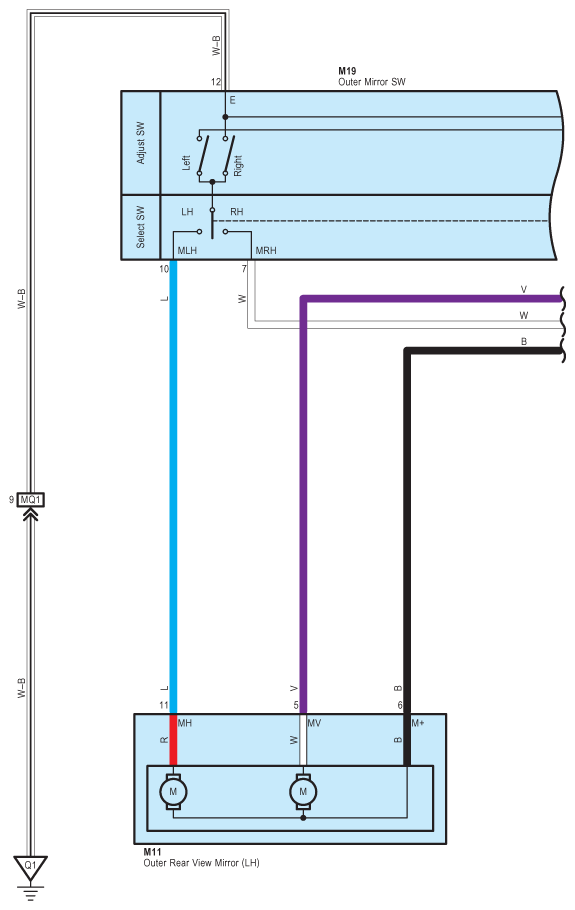

Fig 1: Remote Control Mirror (W/O Seat Position Memory) - Wiring Diagram (1 Of 2)
G08935641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

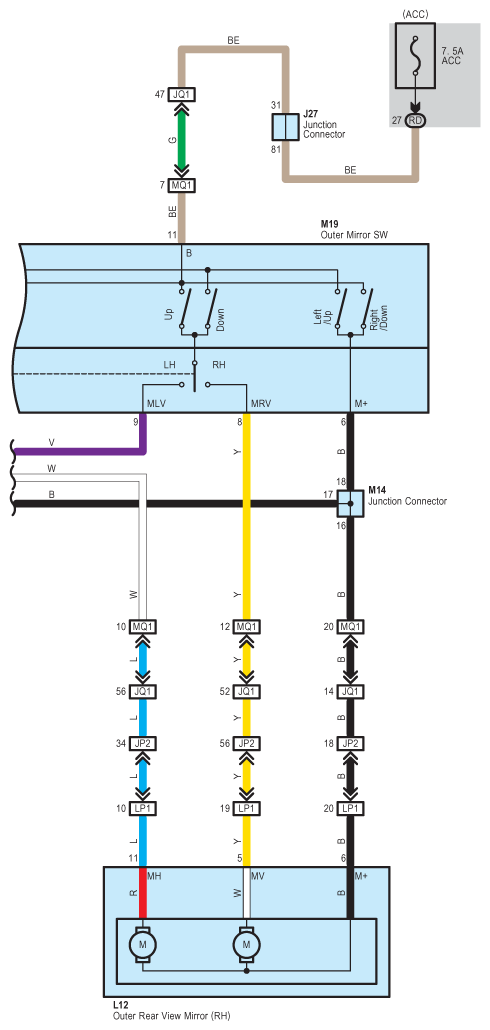

Fig 2: Remote Control Mirror (W/O Seat Position Memory) - Wiring Diagram (2 Of 2)
G08935642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
