Fuel Pressure Sensor: Components: Illustration

Fig 1: Identifying fuel Pressure Sensor Replacement Components With Torque Specifications (1 Of 3)
GTY146183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

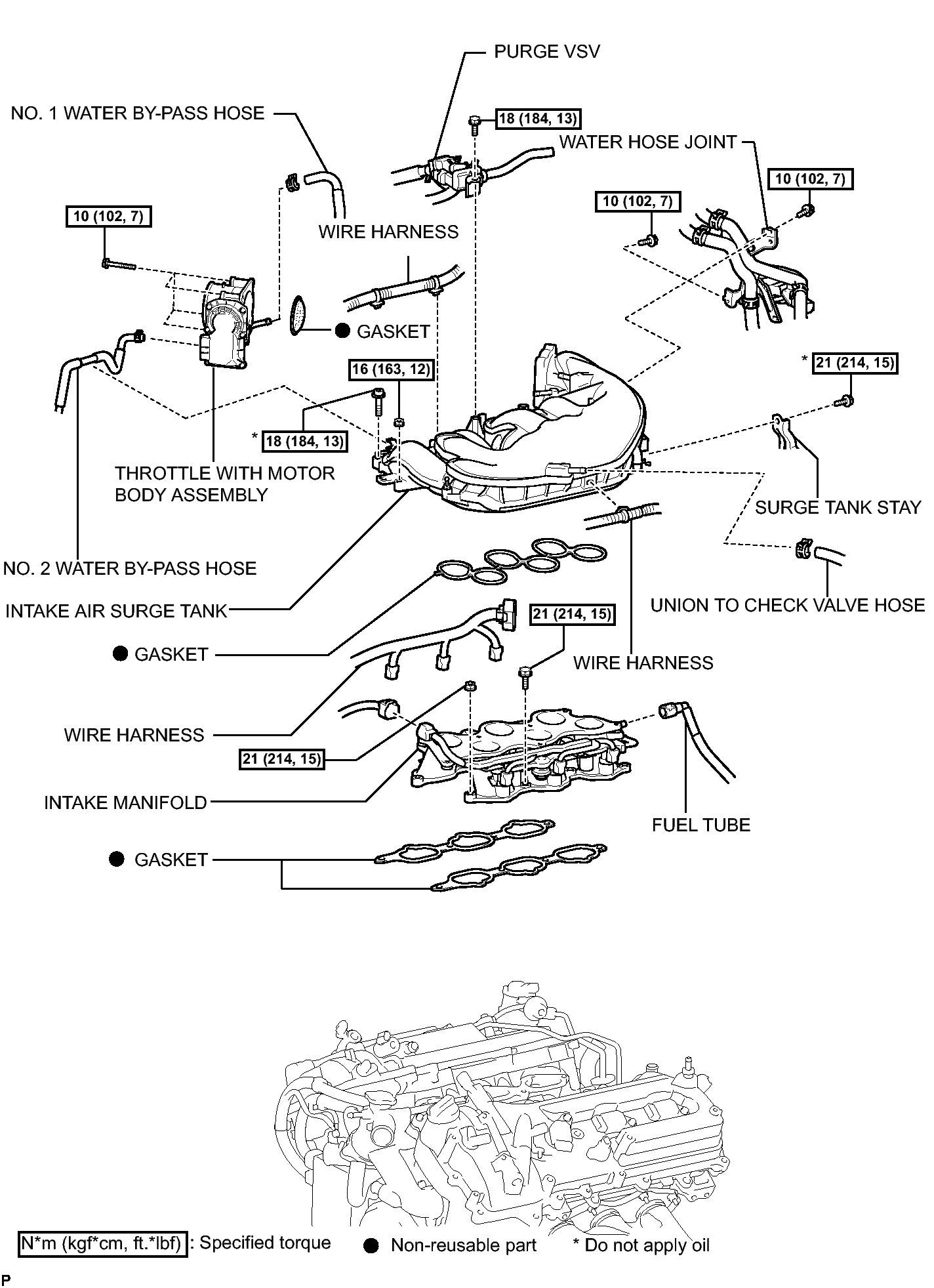

Fig 1: Identifying fuel Pressure Sensor Replacement Components With Torque Specifications (2 Of 3)
GTY146191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

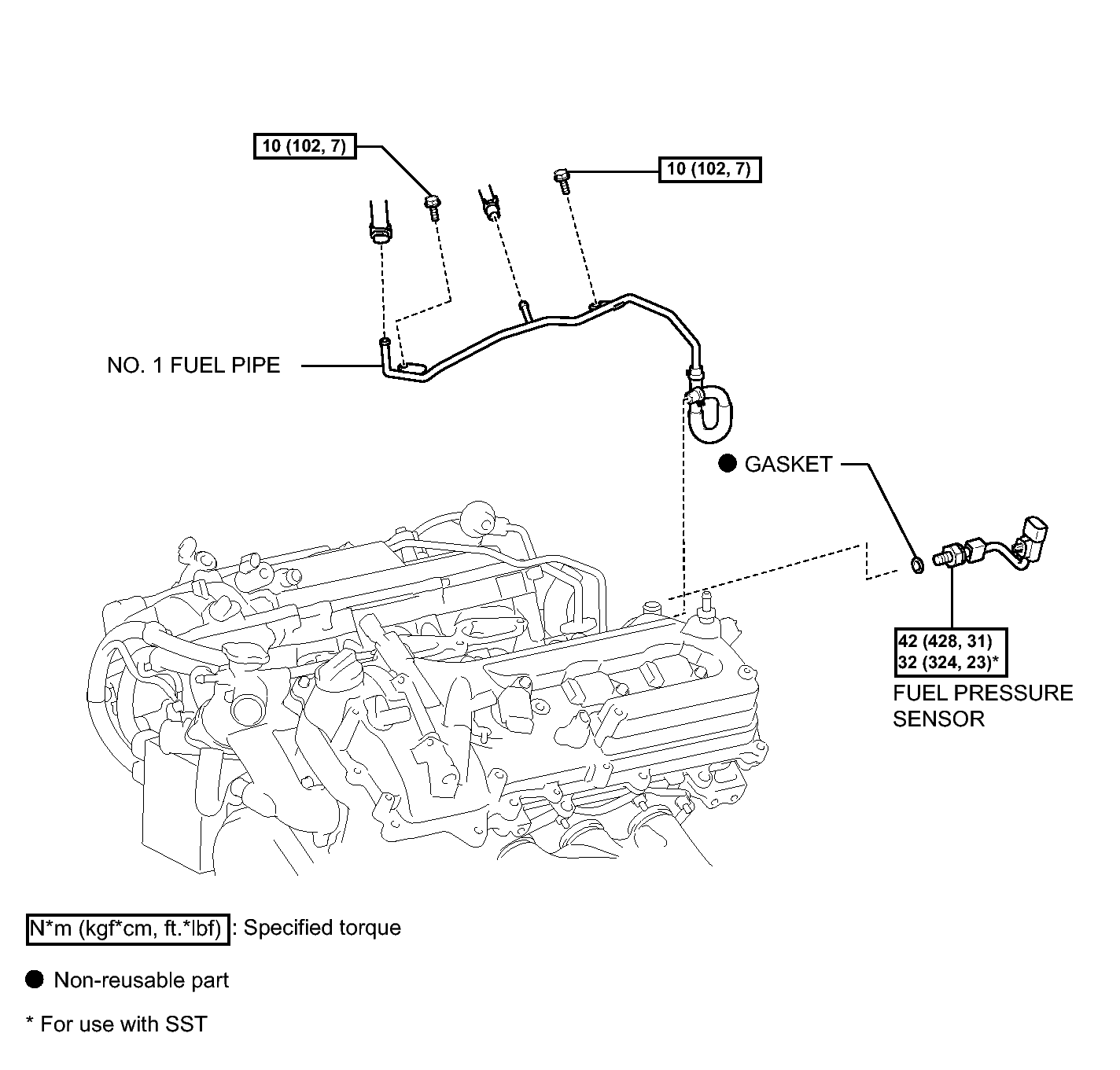

Fig 1: Identifying fuel Pressure Sensor Replacement Components With Torque Specifications (3 Of 3)
GTY103132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
