Ignition Coil And Spark Plug: Removal: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 4
REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 1
REMOVE ENGINE ROOM SIDE COVER RH . Refer to REMOVAL - Step 3
REMOVE ENGINE ROOM SIDE COVER LH . Refer to REMOVAL - Step 2
DISCONNECT NO. 2 VENTILATION HOSE
1. Disconnect the ventilation hose from the cylinder head.

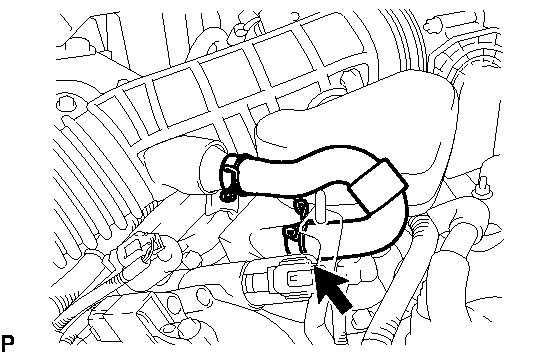

  Fig 1: Locating Ventilation Hose To Cylinder Head Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER CAP SUB-ASSEMBLY
REMOVE IGNITION COIL ASSEMBLY
1. Disconnect the 2 wire harness clamps.

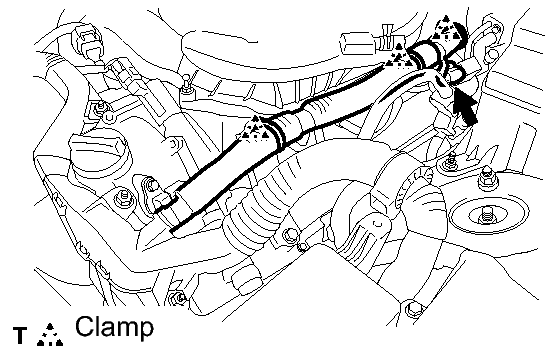

  Fig 2: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 6 ignition coil connectors.

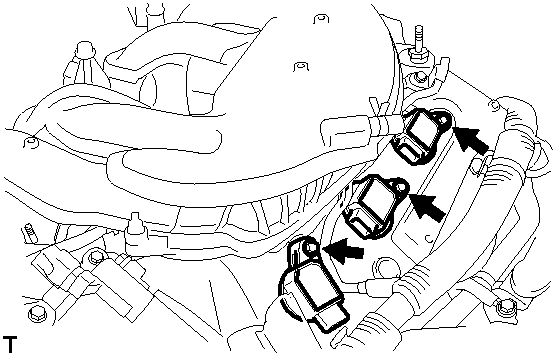

  Fig 3: Location of Ignition Coil Connectors And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 6 bolts and the 6 ignition coil assemblies.
REMOVE SPARK PLUG
1. Remove the 6 spark plugs.
