Parts Location: Illustration

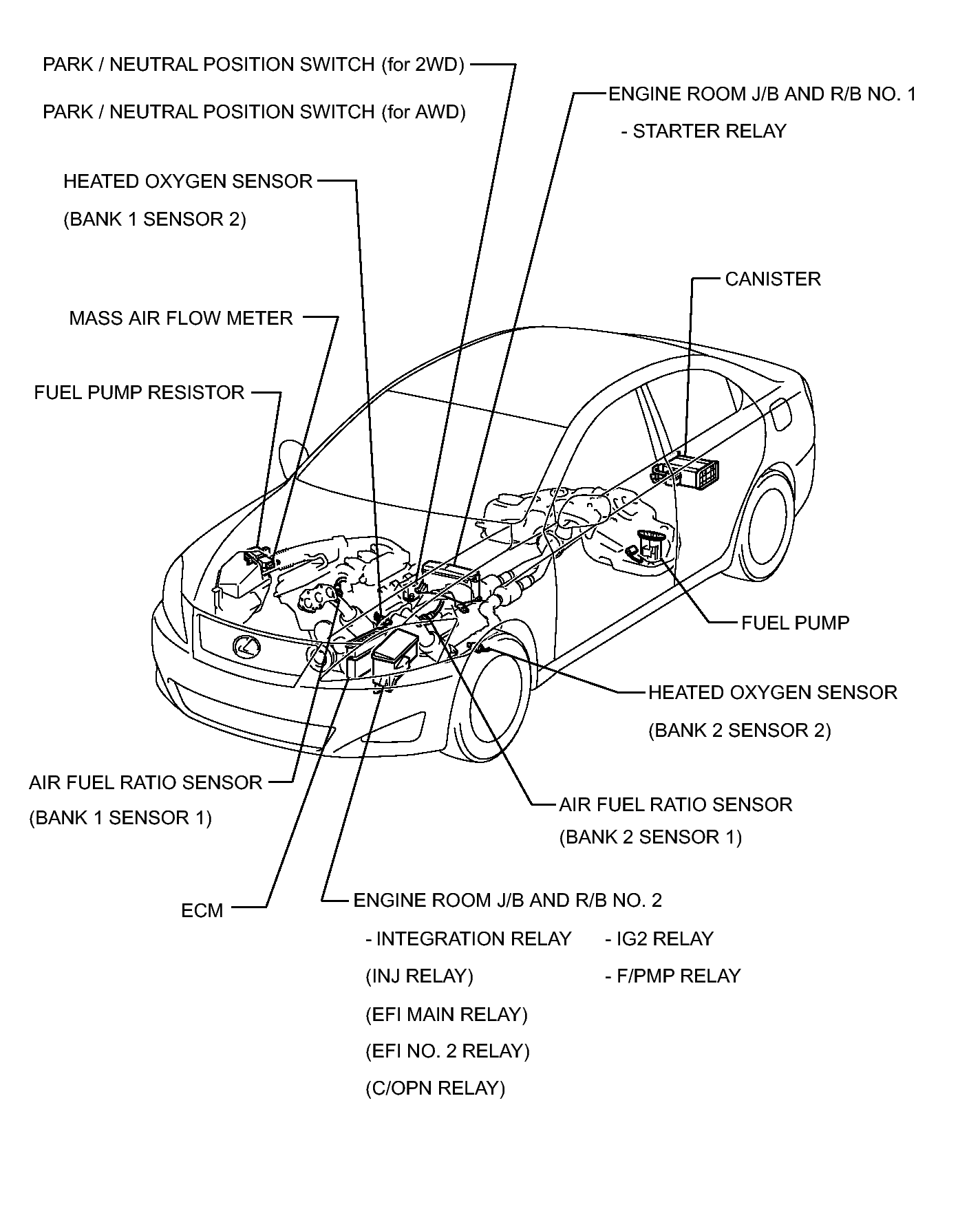

Fig 1: Identifying Engine Control (SFI) System Components Location (1 Of 3)
GTY394077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control (SFI) System Components Location (2 Of 3)
GTY354424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control (SFI) System Components Location (3 Of 3)
GTY135191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
