Transfer Wire: Inspection: Inspection

  1. INSPECT TRANSFER WIRE
    1. Disconnect the transfer wire connector.
    2. Measure the resistance according to the value(s) in the table below.

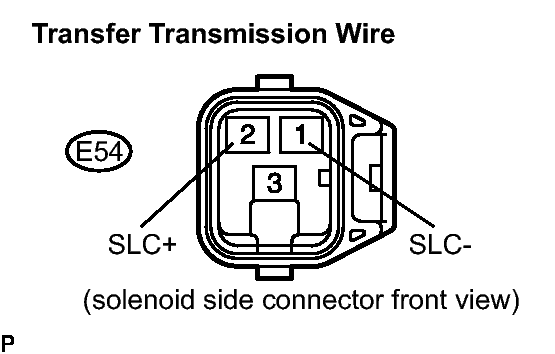

      Fig 1: Identifying Transfer Transmission Wire Connector
      GTY124994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Specified Condition
      i1-1 - i1-2 5.0 to 5.5 Ω
      i1-1 - Body ground 1 MΩ or higher
      i1-2 - Body ground 1 MΩ or higher

      If the resistance is not specified, replace the transfer wire.
