Transfer Wire: Installation: Installation

  1. INSTALL TRANSFER WIRE
    1. Coat the transfer wire O-ring with ATF.

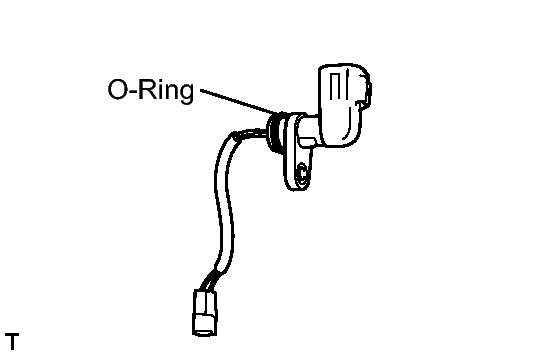

      Fig 1: Identifying Transfer Wire O-Ring
      GTY107054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transfer wire with the bolt.

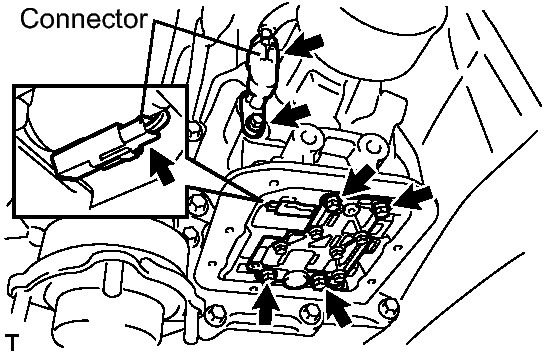

      Fig 2: Locating Transfer Upper Valve Body Bolts
      GTY104152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    3. Connect the 2 transfer wire connectors to the transfer control solenoid.
    4. Install the transfer upper valve body with the 4 bolts.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  2. INSTALL TRANSFER OIL PAN
    1. Install the transfer oil cleaner magnet to the transfer oil pan.

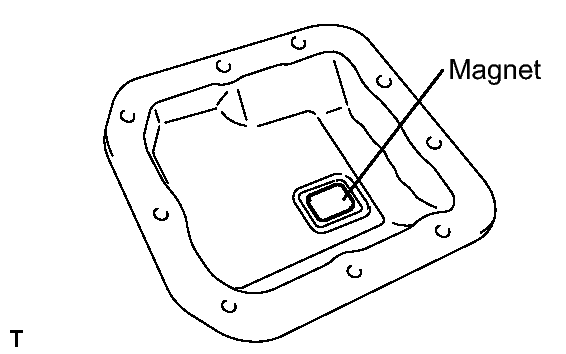

      Fig 3: Identifying Transfer Oil Cleaner Magnet
      GTY101194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove all residual FIPG material from the contact surfaces using gasoline or alcohol.

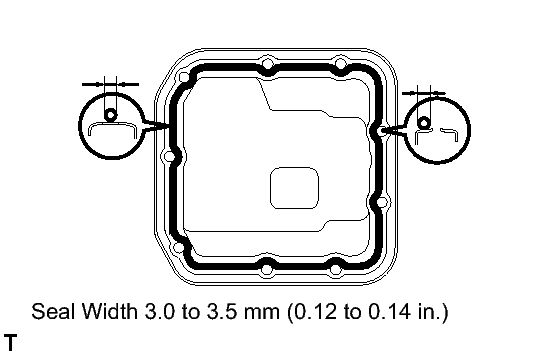

      Fig 4: Applying Seal Packing To Transfer Chain Case Front
      GTY106799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply seal packing to the transfer chain case front as shown in the illustration.

      Seal packing

      Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

    4. Temporarily tighten the 9 bolts in several steps, and then tighten them to the specified torque.

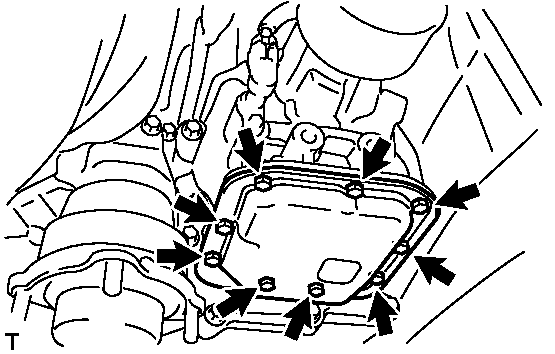

      Fig 5: Identifying Transfer Oil Pan Bolts
      GTY106749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

  3. INSTALL TRANSFER DYNAMIC DAMPER
    1. Install the transfer dynamic damper with the 2 bolts.

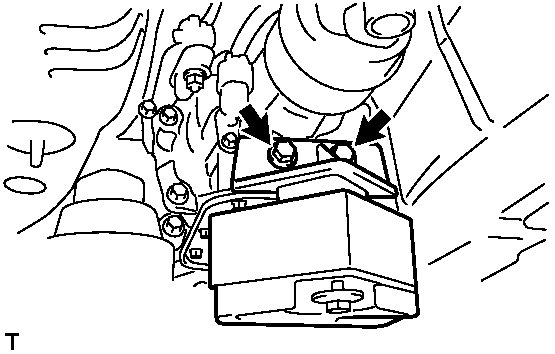

      Fig 6: Identifying Transfer Dynamic Damper Bolts
      GTY106748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

  4. INSTALL ENGINE REAR MOUNTING MEMBER
    1. Install the engine rear mounting member with the 4 bolts and 3 nuts.

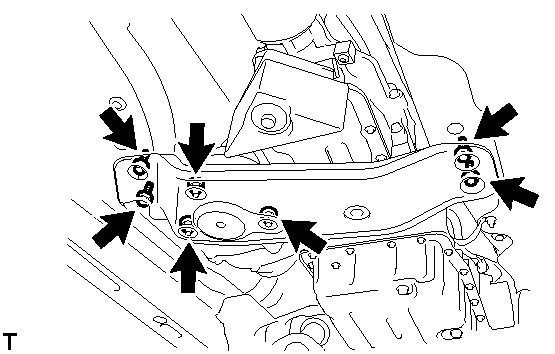

      Fig 7: Identifying Engine Rear Mounting Member Bolts
      GTY102025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

      (Bolt)

      Torque: 38 N*m (387 kgf*cm, 28 ft.*lbf)

      (Nut)

  5. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE)  . Refer to INSTALLATION - Step 3
  6. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE)  . Refer to INSTALLATION - Step 4
  7. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE)  . Refer to INSTALLATION - Step 4
  8. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE)  . Refer to INSTALLATION - Step 4
  9. INSTALL HEATED OXYGEN SENSOR (for 4GR-FSE)  . Refer to INSTALLATION - Step 6
  10. INSTALL HEATED OXYGEN SENSOR (for 2GR-FSE)  . Refer to INSTALLATION - Step 6
  11. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE)  . Refer to INSTALLATION - Step 7
  12. INSTALL FRONT CENTER FLOOR BRACE (for 2GR-FSE)  . Refer to INSTALLATION - Step 7
  13. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE)  . Refer to INSTALLATION - Step 8
  14. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE)  . Refer to INSTALLATION - Step 8
  15. ADD AUTOMATIC TRANSMISSION FLUID  . Refer to INSTALLATION - Step 26
  16. CHECK FOR EXHAUST GAS LEAKS
