Data List / Active Test

  1. DATA LIST

    HINT:

    By reading the Data List displayed on Techstream, you can check values, including those of the switches, sensors, and actuators, without removing any parts. Reading the Data List as the first step of troubleshooting is one method of shortening diagnostic time.

    NOTE:

    In the table below, the values listed under Normal Condition are reference only. Do not depend solely on these values when determining whether or not a part is faulty.

    1. Warm up the engine.
    2. Turn the engine switch off.
    3. Connect Techstream to the DLC3.
    4. Turn the engine switch on (IG).
    5. Turn the tester on.
    6. Enter the following menus: Powertrain / Engine / Data List.
    7. Check the values by referring to the table below.
    Tester Display Measurement Item/Range Normal Condition*1 Diagnostic Note
    Vehicle Speed Vehicle speed:
    Min.: 0 km/h, Max.: 255 km/h    		 Actual vehicle speed Speed indicated on speedometer
    Engine Speed Engine speed:
    Min.: 0 rpm, Max.: 16383 rpm    		 550 to 800 rpm: Idling -
    Calculate Load Calculated load by ECM:
    Min.: 0%, Max.: 100%
    • 15.0 to 35.0%: Idling
    • 10.0 to 30.0%: Running without load (2000 rpm)
    		 -
    Vehicle Load Vehicle load:
    Min.: 0%, Max.: 25700%    		 Actual vehicle load -
    MAF Air flow rate from MAF meter:
    Min.: 0 gm/sec
    Max.: 655.35 gm/sec    		 2.7 to 3.7 gm/sec: Idling
    8.8 to 9.8 gm/sec: 2000 rpm    		 If value approximately 0.0 gm/sec:
    • Mass air flow meter power source circuit open
    • VG circuit open or short

    If value 271.0 gm/sec or more:
    • E2G circuit open
    Atmosphere Pressure Atmospheric pressure:
    Min.: 0 kPa, Max.: 255 kPa    		 Equivalent to atmospheric pressure (absolute pressure) -
    Coolant Temp Engine coolant temperature:
    Min.: -40°C (-40°F)
    Max.: 140°C (284°F)    		 75 to 100°C (167 to 212°F):
    After warming up
    • If value -40°C (-40°F): sensor circuit open
    • If value more than 135°C (275°F): sensor circuit shorted
    Intake Air Intake air temperature:
    Min.: -40°C (-40°F)
    Max.: 140°C (284°F)    		 Equivalent to ambient air temperature
    • If value -40°C (-40°F): sensor circuit open
    • If value more than 128°C (262°F): sensor circuit shorted
    Ambient Temperature Ambient temperature:
    Min.: -40°C (-40°F)
    Max.: 215°C (419°F)    		 Actual atmospheric temperature -
    Engine Run Time Engine run time:
    Min.: 0 s, Max.: 65535 s    		 Time after engine start -
    Initial Engine Coolant Temp Initial engine coolant temperature:
    Min.: -40°C (-40°F)
    Max.: 119.3°C (246.7°F)    		 Close to ambient air temperature -
    Initial Intake Air Temp Initial intake air temperature:
    Min.: -40°C (-40°F)
    Max.: 119.3°C (246.7°F)    		 Close to ambient air temperature -
    Battery Voltage Battery voltage:
    Min.: 0 V, Max.: 65.535 V    		 9 to 14 V: Idling -
    Accelerator Position Accelerator pedal position:
    Min.: 0%, Max.: 399.9%    		 Actual accelerator pedal position -
    Accel Sens. No. 1 Volt % Absolute Accelerator Pedal Position (APP) No. 1:
    Min.: 0%, Max.: 100%    		 10 to 22%: Accelerator pedal fully released
    54 to 86%: Accelerator pedal fully depressed    		 -
    Accel Sens. No. 2 Volt % Absolute APP No. 2:
    Min.: 0%, Max.: 100%    		 12 to 42%: Accelerator pedal fully released
    66 to 98%: Accelerator pedal fully depressed    		 -
    Accel Sensor Out No. 1 APP sensor No. 1 voltage:
    Min.: 0 V, Max.: 4.98 V    		 0.5 to 1.1 V: Accelerator pedal fully released
    2.6 to 4.5 V: Accelerator pedal fully depressed    		 -
    Accel Sensor Out No. 2 APP sensor No. 2 voltage:
    Min.: 0 V, Max.: 4.98 V    		 1.2 to 2.0 V: Accelerator pedal fully released
    3.4 to 4.98 V: Accelerator pedal fully depressed    		 -
    Accelerator Idle Position Whether or not accelerator pedal position sensor detecting idle:
    ON or OFF    		 ON: Idling -
    Accel Fully Close Learn #1 Accelerator fully closed learning value No. 1:
    Min.: 0 deg, Max.: 124.5 deg    		 - -
    Accel Fully Close Learn #2 Accelerator fully closed learning value No. 2:
    Min.: 0 deg, Max.: 124.5 deg    		 - -
    Throttle Sensor Volt % Throttle valve opening percentage according to throttle position sensor:
    Min.: 0%, Max.: 100%
    • 10 to 22%: Accelerator fully pedal released
    • 64 to 96%: Accelerator pedal fully depressed
    		 Value calculated based on the voltage at terminal VTA1
    Throttle Sensor #2 Volt % Throttle valve opening percentage according to throttle position sensor No. 2:
    Min.: 0%, Max.: 100%
    • 42 to 62%: Accelerator fully pedal released
    • 92 to 100%: Accelerator pedal fully depressed
    		 Value calculated based on the voltage at terminal VTA2
    ST1 Brake pedal signal:
    ON or OFF    		 ON: Brake pedal released -
    System Guard System guard:
    ON or OFF    		 - -
    Open Side Malfunction Open side malfunction:
    ON or OFF    		 - -
    Throttle Idle Position Whether or not throttle position sensor detecting idle:
    ON or OFF
    • ON: Accelerator pedal fully released
    • OFF: Accelerator pedal depressed
    		 -
    Throttle Require Position Throttle requirement position:
    Min.: 0 V, Max.: 4.98 V    		 0.5 to 1.1 V: Idling -
    Throttle Sensor Position*2 Throttle position sensor:
    Min.: 0%, Max.: 100%
    • 0%: Accelerator pedal fully released
    • 50 to 80%: Accelerator pedal fully depressed
    		 Recognition value for throttle opening angle on ECM
    Throttle Position No. 1 Throttle position No. 1 output voltage:
    Min.: 0 V, Max.: 4.98 V
    • 0.5 to 1.1 V: Accelerator fully pedal released
    • 3.2 to 4.8 V: Accelerator pedal fully depressed
    • 0.6 to 1.4: Fail-safe operating
    		 -
    Throttle Position No. 2 Throttle position No. 2 output voltage:
    Min.: 0 V, Max.: 4.98 V
    • 2.1 to 3.1 V: Accelerator fully pedal released
    • 4.6 to 4.98 V: Accelerator pedal fully depressed
    • 2.1 to 3.1 V: Fail-safe operating
    		 -
    Throttle Position Command Throttle position command value:
    Min.: 0 V, Max.: 4.98 V    		 0.5 to 4.8 V -
    Throttle Sens Open Pos #1 Throttle sensor opener position No. 1:
    Min.: 0 V, Max.: 4.98 V    		 0.6 to 1.4 V ETCS service data
    Throttle Sens Open Pos #2 Throttle sensor opener position No. 2:
    Min.: 0 V, Max.: 4.98 V    		 1.7 to 2.5 V ETCS service data
    Throttle Motor Current Throttle actuator current:
    Min.: 0 A, Max.: 19.9 A    		 0 to 3.0 A: Idling ETCS service data
    Throttle Motor DUTY Throttle actuator:
    Min.: 0%, Max.: 100%    		 10 to 22%: Idling -
    Throttle Motor Duty (Open) Throttle actuator duty ratio (open):
    Min.: 0%, Max.: 255%    		 0 to 40%: Idling ETCS service data
    Throttle Motor Duty (Close) Throttle actuator duty ratio (close):
    Min.: 0%, Max.: 255%    		 0 to 40%: Idling ETCS service data
    Throttle Fully Close Learn Throttle valve fully closed
    (learned value):
    Min.: 0 V, Max.: 4.98 V    		 0.4 to 1.0 V: Accelerator pedal released -
    +BM Voltage +BM voltage:
    Min.: 0 V, Max.: 79.998 V    		 11 to 14 V: Engine switch on (IG) and system normal ETCS service data
    Actuator Power Supply Actuator power supply:
    ON or OFF    		 ON: Idling -
    Fuel Press Fuel pressure:
    Min.: 0 kPa Max.: 655350 kPa    		 3500 to 4500 kPa: Idling
    7000 to 9000 kPa: 2000 rpm    		 -
    Injector (Port) Injection period:
    Min.: 0 μs, Max.: 65535 μs    		 700 to 1600 μs -
    Injection Volum (Cylinder 1) Injection volume (Cylinder 1):
    Min.: 0 ml, Max.: 2.047 ml    		 0.05 to 0.15 ml: Idling Quantity of fuel injection volume for 10 times
    Fuel Pump Speed Control Fuel pump speed control status:
    ON or OFF    		 Idling: ON -
    Fuel Pump/Speed Status Fuel pump/status:
    ON or OFF    		 ON: Cranking -
    Vacuum Pump Key-off EVAP system leak detection pump status:
    ON or OFF    		 - -
    Fuel Pressure Target Value Target fuel pressure:
    Min.: 0 MPa, Max.: 65.535 MPa    		 3 to 5 MPa: Idling
    6 to 10 MPa: 2500 rpm (No load)    		 -
    Fuel Pump Duty (D4) Fuel pump duty:
    Min.: 0%, Max.: 127.5%    		 0 to 40%: Idling -
    HP FP Discharge Rate Fuel volume required by the high-pressure fuel pump:
    Min.: 0 ml, Max.: 2.047 ml    		 - -
    Injection Way Injection mode:
    Port / Direct / Either    		 - -
    Injection Switching Status Prohibition of changing the D-4S injection method:
    NG or OK    		 - -
    Injection Timing (D4) Injection timing:
    Min.: -3276.8°CA, Max.: 3276.7°CA    		 320 to 340°CA: Idling -
    Injection Time (D4) Injection time:
    Min.: 0 μs, Max.: 65535 μs    		 700 to 2000 μs: Idling -
    EVAP (Purge) VSV Purge VSV control duty:
    Min.: 0%, Max.: 100%    		 0 to 20%: Idling Order signal from ECM
    EVAP Purge Flow Purge flow:
    Min.: 0%, Max.: 399.9%    		 0 to 10%: Idling -
    Purge Density Learn Value Learning value of purge density:
    Min.: -200, Max.: 199.993    		 -35 to 1: Idling -
    Vapor Pressure Pump Vapor pressure:
    Min.: 0 kPa (0 mmHg)
    Max.: 1441.77 kPa (10813.27 mmHg)    		 Approximately 100 kPa (750 mmHg) (absolute): Fuel cap removed Pressure inside fuel tank monitored by vapor pressure sensor
    Vapor Pressure (Calculated) Vapor pressure (calculated):
    Min.: -720.896 kPa (-5406.720 mmHg)
    Max.: 720.874 kPa (5406.555 mmHg)    		 Approximately 100 kPa (750 mmHg) (absolute): Fuel cap removed Pressure inside fuel tank monitored by vapor pressure sensor
    EVAP System Vent Valve Key-off EVAP system vent valve status:
    ON or OFF    		 - -
    EVAP Purge VSV VSV status for EVAP control:
    ON or OFF    		 - -
    Purge Cut VSV Duty Purge cut VSV duty:
    Min.: 0%, Max.: 399.9%    		 - -
    Target Air-Fuel Ratio Air-fuel ratio:
    Min.: 0, Max.: 1.99    		 0.8 to 1.2: Idling -
    AF Lambda B1S1 Short-term fuel trim associated (Bank 1 sensor 1):
    Min.: 0, Max.: 1.99
    • Value less than 1 (0.000 to 0.999) = Rich
    • Stoichiometric air-fuel ratio = 1
    • Value greater than 1 (1.001 to 1.999) = Lean
    		 -
    AF Lambda B2S1 Short-term fuel trim associated (Bank 2 sensor 1):
    Min.: 0, Max.: 1.99
    • Value less than 1 (0.000 to 0.999) = Rich
    • Stoichiometric air-fuel ratio = 1
    • Value greater than 1 (1.001 to 1.999) = Lean
    		 -
    AFS Voltage B1S1 A/F sensor output voltage (Bank 1 sensor 1):
    Min.: 0 V Max.: 7.99 V    		 2.8 to 3.8 V: Idling Performing Control the Injection Volume or Control the Injection Volume for A/F Sensor function of Active Test enables technician to check output voltage of sensor
    AFS Voltage B2S1 A/F sensor output voltage (Bank 2 sensor 1):
    Min.: 0 V Max.: 7.99 V    		 2.8 to 3.8 V: Idling Performing Control the Injection Volume or Control the Injection Volume for A/F Sensor function of Active Test enables technician to check output voltage of sensor
    AFS Current B1S1 A/F sensor current (Bank 1 sensor 1):
    Min.: -128 mA, Max.: 127.99 mA    		 - -
    AFS Current B2S1 A/F sensor current (Bank 2 sensor 1):
    Min.: -128 mA, Max.: 127.99 mA    		 - -
    A/F Heater Duty #1 Air fuel ratio heater duty ratio (Bank 1 sensor 1):
    Min.: 0%, Max.: 399.9%    		 0 to 100% -
    A/F Heater Duty #2 Air fuel ratio heater duty ratio (Bank 2 sensor 1):
    Min.: 0%, Max.: 399.9%    		 0 to 100% -
    O2S B1S2 Heated oxygen sensor output voltage (Bank 1 sensor 2):
    Min.: 0 V Max.: 1.275 V    		 0.1 to 0.9 V:
    Driving at 70 km/h (43 mph)    		 Performing Control the Injection Volume or Control the Injection Volume for A/F Sensor function of Active Test enables technician to check output voltage of sensor
    O2S B2S2 Heated oxygen sensor output voltage (Bank 2 sensor 2):
    Min.: 0 V Max.: 1.275 V    		 0.1 to 0.9 V:
    Driving at 70 km/h (43 mph)    		 Performing Control the Injection Volume or Control the Injection Volume for A/F Sensor function of Active Test enables technician to check output voltage of sensor
    O2S Impedance B1S2 Sub heated oxygen sensor impedance (Bank 1 sensor 2):
    Min.: 0 ohm, Max.: 21247.67 ohm    		 - -
    O2S Impedance B2S2 Sub heated oxygen sensor impedance (Bank 2 sensor 2):
    Min.: 0 ohm, Max.: 21247.67 ohm    		 - -
    O2 Heater B1S2 Heated oxygen sensor heater (Bank 1 sensor 2):
    Not Act or Active    		 - -
    O2 Heater B2S2 Heated oxygen sensor heater (Bank 2 sensor 2):
    Not Act or Active    		 - -
    O2 Heater Curr Val B1S2 Heated oxygen sensor current (Bank 1 sensor 2):
    Min.: 0 A, Max.: 4.9 A    		 - -
    O2 Heater Curr Val B2S2 Heated oxygen sensor current (Bank 2 sensor 2):
    Min.: 0 A, Max.: 4.9 A    		 - -
    Short FT #1 Short-term fuel trim of bank 1:
    Min.: -100%, Max.: 99.2%    		 - 15 to 15% Short-term fuel compensation used to maintain air-fuel ratio at stoichiometric air-fuel ratio
    Long FT #1 Long-term fuel trim of bank 1:
    Min.: -100%, Max.: 99.2%    		 - 15 to 15% Overall fuel compensation carried out in long-term to compensate continual deviation of short-term fuel trim from central value
    Total FT #1 Total fuel trim of bank 1
    Average value for fuel trim system of bank 1:
    Min.: -0.5, Max.: 0.496    		 - 0.28 to 0.2: Idling -
    Short FT #2 Short-term fuel trim of bank 2:
    Min.: -100%, Max.: 99.2%    		 - 15 to 15% Short-term fuel compensation used to maintain air-fuel ratio at stoichiometric air-fuel ratio
    Long FT #2 Long-term fuel trim of bank 2:
    Min.: -100%, Max.: 99.2%    		 - 15 to 15% Overall fuel compensation carried out in long-term to compensate continual deviation of short-term fuel trim from central value
    Total FT #2 Total fuel trim of bank 2
    Average value for fuel trim system of bank 2:
    Min.: -0.5, Max.: 0.496    		 - 0.28 to 0.2: Idling -
    Fuel System Status #1 Fuel system status (Bank 1):
    OL or CL or OLDrive or OLFault or CLFault    		 CL: Idling after warming up
    • OL (Open Loop): Has not yet satisfied conditions to go closed loop
    • CL (Closed Loop): Using air-fuel ratio sensor as feedback for fuel control
    • OLDrive: Open loop due to driving conditions (fuel enrichment)
    • OLFault: Open loop due to detected system fault
    • CLFault: Closed loop but air-fuel ratio sensor, which used for fuel control malfunctioning
    Fuel System Status #2 Fuel system status (Bank 2):
    OL or CL or OLDrive or OLFault or CLFault    		 CL: Idling after warming up
    • OL (Open Loop): Has not yet satisfied conditions to go closed loop
    • CL (Closed Loop): Using air-fuel ratio sensor as feedback for fuel control
    • OLDrive: Open loop due to driving conditions (fuel enrichment)
    • OLFault: Open loop due to detected system fault
    • CLFault: Closed loop but air-fuel ratio sensor, which used for fuel control malfunctioning
    IGN Advance Ignition timing advance for No. 1 cylinder:
    Min.: -64 deg, Max.: 63.5 deg    		 BTDC 5 to 22 deg: Idling -
    Knock Feedback Value Feedback value of knocking:
    Min: -1024°CA, Max.: 1023.9°CA    		 -25 to 0°CA:
    Driving at 70 km/h (43 mph)    		 -
    Knock Correct Learn Value Correction learning value of knocking:
    Min: -1024°CA, Max.: 1023.9°CA    		 3 to 28°CA:
    Driving at 70 km/h (43 mph)    		 -
    VVT Control Status #1 VVT control (bank 1) status:
    ON or OFF    		 - -
    VVT Control Status #2 VVT control (bank 2) status:
    ON or OFF    		 - -
    VVT Aim Angle #1 *3 VVT aim angle (bank 1):
    Min.: 0%, Max.: 399.9%    		 - VVT duty signal value during intrusive operation
    VVT Change Angle #1 *3 VVT change angle (bank 1):
    Min.: 0 DegFR, Max.: 639.9 DegFR    		 - Displacement angle during intrusive operation
    VVT OCV Duty #1 *3 VVT OCV (bank 1) operation duty:
    Min.: 0%, Max.: 399.9%    		 - Requested duty value for intrusive operation
    VVT Aim Angle #2 *3 VVT aim angle (bank 2):
    Min.: 0%, Max.: 399.9%    		 - VVT duty signal value during intrusive operation
    VVT Change Angle #2 *3 VVT change angle (bank 2):
    Min.: 0 DegFR, Max.: 639.9 DegFR    		 - Displacement angle during intrusive operation
    VVT OCV Duty #2 *3 VVT OCV (bank 2) operation duty:
    Min.: 0%, Max.: 399.9%    		 - Requested duty value for intrusive operation
    VVT Ex Hold Lrn Val #1 *3 VVT exhaust hold duty ratio learning value (bank 1):
    Min.: 0%, Max.: 399.9%    		 - VVT duty signal value during intrusive operation
    VVT Ex Chg Angle #1 *3 VVT exhaust change angle (bank 1):
    Min.: 0 DegFR, Max.: 639.9 DegFR    		 - Displacement angle during intrusive operation
    VVT Ex OCV Duty #1 *3 VVT exhaust OCV duty (bank 1):
    Min.: 0%, Max.: 399.9%    		 - Requested duty value for intrusive operation
    VVT Ex Hold Lrn Val #2 *3 VVT exhaust hold duty ratio learning value (bank 2):
    Min.: 0%, Max.: 399.9%    		 - VVT duty signal value during intrusive operation
    VVT Ex Chg Angle #2 *3 VVT exhaust change angle (bank 2):
    Min.: 0 DegFR, Max.: 639.9 DegFR    		 - Displacement angle during intrusive operation
    VVT Ex OCV Duty #2 *3 VVT exhaust OCV duty (bank 2):
    Min.: 0%, Max.: 399.9%    		 - Requested duty value for intrusive operation
    VN Turbo Type Variable nozzle turbo type:
    Not Avl or Commo or Vacuum or CAN Com    		 Not Avl (Unused) -
    Catalyst Temp B1S1 Catalyst temperature (bank 1, sensor 1):
    Min.: -40°C (-40°F)
    Max.: 6513.5°C (11756.3°F)    		 - -
    Catalyst Temp B2S1 Catalyst temperature (bank 2, sensor 1):
    Min.: -40°C (-40°F)
    Max.: 6513.5°C (11756.3°F)    		 - -
    Catalyst Temp B1S2 Catalyst temperature (bank 1, sensor 2):
    Min.: -40°C (-40°F)
    Max.: 6513.5°C (11756.3°F)    		 - -
    Catalyst Temp B2S2 Catalyst temperature (bank 2, sensor 2):
    Min.: -40°C (-40°F)
    Max.: 6513.5°C (11756.3°F)    		 - -
    Starter Signal Starter signal:
    Close or Open    		 Open: Cranking -
    Starter Control Starter switch status:
    ON or OFF    		 ON: Cranking -
    Power Steering Signal Power steering signal:
    ON or OFF    		 ON: Power steering operation -
    Starter Relay STARTER relay:
    ON or OFF    		 ON: Cranking -
    ACC Relay ACC relay:
    ON or OFF    		 ON: Cranking -
    Neutral Position SW Signal PNP switch status:
    ON or OFF    		 ON: P or N position -
    Stop Light Switch Stop light switch:
    ON or OFF    		 ON: Brake pedal depressed -
    A/C Signal A/C signal:
    ON or OFF    		 ON: A/C ON -
    Idle Up Signal Idle up signal:
    ON or OFF    		 - -
    Closed Throttle Position SW Closed throttle position switch:
    ON or OFF
    • ON: Throttle fully closed
    • OFF: Throttle open
    		 -
    Fuel Cut Condition Fuel-cut condition:
    ON or OFF    		 ON: Any fuel-cut operation executed -
    Immobiliser Communication Immobiliser communication:
    ON or OFF    		 - OFF: Communication malfunctioning, or engine immobiliser system set
    ON: Communication normal
    Engine Oil Pressure SW Engine oil pressure switch signal:
    ON or OFF    		 ON: Oil pressure warning light ON -
    Check Mode Check mode:
    ON or OFF    		 ON: Check mode ON Refer to CHECK MODE PROCEDURE
    SPD Test Result Check mode result for vehicle speed sensor:
    Compl or Incmpl    		 - -
    Misfire Test Result Check mode result for misfire monitor:
    Compl or Incmpl    		 - -
    OXS1 Test Result Check mode result for HO2 sensor (bank 1):
    Compl or Incmpl    		 - -
    OXS2 Test Result Check mode result for HO2 sensor (bank 2):
    Compl or Incmpl    		 - -
    A/F Test Results #2 Check mode result for air-fuel ratio sensor (bank 2):
    Compl or Incmpl    		 - -
    A/F Test Results #1 Check mode result for air-fuel ratio sensor (bank 1):
    Compl or Incmpl    		 - -
    Complete Parts Monitor Comprehensive component monitor:
    Not Avl or Avail    		 - -
    Fuel System Monitor Fuel system monitor:
    Not Avl or Avail    		 - -
    Misfire Monitor Misfire monitor:
    Not Avl or Avail    		 - -
    EGR/VVT Monitor EGR/VVT monitor:
    Not Avl or Avail    		 - -
    EGR/VVT Monitor EGR/VVT monitor:
    Compl or Incmpl    		 - -
    O2S (A/FS) Heater Monitor O2S (A/FS) heater monitor:
    Not Avl or Avail    		 - -
    O2S (A/FS) Heater Monitor O2S (A/FS) heater monitor:
    Compl or Incmpl    		 - -
    O2S (A/FS) Monitor O2S (A/FS) monitor:
    Not Avl or Avail    		 - -
    O2S (A/FS) Monitor O2S (A/FS) monitor:
    Compl or Incmpl    		 - -
    A/C Monitor A/C monitor:
    Not Avl or Avail    		 - -
    A/C Monitor A/C monitor:
    Compl or Incmpl    		 - -
    2nd Air Monitor 2nd air monitor:
    Not Avl or Avail    		 - -
    2nd Air Monitor 2nd air monitor:
    Compl or Incmpl    		 - -
    EVAP Monitor EVAP monitor:
    Not Avl or Avail    		 - -
    EVAP Monitor EVAP monitor:
    Compl or Incmpl    		 - -
    Heated Catalyst Monitor Heated catalyst monitor:
    Not Avl or Avail    		 - -
    Heated Catalyst Monitor Heated catalyst monitor:
    Compl or Incmpl    		 - -
    Catalyst Monitor Catalyst monitor:
    Not Avl or Avail    		 - -
    Catalyst Monitor Catalyst monitor:
    Compl or Incmpl    		 - -
    Component Monitor ENA Comprehensive component monitor:
    Unable or Enable    		 - -
    Component Monitor CMPL Comprehensive component monitor:
    Compl or Incmpl    		 - -
    Fuel System Monitor ENA Fuel system monitor:
    Unable or Enable    		 - -
    Fuel System Monitor CMPL Fuel system monitor:
    Compl or Incmpl    		 - -
    Misfire Monitor ENA Misfire monitor:
    Unable or Enable    		 - -
    Misfire Monitor CMPL Misfire monitor:
    Compl or Incmpl    		 - -
    EGR/VVT Monitor ENA EGR/VVT monitor:
    Unable or Enable    		 - -
    EGR/VVT Monitor CMPL EGR/VVT monitor:
    Compl or Incmpl    		 - -
    Heater Monitor ENA O2S (A/FS) heater monitor:
    Unable or Enable    		 - -
    Heater Monitor CMPL O2S (A/FS) heater monitor:
    Compl or Incmpl    		 - -
    O2S (A/FS) Monitor ENA O2S (A/FS) monitor:
    Unable or Enable    		 - -
    O2S (A/FS) Monitor CMPL O2S (A/FS) monitor:
    Compl or Incmpl    		 - -
    A/C Monitor ENA A/C monitor:
    Unable or Enable    		 - -
    A/C Monitor CMPL A/C monitor:
    Compl or Incmpl    		 - -
    2nd Air Monitor ENA 2nd air monitor:
    Unable or Enable    		 - -
    2nd Air Monitor CMPL 2nd air monitor:
    Compl or Incmpl    		 - -
    EVAP Monitor ENA EVAP monitor:
    Unable or Enable    		 - -
    EVAP Monitor CMPL EVAP monitor:
    Compl or Incmpl    		 - -
    Heated Cat Monitor ENA Heated Cat monitor:
    Unable or Enable    		 - -
    Heated Cat Monitor CMPL Heated Cat monitor:
    Compl or Incmpl    		 - -
    Catalyst Monitor ENA Catalyst monitor:
    Unable or Enable    		 - -
    Catalyst Monitor CMPL Catalyst monitor:
    Compl or Incmpl    		 - -
    TC Terminal TC terminal status:
    ON or OFF    		 - -
    # Codes (Include History) #Codes:
    Min.: 0, Max.: 255    		 - Number of detected DTCs
    MIL MIL status:
    ON or OFF    		 - -
    MIL ON Run Distance MIL ON Run Distance:
    Min.: 0 km, Max.: 65535 km    		 Distance after DTC detected -
    Running Time from MIL ON Running time from MIL ON:
    Min.: 0 min, Max.: 65535 min    		 Equivalent to running time after MIL ON -
    Time after DTC Cleared Time after DTC cleared:
    Min.: 0 min, Max.: 65535 min    		 Equivalent to time after DTCs erased -
    Distance from DTC Cleared Distance after DTC cleared:
    Min.: 0 km, Max.: 65535 km    		 Equivalent to drive distance after DTCs erased -
    Warmup Cycle Cleared DTC Warm-up cycle after DTC cleared:
    Min.: 0, Max.: 255    		 - Number of warm-up cycles after DTC cleared
    Dist Batt Cable Disconnect Distance from battery cable disconnected:
    Min.: 0 km, Max.: 65535 km    		 - -
    IG OFF Elapsed Time Time after engine switch off:
    Min.: 0 min, Max.: 655350 min    		 - -
    OBD Requirements OBD requirement OBD II (California ARB) -
    Number of Emission DTC Emission related DTCs - Number of emission related DTCs
    TC and TE1 TC and TE1 terminals of DLC3:
    ON or OFF    		 - Active Test support data
    Ignition Trig. Count Ignition counter:
    Min.: 0, Max.: 65535    		 0 to 600 -
    Cylinder #1 Misfire Count Misfire count of cylinder 1:
    Min.: 0, Max.: 255    		 0 -
    Cylinder #2 Misfire Count Misfire count of cylinder 2:
    Min.: 0, Max.: 255    		 0 -
    Cylinder #3 Misfire Count Misfire count of cylinder 3:
    Min.: 0, Max.: 255    		 0 -
    Cylinder #4 Misfire Count Misfire count of cylinder 4:
    Min.: 0, Max.: 255    		 0 -
    Cylinder #5 Misfire Count Misfire count of cylinder 5:
    Min.: 0, Max.: 255    		 0 -
    Cylinder #6 Misfire Count Misfire count of cylinder 6:
    Min.: 0, Max.: 255    		 0 -
    All Cylinders Misfire Count All cylinders misfire count:
    Min.: 0, Max.: 255    		 0 to 35 -
    Misfire RPM Engine speed for first misfire range:
    Min.: 0 rpm, Max.: 6375 rpm    		 0 rpm: Misfire 0 -
    Misfire Load Engine load for first misfire range:
    Min.: 0 g/rev, Max.: 3.98 g/rev    		 0 g/rev: Misfire 0 -
    Misfire Margin Margin to detect engine misfire occurred:
    Min.: -128%, Max.: 127%    		 -128 to 127% -
    Catalyst OT MF F/C Fuel cut to prevent catalyst from overheating during misfire:
    Not Avl or Avail    		 Avail: Catalyst OT MF F/C available
    Not Avl: Catalyst OT MF F/C not available    		 -
    Cat OT MF F/C History History of fuel cut to prevent catalyst from overheating during misfire:
    ON or OFF    		 ON: Fuel cut operation history exists -
    Cat OT MF F/C Cylinder #1 Display of fuel cut operation in No. 1 cylinder (if certain level of misfire malfunction is detected):
    ON or OFF    		 ON: Fuel cut is operating -
    Cat OT MF F/C Cylinder #2 Display of fuel cut operation in No. 2 cylinder (if certain level of misfire malfunction is detected):
    ON or OFF    		 ON: Fuel cut is operating -
    Cat OT MF F/C Cylinder #3 Display of fuel cut operation in No. 3 cylinder (if certain level of misfire malfunction is detected):
    ON to OFF    		 ON: Fuel cut is operating -
    Cat OT MF F/C Cylinder #4 Display of fuel cut operation in No. 4 cylinder (if certain level of misfire malfunction is detected):
    ON or OFF    		 ON: Fuel cut is operating -
    Cat OT MF F/C Cylinder #5 Display of fuel cut operation in No. 5 cylinder (if certain level of misfire malfunction is detected):
    ON or OFF    		 ON: Fuel cut is operating -
    Cat OT MF F/C Cylinder #6 Display of fuel cut operation in No. 6 cylinder (if certain level of misfire malfunction is detected):
    ON or OFF    		 ON: Fuel cut is operating -
    A/C Magnetic Clutch Relay A/C magnetic clutch relay status:
    ON or OFF    		 - -
    Electric Fan Motor Electric fan motor:
    ON or OFF    		 - -
    Idle Fuel Cut Fuel cut idle:
    ON or OFF    		 ON: Fuel cut operating Idle Fuel Cut = "ON" when throttle valve fully closed and engine speed over 2500 rpm
    FC TAU Fuel cut TAU (Fuel cut during very light load):
    ON or OFF    		 ON: Fuel cut operating Fuel cut being performed under very light load to prevent engine combustion from becoming incomplete
    Electrical Load Signal 1 Electrical load signal:
    ON or OFF    		 - -
    Electrical Load Signal 2 Electrical load signal:
    ON or OFF    		 - -
    Electrical Load Signal 3 Electrical load signal:
    ON or OFF    		 - -
    Electrical Load Signal 4 Electrical load signal:
    ON or OFF    		 - -
    Key Unlock Signal Key unlock signal:
    ON or OFF    		 - -
    Model Code Model code - Identifying model code:
    GSE2##
    Engine Type Engine type - Identifying engine type:
    2GRFSE
    Cylinder Number Cylinder number - Identifying cylinder number:
    6
    Transmission Type Transmission type - Identifying transmission type:
    ECT 6th
    Destination Destination - Identifying destination:
    A (America)
    Model Year Model year - Identifying model year:
    2012
    System Identification System identification - Identifying engine system:
    Gasoline (gasoline engine)
    Engine Speed of Cyl #1 Engine speed for cylinder 1:
    Min.: 0 rpm, Max.: 51199 rpm    		 - Output only when Check the Cylinder Compression is performed using Active Test
    Engine Speed of Cyl #2 Engine speed for cylinder 2:
    Min.: 0 rpm, Max.: 51199rpm    		 - Output only when Check the Cylinder Compression is performed using Active Test
    Engine Speed of Cyl #3 Engine speed for cylinder 3:
    Min.: 0 rpm, Max.: 51199 rpm    		 - Output only when Check the Cylinder Compression is performed using Active Test
    Engine Speed of Cyl #4 Engine speed for cylinder 4:
    Min.: 0 rpm, Max.: 51199 rpm    		 - Output only when Check the Cylinder Compression is performed using Active Test
    Engine Speed of Cyl #5 Engine speed for cylinder 5:
    Min.: 0 rpm, Max.: 51199 rpm    		 - Output only when Check the Cylinder Compression is performed using Active Test
    Engine Speed of Cyl #6 Engine speed for cylinder 6:
    Min.: 0 rpm, Max.: 51199 rpm    		 - Output only when Check the Cylinder Compression is performed using Active Test
    Av Engine Speed of All Cyl Engine speed for all cylinders:
    Min.: 0 rpm, Max.: 51199 rpm    		 - Output only when Check the Cylinder Compression is performed using Active Test
    Received MIL from ECT Received MIL from TCM:
    ON or OFF    		 MIL illuminate instruction ON signal from ECT: ON -
    Shift Position Sig from ECT Received shift position signal from TCM Actual shift position -
    A/T Oil Temp from ECT Received ATF temperature sensor value from ECT:
    Min.: -40°C (-40°F)
    Max.: 215°C (419°F)
    • After stall test:

      Approx. 80°C (176°F)

    • Equal to ambient temperature when cold soak
    		 If the value is -40°C (-40°F) or 215°C (419°F), ATF temperature sensor circuit is open or shorted
    SPD (NO) Output shaft speed:
    Min.: 0 rpm, Max.: 12750 rpm    		 Vehicle stopped: 0 rpm -
    SPD (NT) Input shaft speed:
    Min.: 0 rpm, Max.: 12750 rpm
    • Lock up is ON (after warming up engine): Input turbine speed (NT) is equal to engine speed
    • Lock up is OFF (idling with shift lever in N): Input turbine speed (NT) is nearly equal to engine speed
    		 -
    ECT Lock up Lock up:
    ON or OFF    		 ON: Lock up is operating -

    HINT:

    • *1: If no idling conditions are specified, the transmission gear selector lever should be in the N or P position, and the A/C switch and all accessory switches should be OFF.
    • *2: Excluding throttle valve opening percentage due to Idle Speed Control (ISC).
    • *3: Data List values are only displayed when performing the following Active Test: Control the VVT System (Bank 1, 2), Control the VVT Linear (Bank 1, 2) and Control the VVT Exhaust Linear (Bank 1, 2). For other Active Test, the Data List value will be 0.
  2. ACTIVE TEST

    HINT:

    Performing an Active Test enables components including the relays, VSV (Vacuum Switching Valve) and actuators, to be operated without removing any parts. The Active Test can be performed with Techstream. Performing an Active Test as the first step of troubleshooting is one method of shortening diagnostic time.

    • Data List can be displayed during Active Test.
    1. Connect Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the tester on.
    4. Enter the following menus: Powertrain / Engine / Active Test.
    5. Perform the Active Test by referring to the below.
    Tester Display Test Part Control Range Diagnostic Note
    Control the Injection Volume Change injection volume Between -12.5 and 24.8%
    • All injectors tested at the same time
    • Perform test at 3000 rpm or less
    • Injection volume can be changed in fine graduations within control range
    Control the Injection Volume for A/F Sensor Change injection volume -12%/0%/12%
    • Perform test at 3000 rpm or less
    • Control the Injection Volume for A/F Sensor enables checking and graphing of air fuel ratio sensor and heated oxygen sensor voltage outputs
    • To conduct test, select following menu items: Active Test / Control the Injection Volume for A/F Sensor / Data List / A/F Control System / AFS Voltage B1S1, AFS Voltage B2S1, O2S B1S2 and O2S B2S2
    Activate the Fuel Pump Speed Control Fuel pump speed control ON (low speed) / OFF (high speed) Test possible when following conditions met:
    • Engine switch on (IG)
    • Engine stopped
    Activate the VSV for Evap Control Activate purge VSV control ON/OFF Only purge VSV is commanded during this test
    Control the A/C Magnet Clutch Control the A/C magnet clutch ON/OFF -
    Control the Fuel Pump / Speed Activate fuel pump (C/OPN Relay) ON/OFF Test possible when following conditions met:
    • Engine switch on (IG)
    • Engine stopped
    Connect the TC and TE1 Turn on and off TC and TE1 connection ON/OFF
    • ON: TC and TE1 connected
    • OFF: TC and TE1 disconnected
    Control the Idle Fuel Cut Prohibit Prohibit idling fuel cut control ON/OFF -
    Prohibit the Catalyst OT Misfire prevent F/C Prohibit fuel cut which prevents catalyst from overheating during misfire ON: Fuel cut is prohibited Confirm that the vehicle is stopped and engine is 3000 rpm or less
    Control the Electric Cooling Fan Control electric cooling fan ON/OFF Test possible when following conditions met:
    • Engine switch on (IG)
    • Engine stopped
    Activate the Starter Relay STARTER relay ON/OFF Test possible when following conditions met:
    • Engine switch on (IG)
    • Engine stopped
    Activate the ACC Cut Relay Active ACC relay ON/OFF Test possible when following conditions met:
    • Engine switch on (IG)
    • Engine stopped
    Control the ETCS Open/Close Slow Speed Throttle actuator Close/Open
    Open: Throttle valve opens slowly    		 Test possible when following conditions met:
    • Engine switch on (IG)
    • Engine stopped
    • Accelerator pedal fully depressed (APP: 58 degrees or more)
    Control the ETCS Open/Close Fast Speed Throttle actuator Close/Open
    Open: Throttle valve opens quickly    		 Test possible when following conditions met:
    • Engine switch on (IG)
    • Engine stopped
    • Accelerator pedal fully depressed (APP: 58 degrees or more)
    Control the VVT Linear (Bank 1) Control VVT (bank 1) -128 to 127%
    This valve added to present OCV control duty
    100%: Maximum advance
    -100%: Maximum retard
    • Engine stall or rough idle when VVT actuator operated by 100%.
    • Test possible during idle.
    • DTCs related to the VVT system may be stored due to Active Test operation, but this does not indicate a malfunction.
    Control the VVT System (Bank 1) Turn on and off OCV
    (Oil Control Valve)    		 ON/OFF
    • Engine stalls or idles roughly when OCV turned ON
    • Normal engine running or idling when OCV OFF
    • DTCs related to the VVT system may be stored due to Active Test operation, but this does not indicate a malfunction.
    Control the VVT Linear (Bank 2) Control VVT (bank 2) -128 to 127%
    • Engine stall or rough idle when VVT actuator operated by 100%.
    • Test possible during idle.
    • DTCs related to the VVT system may be stored due to Active Test operation, but this does not indicate a malfunction.
    Control the VVT System (Bank 2) Turn on and off OCV
    (Oil Control Valve)    		 ON/OFF
    • Engine stalls or idles roughly when OCV turned ON
    • Normal engine running or idling when OCV OFF
    • DTCs related to the VVT system may be stored due to Active Test operation, but this does not indicate a malfunction.
    Control the VVT Exhaust Linear (Bank 1) Control VVT (bank 1) -128 to 127%
    This valve added to present OCV control duty
    100%: Maximum retard
    -100%: Maximum advance
    • Engine stall or rough idle when VVT actuator operated by 100%.
    • Test possible during idle.
    • DTCs related to the VVT system may be stored due to Active Test operation, but this does not indicate a malfunction.
    Control the VVT Exhaust Linear (Bank 2) Control VVT (bank 2) -128 to 127%
    • Engine stall or rough idle when VVT actuator operated by 100%.
    • Test possible during idle.
    • DTCs related to the VVT system may be stored due to Active Test operation, but this does not indicate a malfunction.
    Control the Injection Timing #1 Control injection timing #1 -16°CA to 15.87°CA Test possible while vehicle stopped and engine idling.
    Control the Injection Timing #2 Control injection timing #2 -16°CA to 15.87°CA Test possible while vehicle stopped and engine idling.
    Control the Injection Timing #3 Control injection timing #3 -16°CA to 15.87°CA Test possible while vehicle stopped and engine idling.
    Control the Injection Timing #4 Control injection timing #4 -16°CA to 15.87°CA Test possible while vehicle stopped and engine idling.
    Control the Injection Timing #5 Control injection timing #5 -16°CA to 15.87°CA Test possible while vehicle stopped and engine idling.
    Control the Injection Timing #6 Control injection timing #6 -16°CA to 15.87°CA Test possible while vehicle stopped and engine idling.
    Activate the Vacuum Pump Vacuum pump ON/OFF -
    Activate the VSV for Vent Valve Vent valve ON/OFF -
    Control the Target Fuel Pressure Control the target fuel pressure -12.5 to 24.8% Confirm that the vehicle is stopped and engine is 3000 rpm or less
    Control the Injection Way Perform 3 patterns in order to operate fuel injection Either/Port/Direct
    • Vehicle stopped and engine idling
    • Data List's Injection Switching Status is OK
    D-4S (A/F Control) Perform 3 patterns in order to operate fuel injection Either/Port/Direct
    • Vehicle stopped and engine idling
    • Data List's Injection Switching Status is OK
    D-4S (Fuel Cut) Perform 3 patterns in order to operate fuel injection Either/Port/Direct
    • Vehicle stopped and engine idling
    • Data List's Injection Switching Status is OK
    D-4S (Injection Volume) Perform 3 patterns in order to operate fuel injection Either/Port/Direct
    • Vehicle stopped and engine idling
    • Data List's Injection Switching Status is OK
    Control the Select Cylinder Fuel Cut Selected cylinder (cylinder #1 to #6) injector fuel cut #1/#2/#3/#4/#5/#6
    ON/OFF    		 Test possible while vehicle stopped and engine idling.*1
    Control the All Cylinders Fuel Cut Control the all cylinders fuel cut ON/OFF Test possible while vehicle stopped and engine idling.*1
    Check the Cylinder Compression*2 Check the cylinder compression pressure ON/OFF Fuel injection and ignition stop in all cylinders.
    NOTE:

    *1:

    • If the display of the Data List item Catalyst OT MF F/C item is Not Avl, perform this Active Test with the vehicle stopped and the engine idling.
    • If the display of the Data List item Catalyst OT MF F/C item is Avail, perform this Active Test as described below.
      1. Stop the engine, turn the engine switch on (IG).
      2. Enter the Control the Select Cylinder Fuel Cut.
      3. Select the cylinder for fuel cut (cylinder #1 to #6) and turn the Active Test ON (press the RIGHT or LEFT button).
      4. Start the engine.

    HINT:

    *2:

    In this Active Test, the fuel and ignition of all cylinders is cut. The engine must then be cranked for approximately 10 seconds. At this time, the speed of each cylinder is measured. If the speed of one cylinder is more than the other cylinders, it can be determined that the compression pressure of that cylinder is lower than the other cylinders.

    1. Warm up the engine.
    2. Turn the engine switch off.
    3. Connect the Techstream to the DLC3.
    4. Turn the engine switch on (IG).
    5. Turn the Techstream on.
    6. Enter the following menus: Powertrain / Engine / Active Test / Check the Cylinder Compression.

      HINT:

      To display the entire Data List, press the pull down menu button next to Primary. Then select Compression.

    7. Push the snapshot button to turn the snapshot function on.

      HINT:

      Using the snapshot function, data can be recorded during the Active Test.

    8. While the engine is not running, press the RIGHT or LEFT button to change Check the Cylinder Compression to ON.

      HINT:

      After performing the above procedure, Check the Cylinder Compression will start. Fuel injection for all cylinders is prohibited and each cylinder engine speed measurement enters standby mode.

    9. Crank the engine for about 10 seconds.

      HINT:

      Continue to crank the engine until the values change from the default value (51199 rpm).

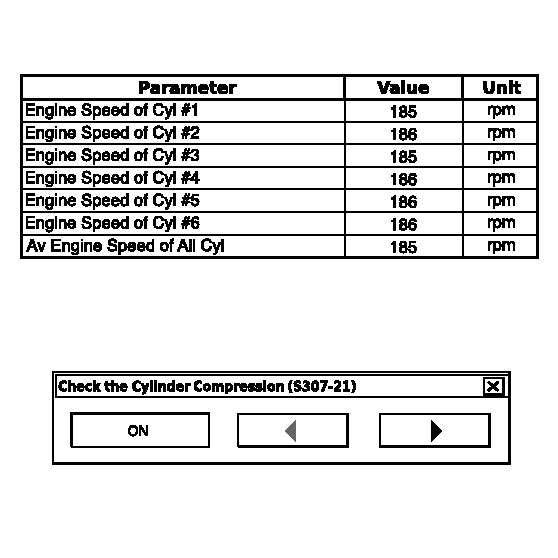

      10. Fig 1: Cylinder Engine Speed Measurement Table
      GTY393423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not crank the engine continuously for 20 seconds or more.
      • If it is necessary to crank the engine again after Check the Cylinder Compression has been changed to ON and the engine has been cranked once, press Exit to return to the Active Test menu screen. Then change Check the Cylinder Compression to ON and crank the engine.
      • Use a fully-charged battery.
    10. Monitor the engine speed (Engine Speed of Cyl #1 to #6) displayed on the Techstream.

      HINT:

      At first, the Techstream displays extremely high cylinder engine speed values. After approximately 10 seconds of engine cranking, each cylinder engine speed measurement will change to the actual engine speed.

    11. Stop cranking the engine, and then change "Check the Cylinder Compression" to OFF after the engine stops.
      NOTE:

      If the Active Test is changed to OFF while the engine is being cranked, the engine will start.

    12. Push the snapshot button to turn the snapshot function off.
    13. Select "Stored Data" on the Techstream screen, select the recorded data and display the data as a graph.

      HINT:

      If the data is not displayed as a graph, the change of the values cannot be observed.

    14. Check the change in engine speed values.

      HINT:

      As the data values of the Active Test return to their default values when cranking is stopped, the engine speed value of each cylinder cannot be observed. Therefore, it is necessary to use the data recorded with the snapshot function to check the engine speed values recorded during cranking.

  3. SYSTEM CHECK

    HINT:

    Performing a System Check enables the system, which consists of multiple actuators, to be operated without removing any parts. In addition, it can show whether or not any DTCs are set, and can detect potential malfunctions in the system. The System Check can be performed with Techstream.

    1. Connect Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check.
    5. Perform the System Check by referring to the table below.
    Tester Display Test Part Control Range Diagnostic Note
    Evaporative System Check
    (Automatic Mode)    		 Perform 6 steps in order to operate EVAP key-off monitor automatically 35°C (95°F) or less
    • If no pending DTCs are output after performing this test, system functioning normally
    • Refer to EVAP System Inspection Procedure. Refer to INSPECTION PROCEDURE
    Evaporative System Check
    (Manual Mode)    		 Perform 6 steps in order to operate EVAP key-off monitor automatically 35°C (95°F) or less
    • Used to detect malfunctioning parts
    • Refer to EVAP System Inspection Procedure. Refer to INSPECTION PROCEDURE
scientia non olet · About LEMON Manuals
