System Diagram

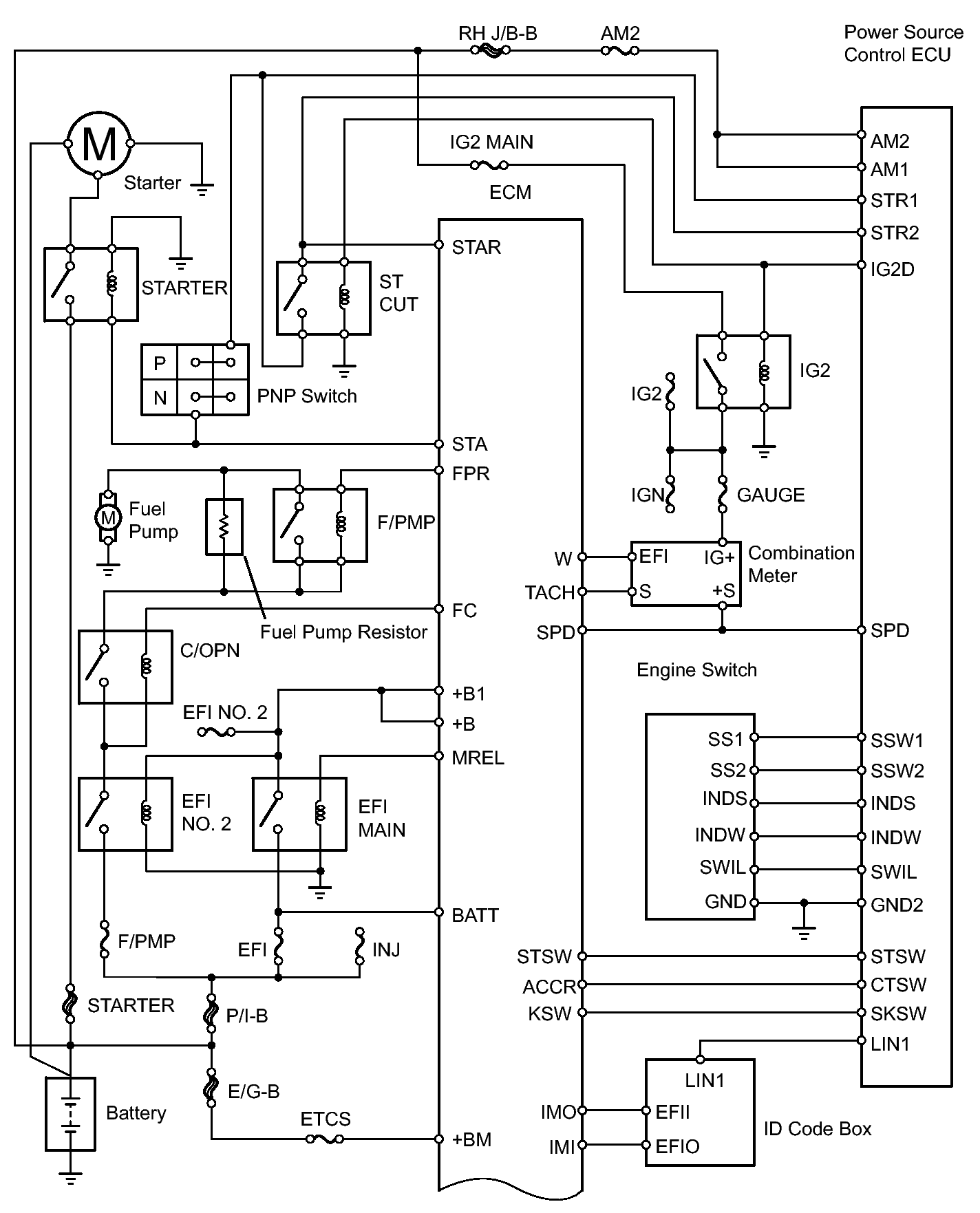

Fig 1: Identifying Engine Control (SFI) System Diagram (1 Of 5)
GTY139482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

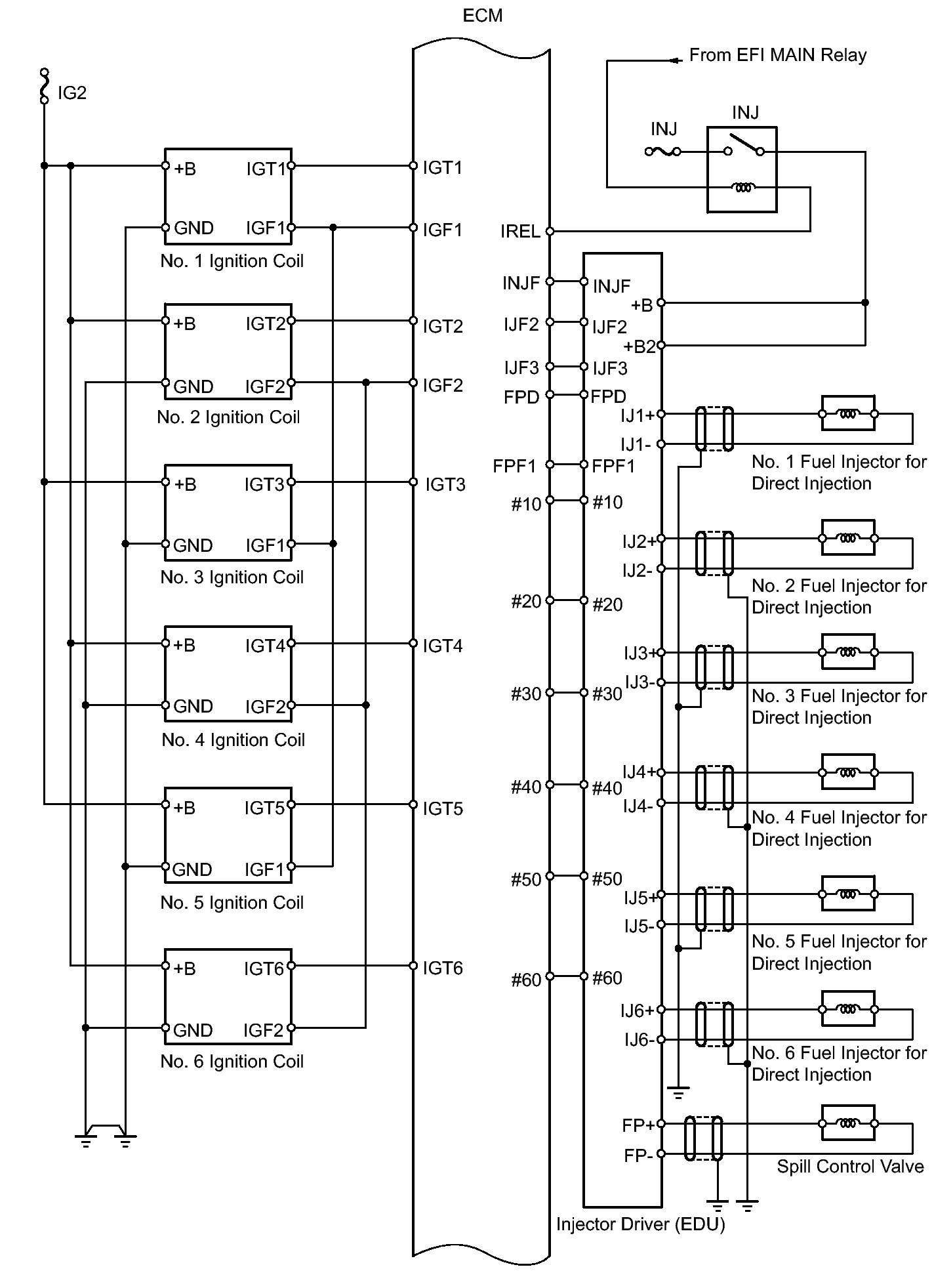

Fig 2: Identifying Engine Control (SFI) System Diagram (2 Of 5)
GTY348068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

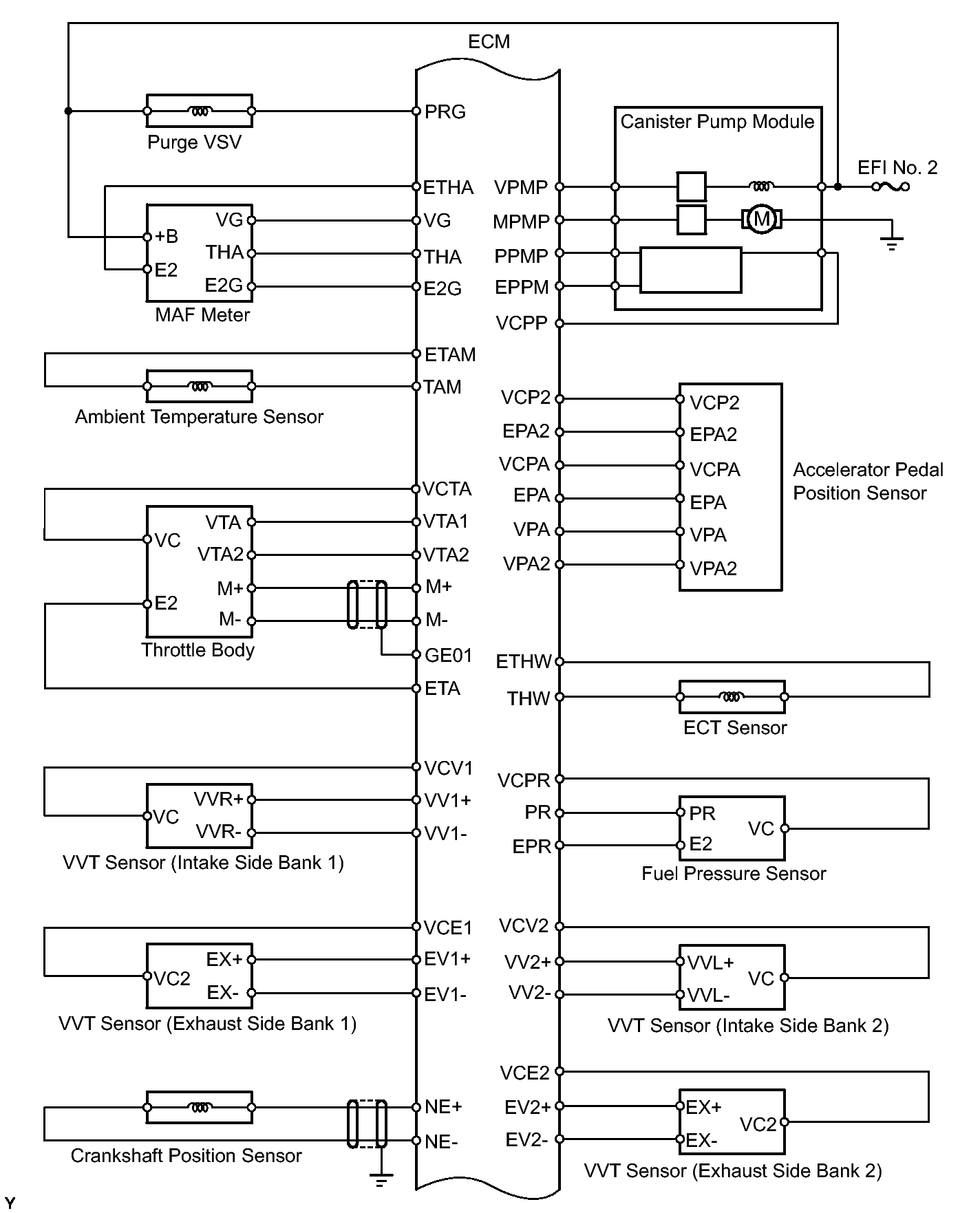

Fig 3: Identifying Engine Control (SFI) System Diagram (3 Of 5)
GTY357985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

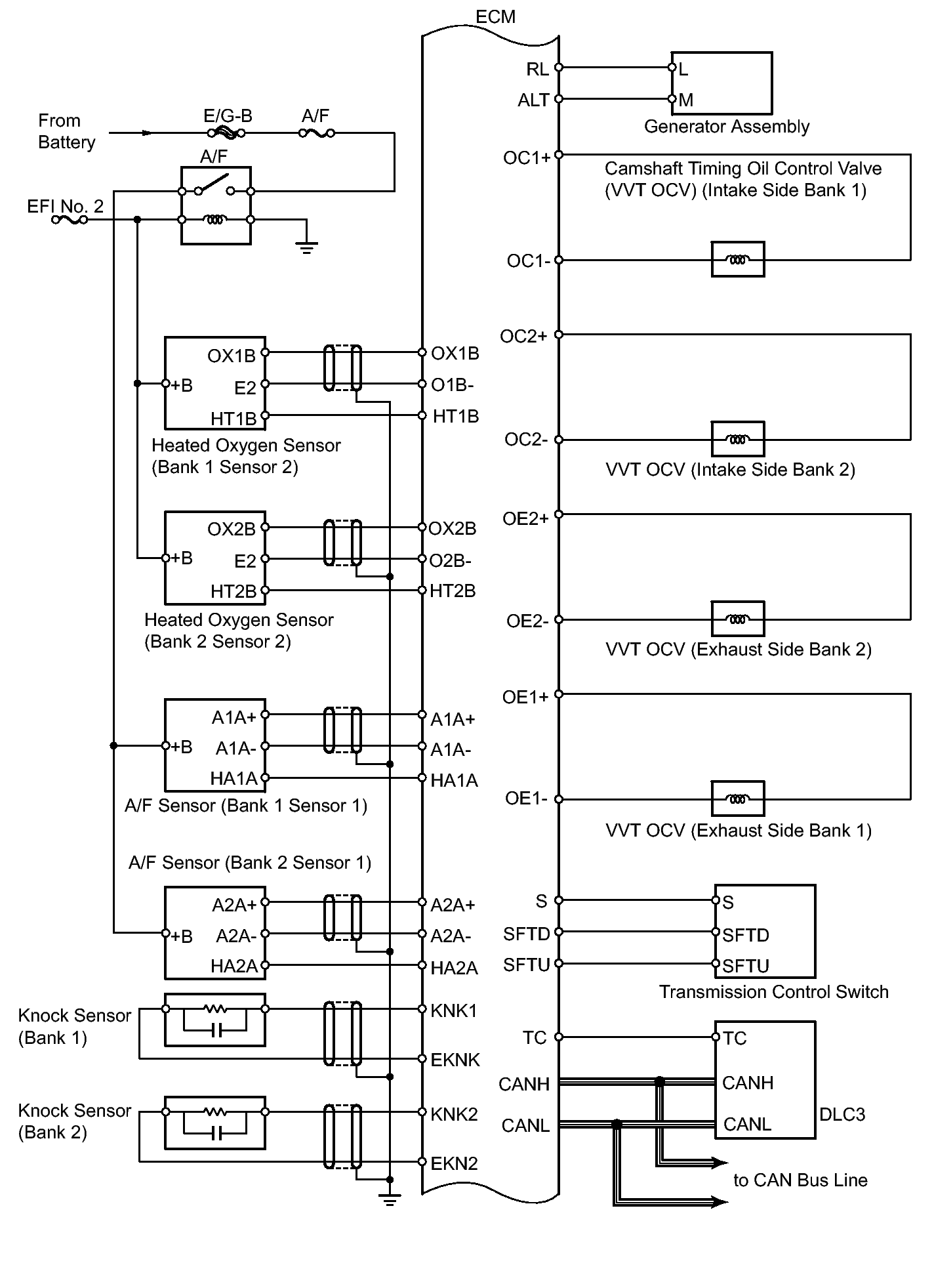

Fig 4: Identifying Engine Control (SFI) System Diagram (4 Of 5)
GTY267002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

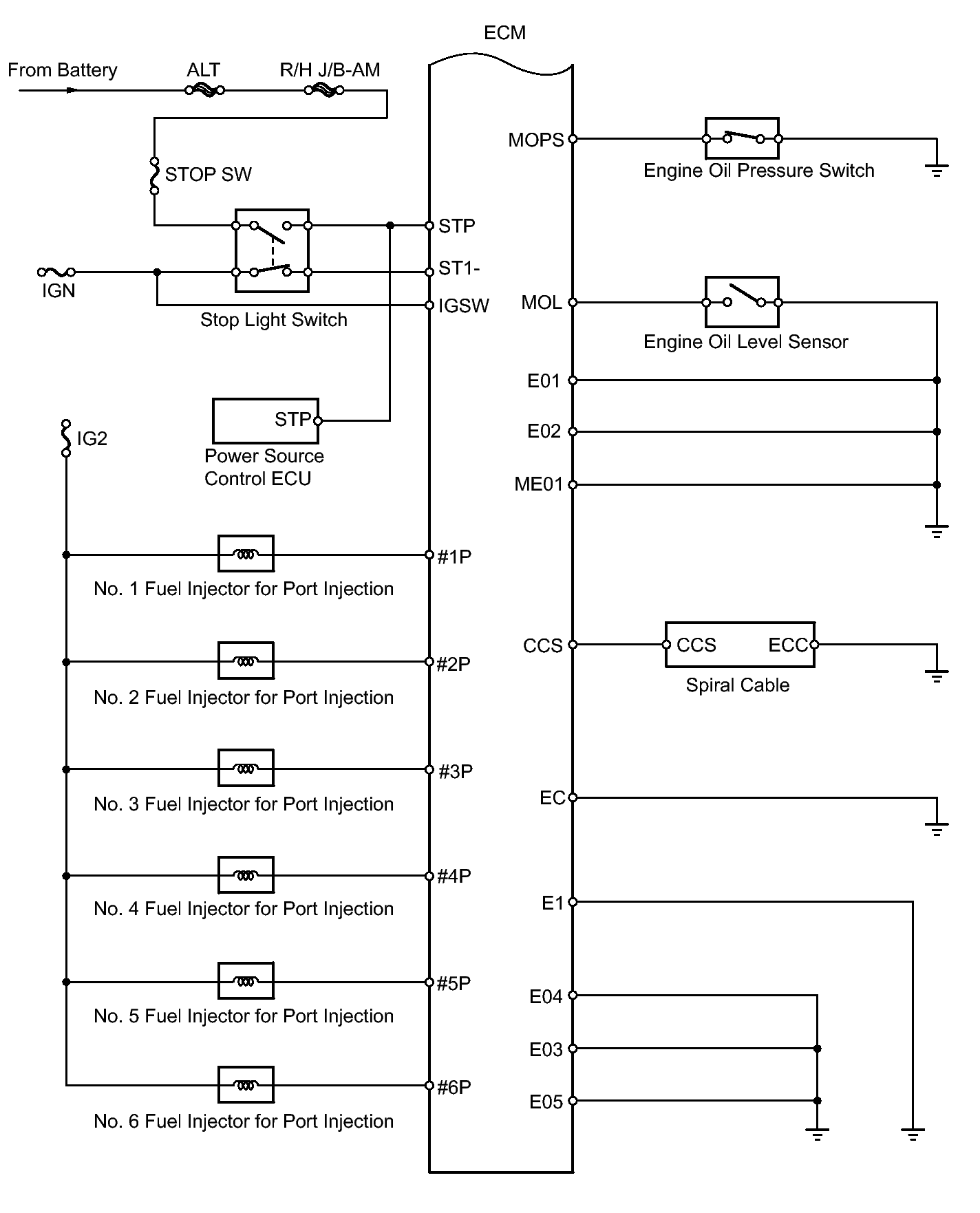

Fig 5: Identifying Engine Control (SFI) System Diagram (5 Of 5)
GTY358120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
