Theft Deterrent: Notes

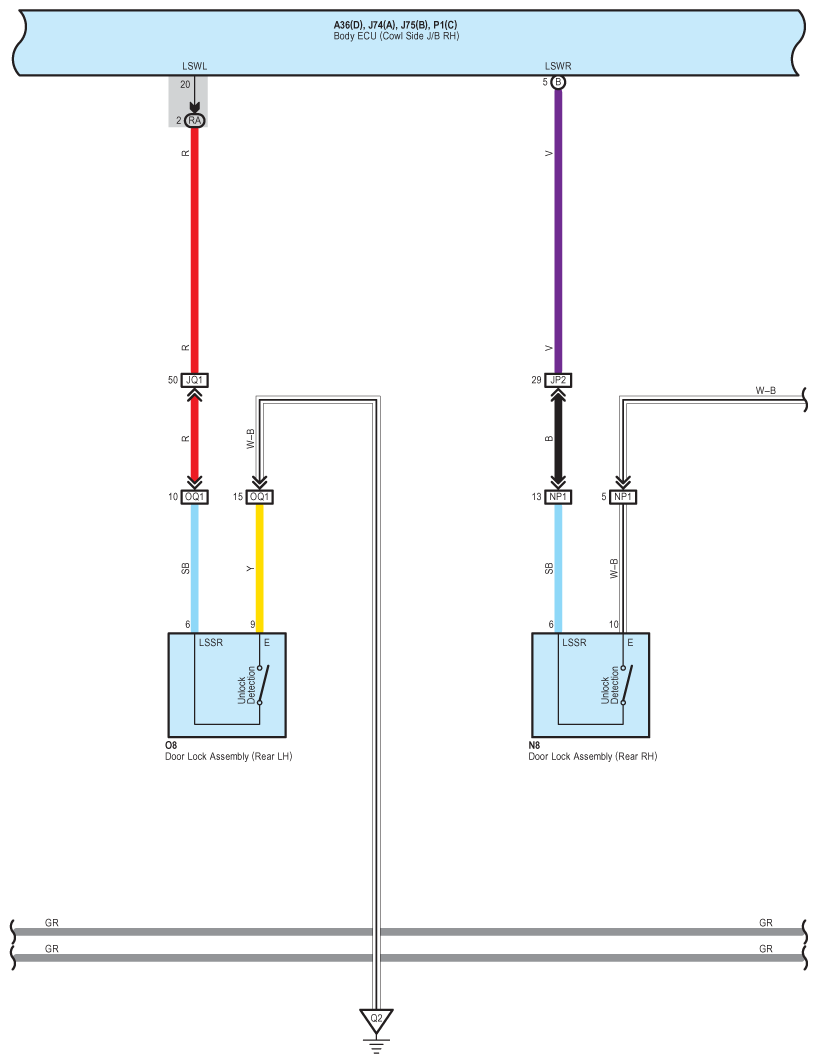

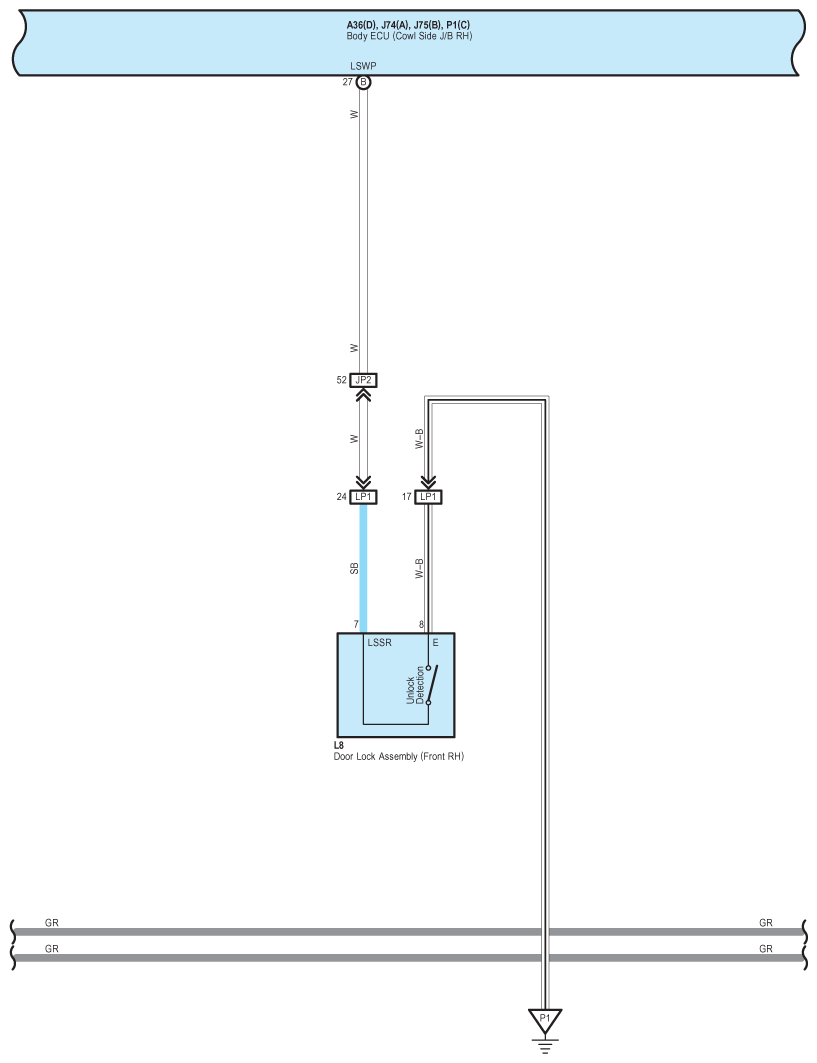

Fig 1: Theft Deterrent - Wiring Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

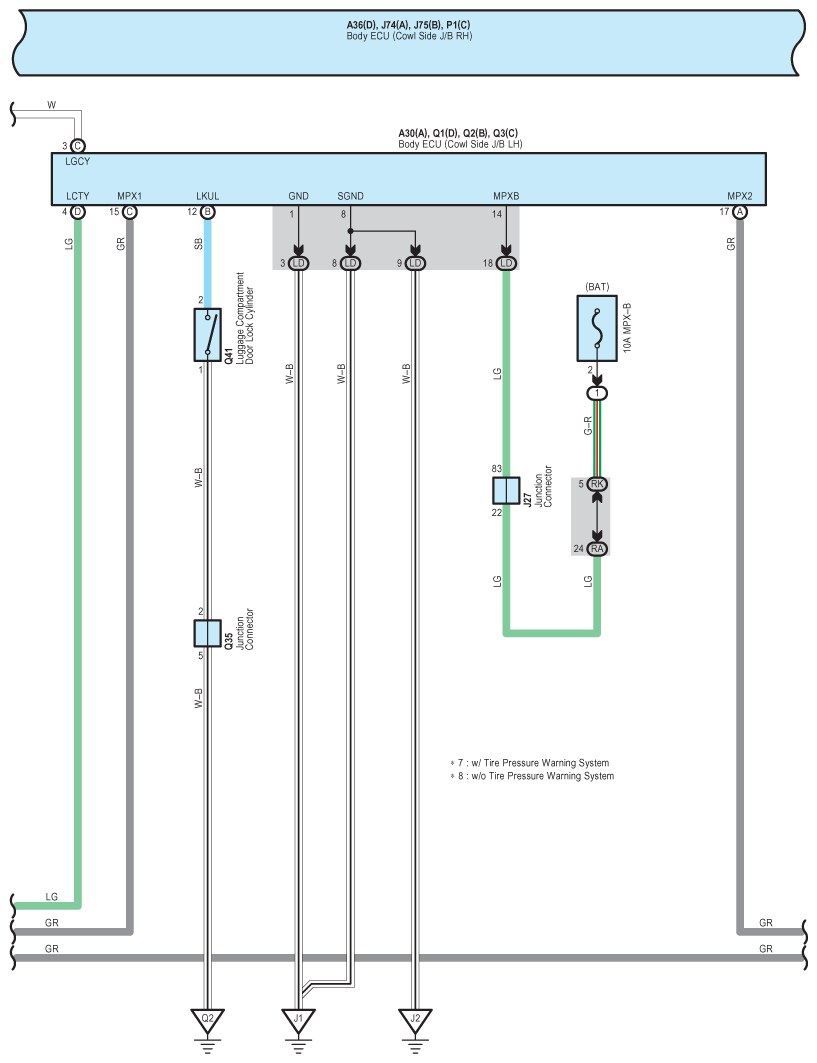

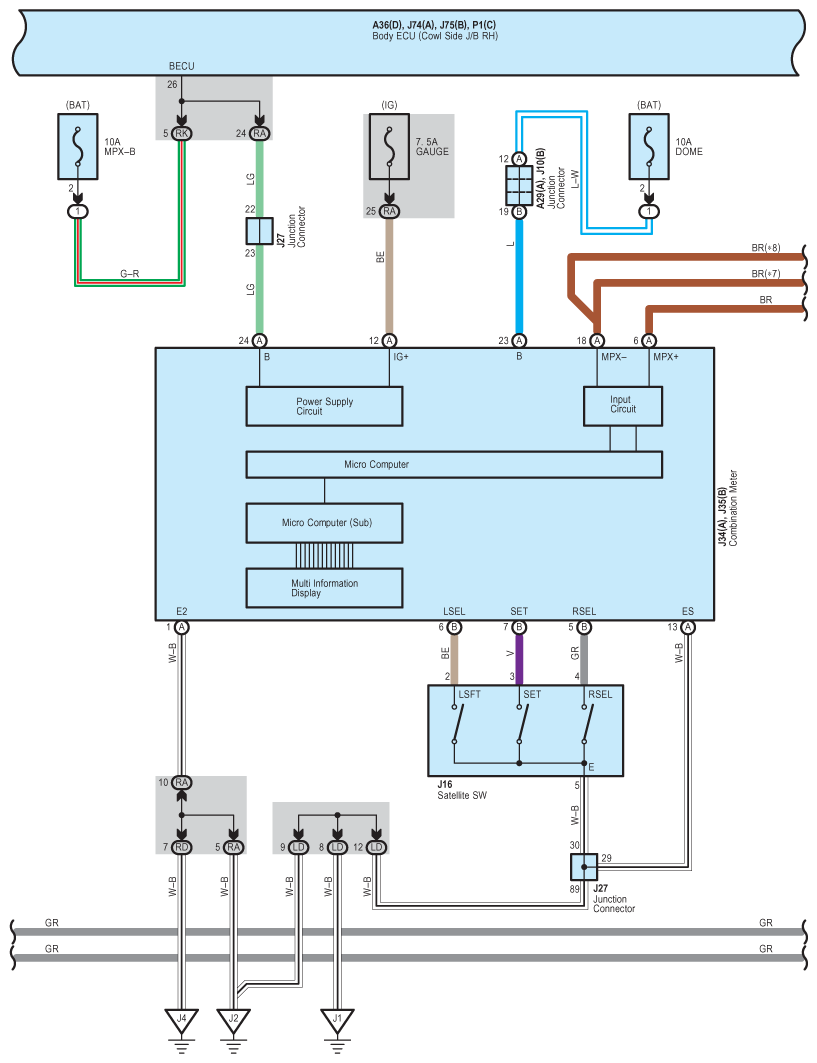

Fig 2: Theft Deterrent - Wiring Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

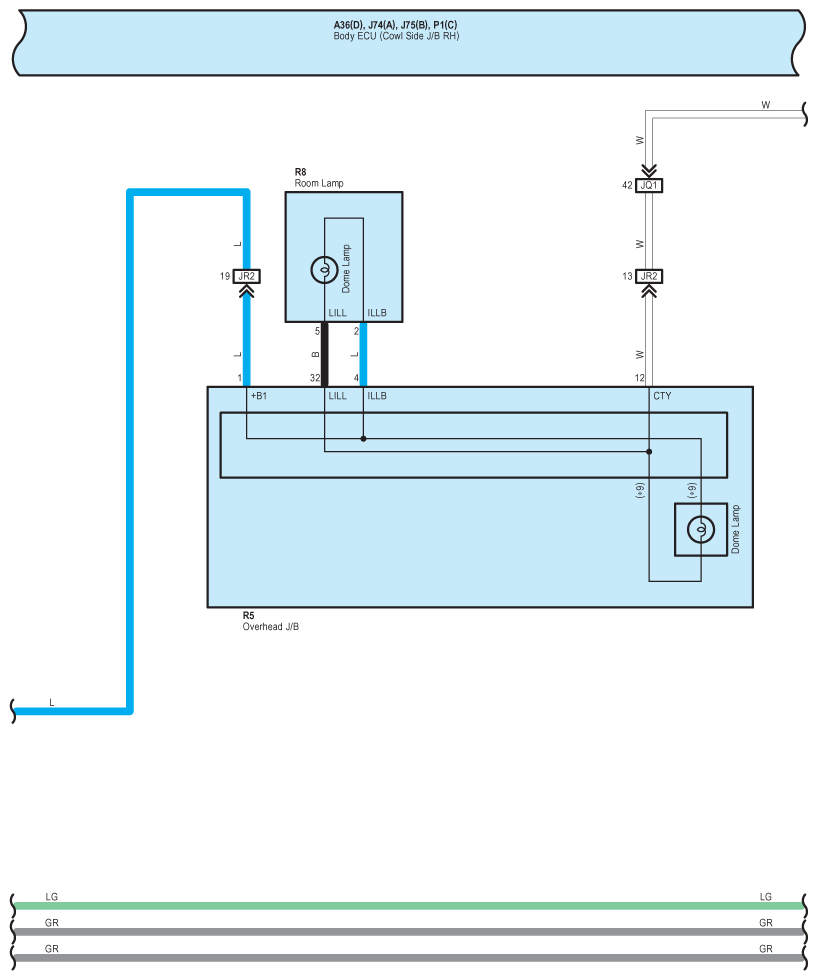

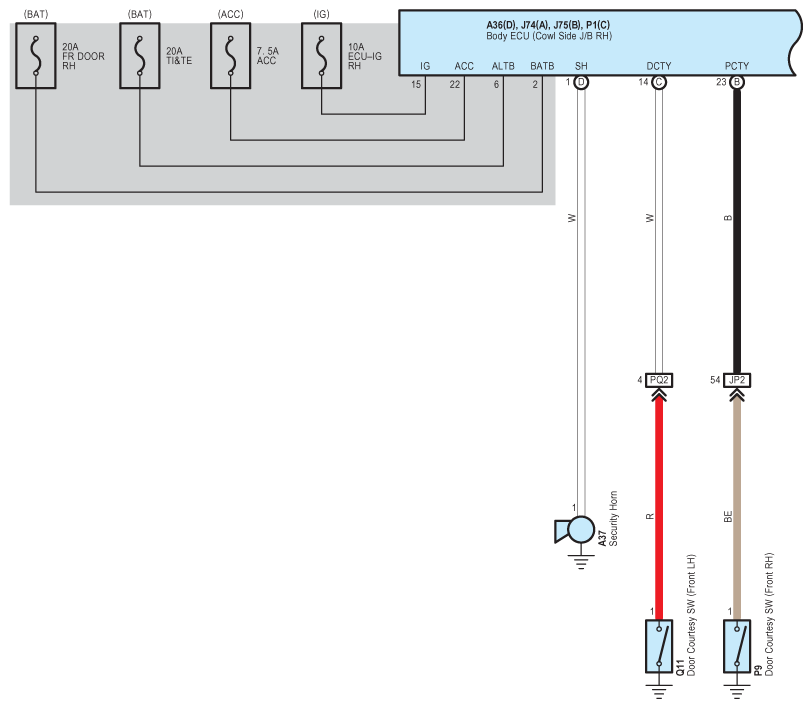

Fig 3: Theft Deterrent - Wiring Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

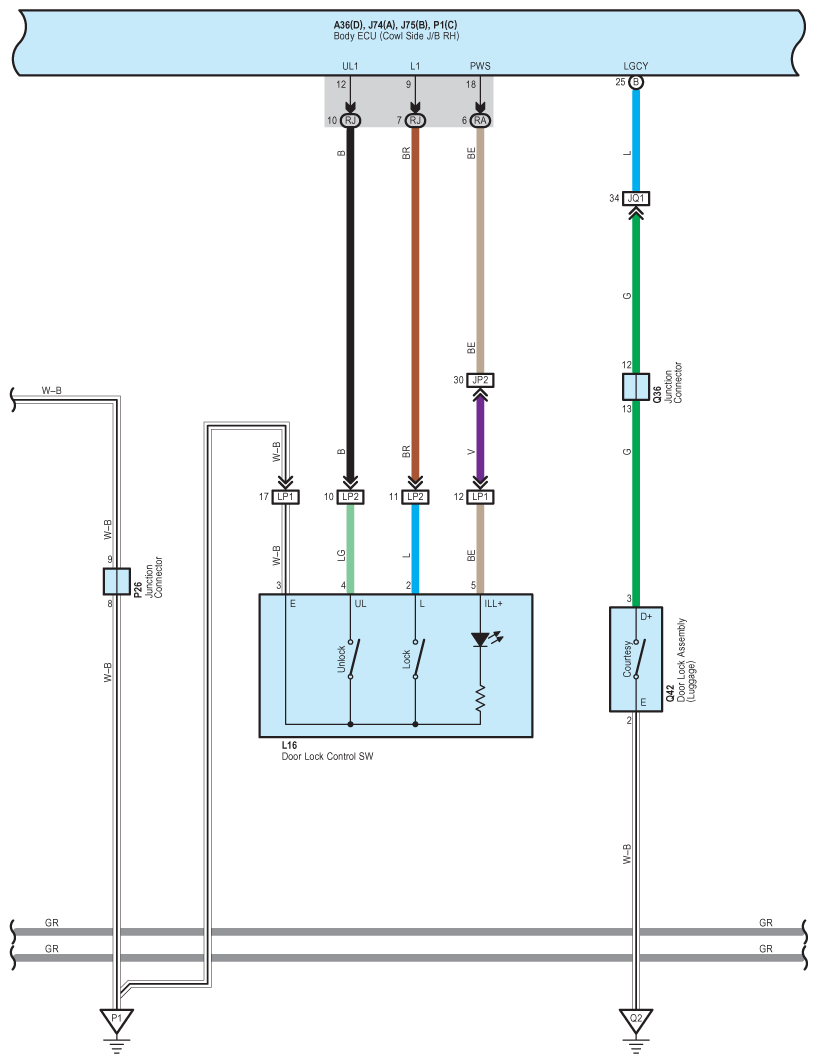

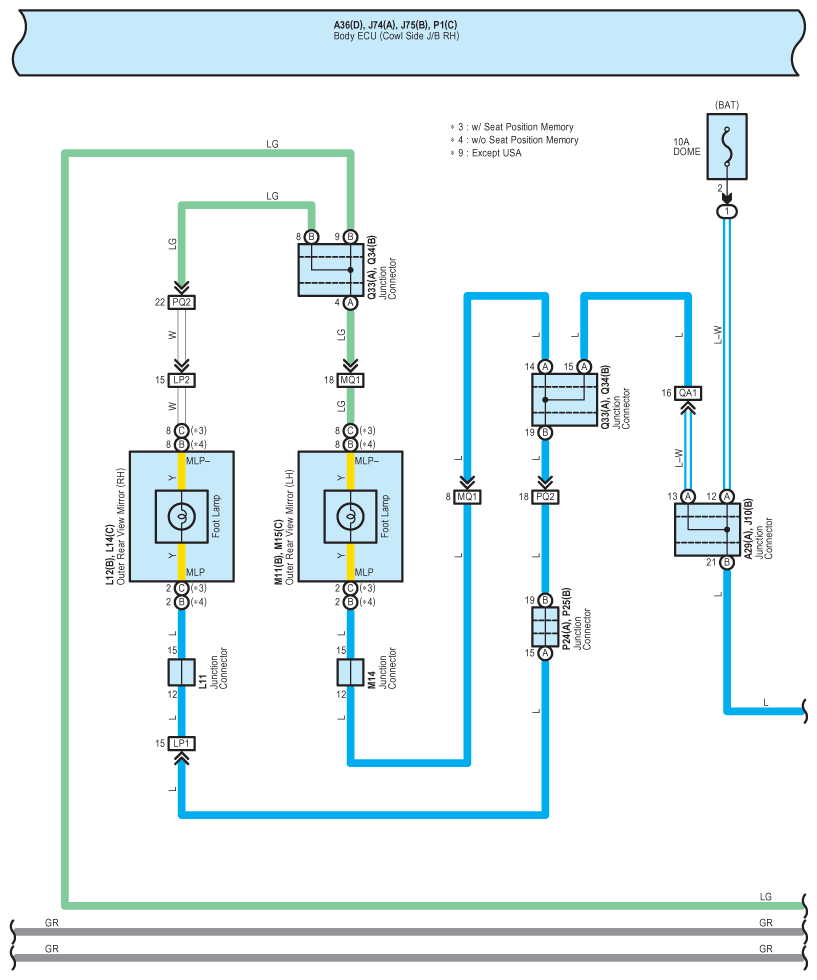

Fig 4: Theft Deterrent - Wiring Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

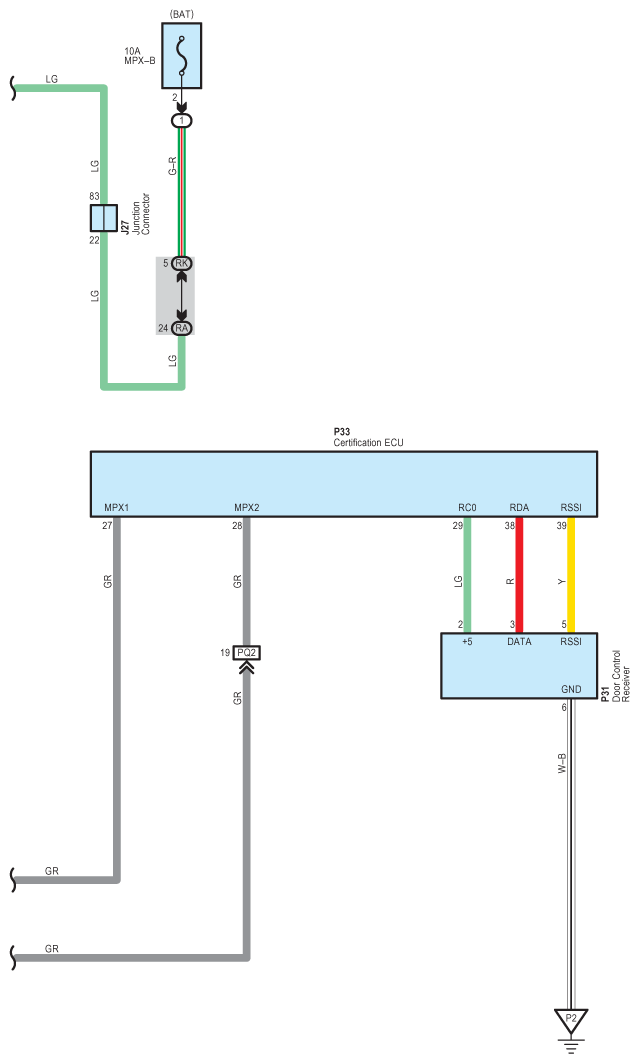

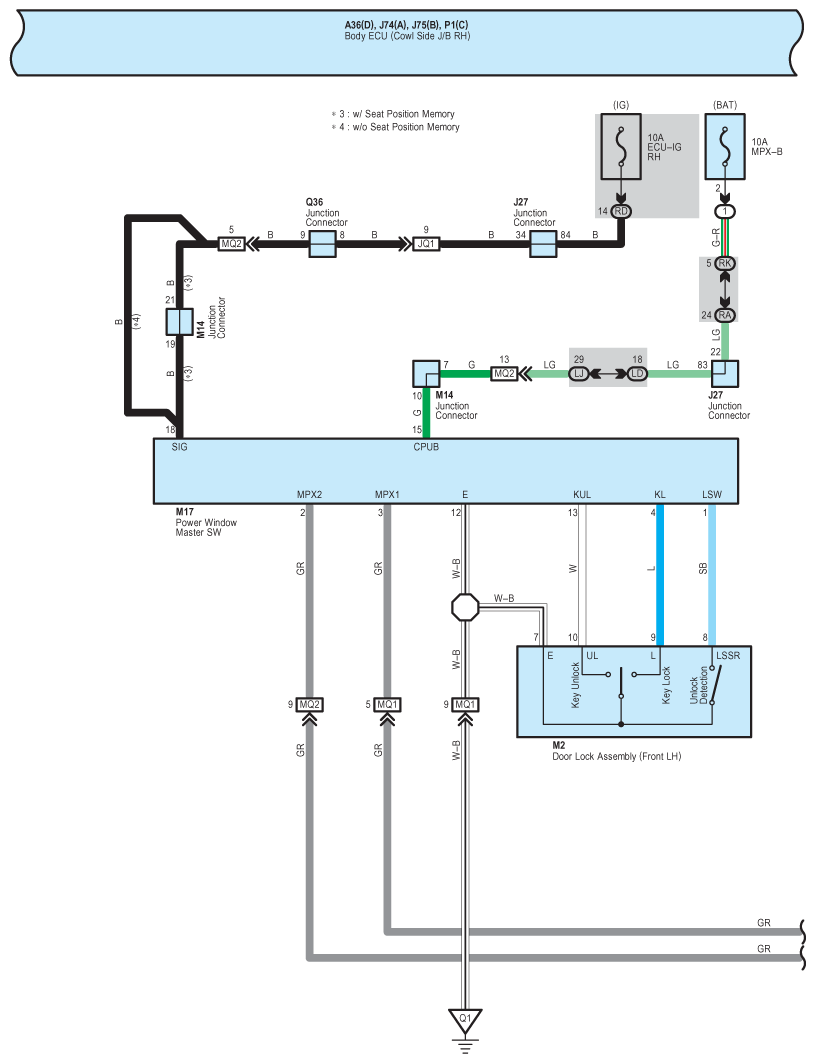

Fig 5: Theft Deterrent - Wiring Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

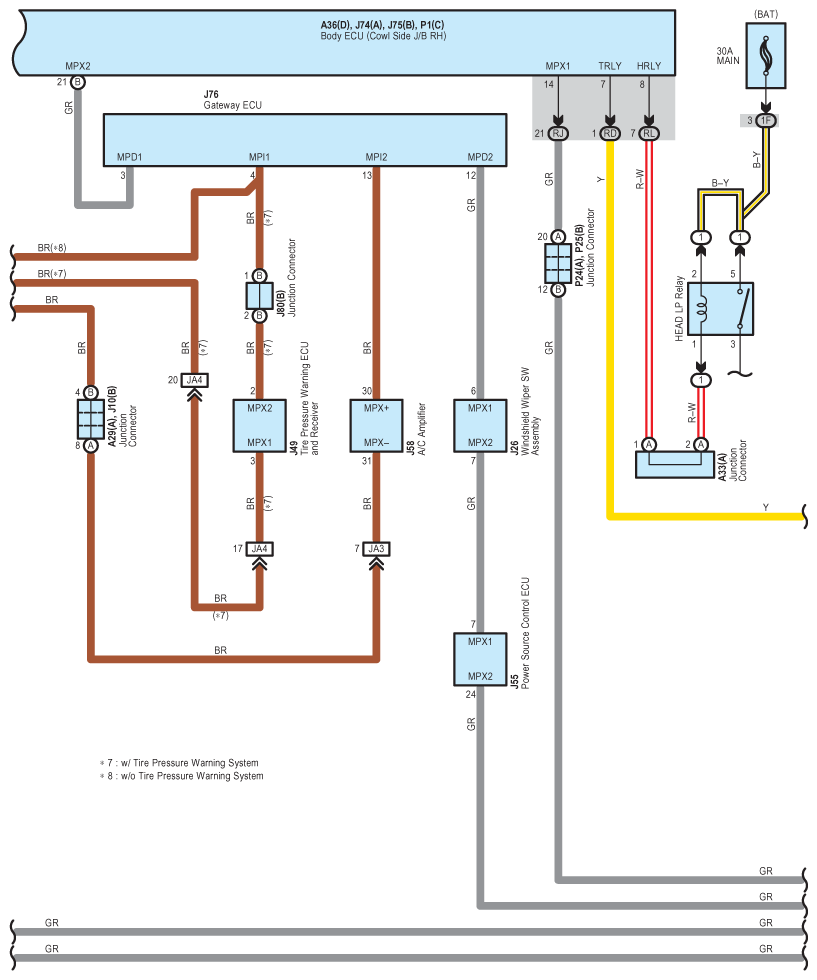

Fig 6: Theft Deterrent - Wiring Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

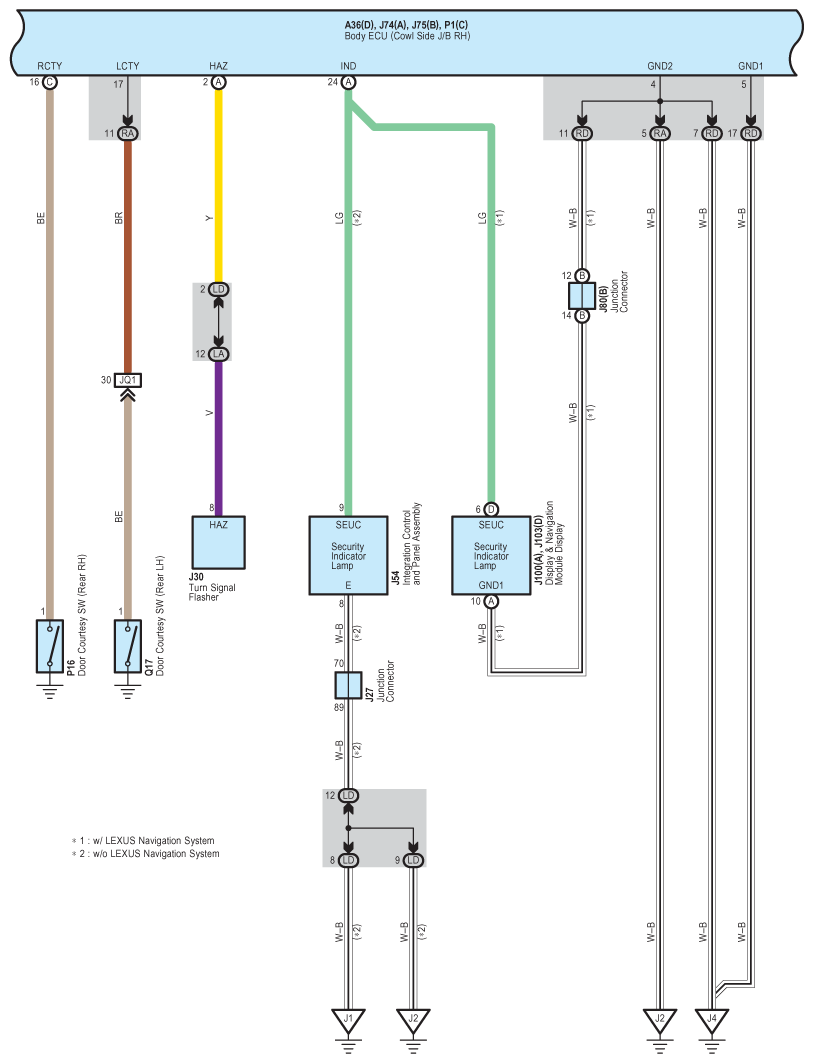

Fig 7: Theft Deterrent - Wiring Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

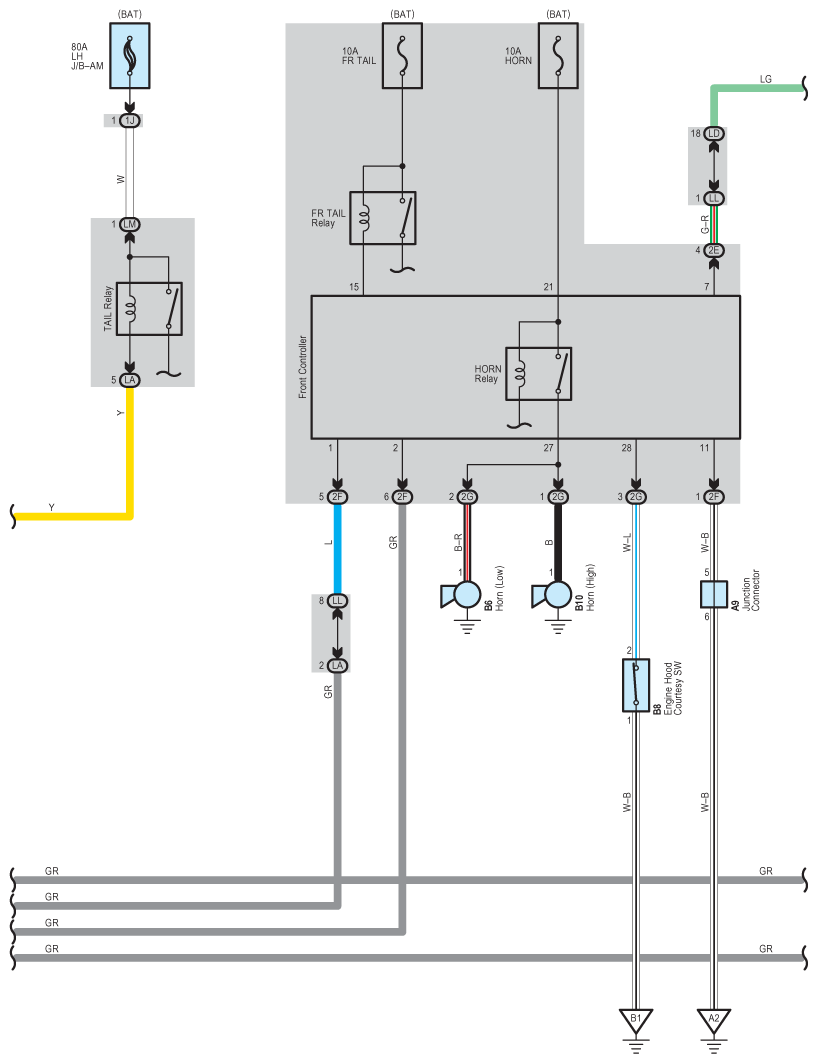

Fig 8: Theft Deterrent - Wiring Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Theft Deterrent - Wiring Diagram (9 Of 13)

Fig 10: Theft Deterrent - Wiring Diagram (10 Of 13)

Fig 11: Theft Deterrent - Wiring Diagram (11 Of 13)

Fig 12: Theft Deterrent - Wiring Diagram (12 Of 13)

Fig 13: Theft Deterrent - Wiring Diagram (13 Of 13)
