Installation

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: INSTALLATION

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

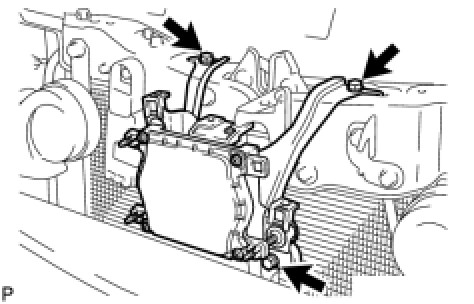

(a) Install the millimeter wave radar sensor with the 3 bolts.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(b) Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY Installation

3. INSTALL RADIATOR GRILLE PROTECTOR Installation

4. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY Adjustments

5. INSTALL COOL AIR INTAKE DUCT SEAL Installation

6. ADD WASHER FLUID Installation

7. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT Adjustments

8. PREPARATION FOR FOG LIGHT AIMING Adjustments

9. INSPECT FOG LIGHT AIMING Adjustments

10. ADJUST FOG LIGHT AIMING Adjustments
