Power Distribution Module: Locations

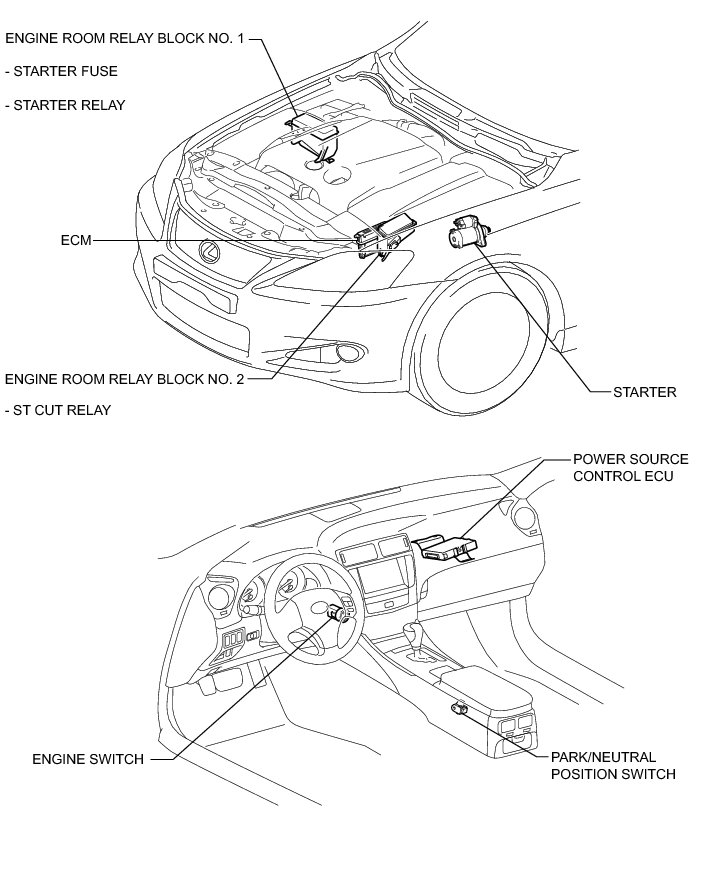

2GR-FSE STARTING: STARTING SYSTEM: PARTS LOCATION
Instrument Panel:
