Installation

2GR-FSE ENGINE CONTROL: INTEGRATION RELAY: INSTALLATION

1. INSTALL INTEGRATION NO.1 RELAY

(a) Connect the 3 connectors.

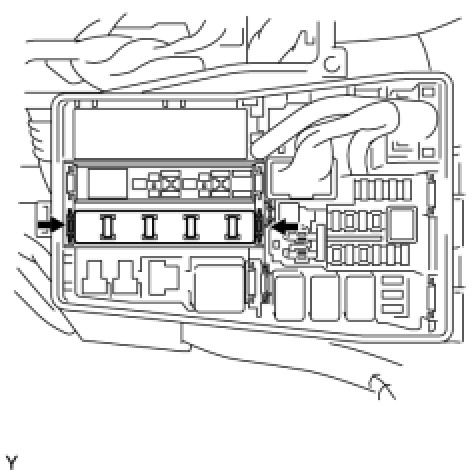

(b) Attach the integration relay to the engine room No. 2 relay block.





(c) Install the No. 2 relay block cover.

2. INSTALL ENGINE ROOM SIDE COVER LH Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
