Automatic Transmission/Transaxle





SPECIFICATIONS: A760E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

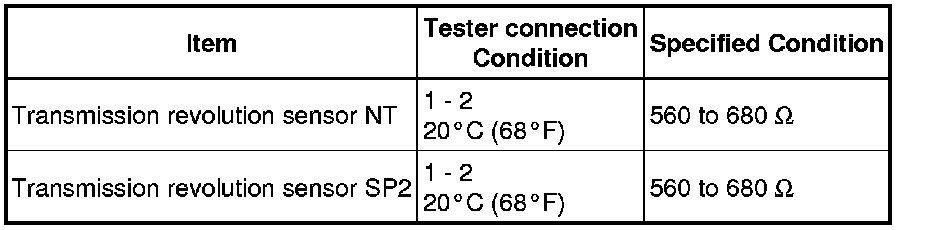

Transmission Revolution Sensor

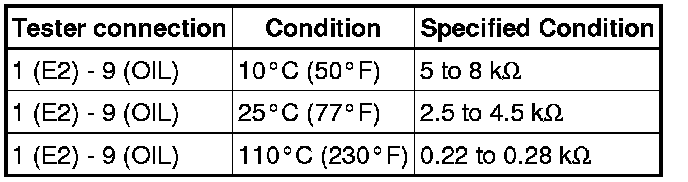

Transmission Wire

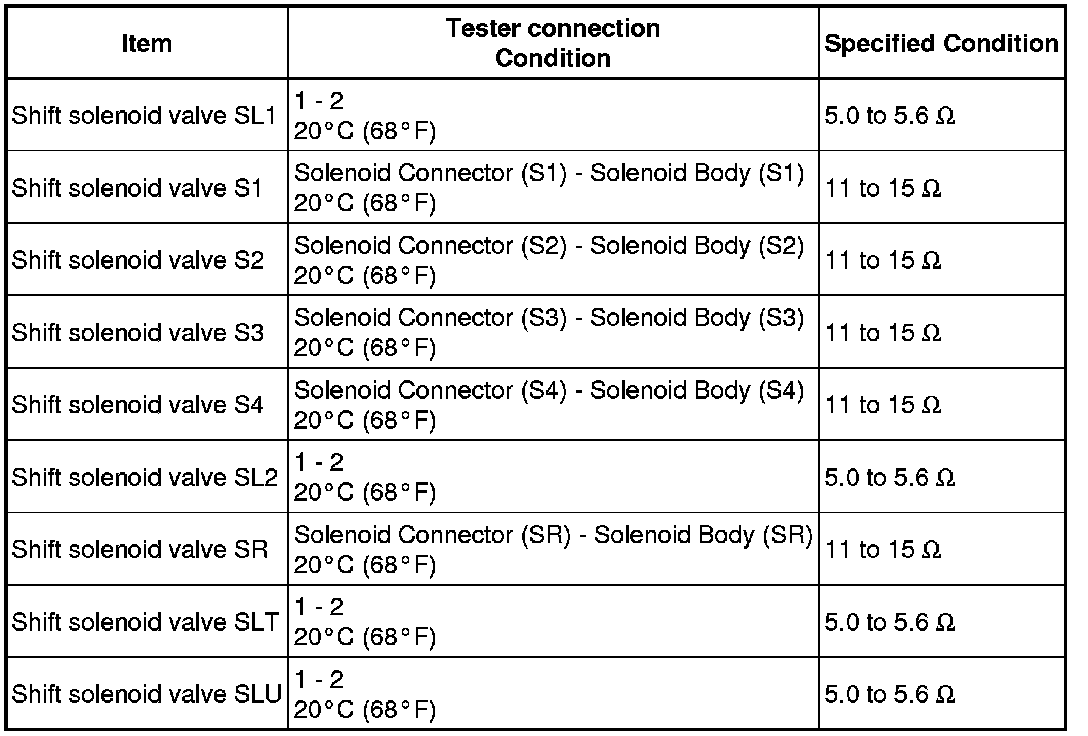

Shift Solenoid Valve

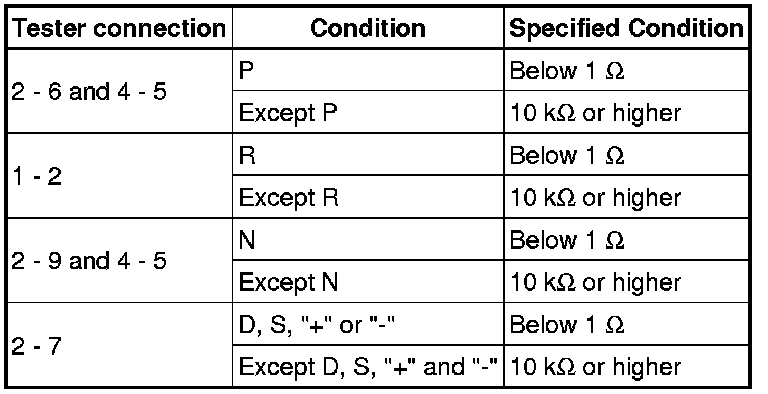

Park/Neutral Position Switch

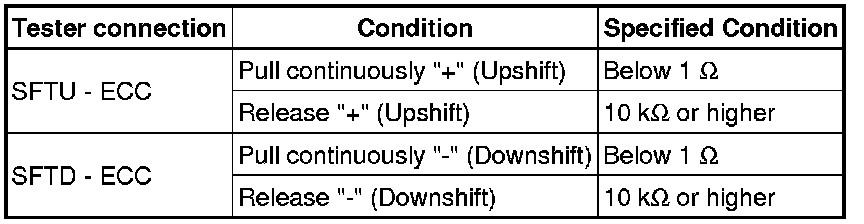

Shift Paddle Switch

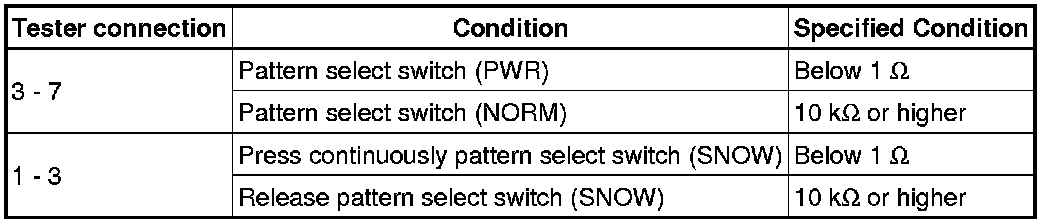

Pattern Select Switch
