Integration Relay: Installation: Installation

  1. INSTALL INTEGRATION NO. 1 RELAY
    1. Connect the 3 connectors.
    2. Attach the integration relay to the engine room No. 2 relay block.

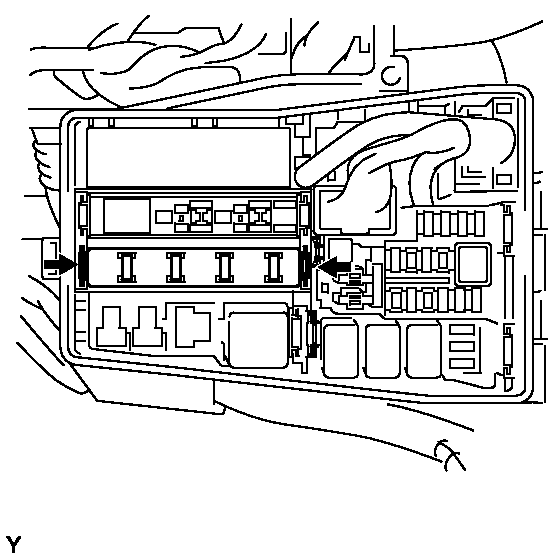

      Fig 1: Identifying Integration Relay
      GTY146359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the No. 2 relay block cover.
  2. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 79
  3. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 81
