Front Passenger Side Power Window Switch: Installation: Installation

INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
1. Install the power window regulator switch assembly with the 3 screws.

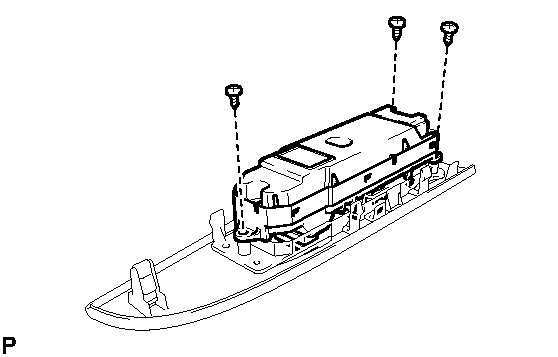

  Fig 1: Identifying Power Window Regulator Switch Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL
1. except Wood Panel:
  1. Connect the connector.
  2. Engage the 4 claws and 2 clips and install the power window regulator switch assembly with front door armrest base panel.

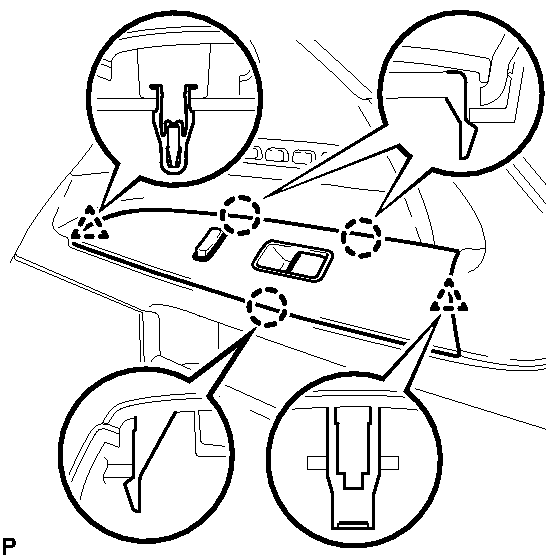

    Fig 2: Installing Armrest Base Panel Claws And Clips (w/o Wood Panel)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Wood Panel:
  1. Connect the connector.
  2. Engage the 3 claws and 2 clips and install the power window regulator switch assembly with front door armrest base panel.

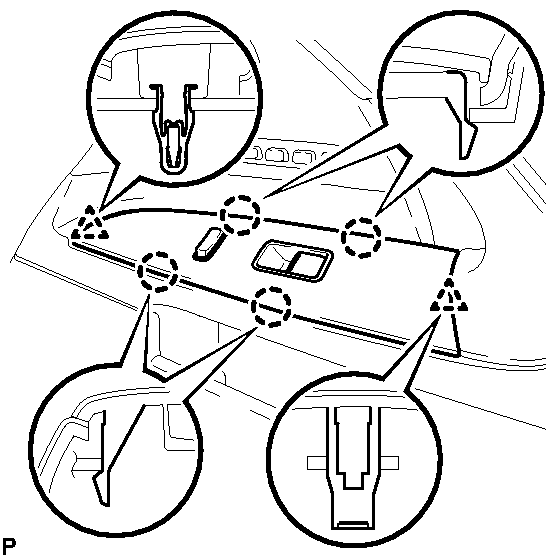

    Fig 3: Installing Armrest Base Panel Claws And Clips (w/ Wood Panel)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INITIALIZE POWER WINDOW CONTROL SYSTEM
1. When replacing the power window regulator switch assembly with a new one. Refer to INITIALIZATION .
