Skid Control Buzzer: Installation: Installation

INSTALL SKID CONTROL BUZZER ASSEMBLY
1. Connect the connector to the skid control buzzer assembly.

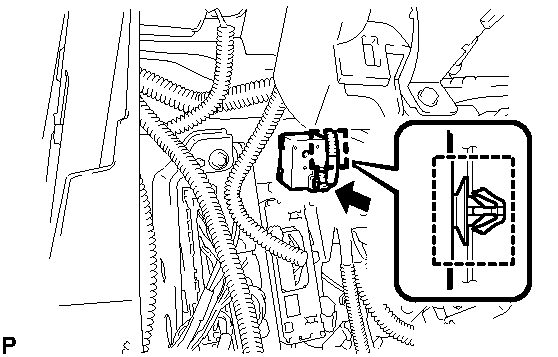

  Fig 1: Identifying Clamp And Skid Control Buzzer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the clamp and install the skid control buzzer assembly.
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 24
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 25
INSTALL INSTRUMENT SIDE PANEL LH . Refer to INSTALLATION - Step 26
INSTALL FRONT DOOR OPENING TRIM COVER LH . Refer to INSTALLATION - Step 15
INSTALL DOOR SCUFF PLATE ASSEMBLY LH . Refer to INSTALLATION - Step 16
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SRS WARNING LIGHT
HINT:

Refer to DIAGNOSIS SYSTEM .
