Power Source Control Ecu: Components: Illustration

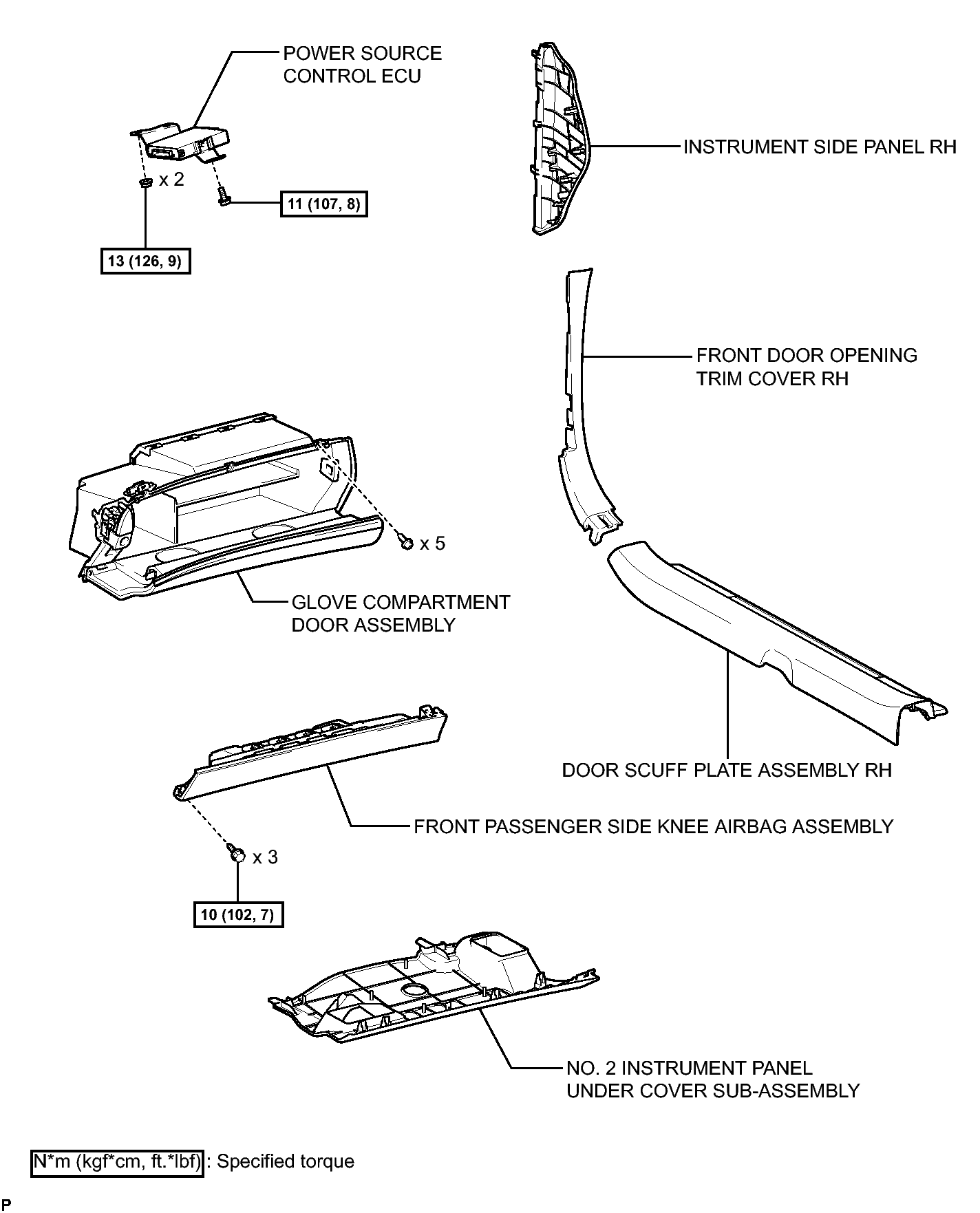

Fig 1: Identifying Power Source Control ECU Replacement Components With Torque Specifications
GTY359314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
