Automatic Transmission Unit: Components: Illustration

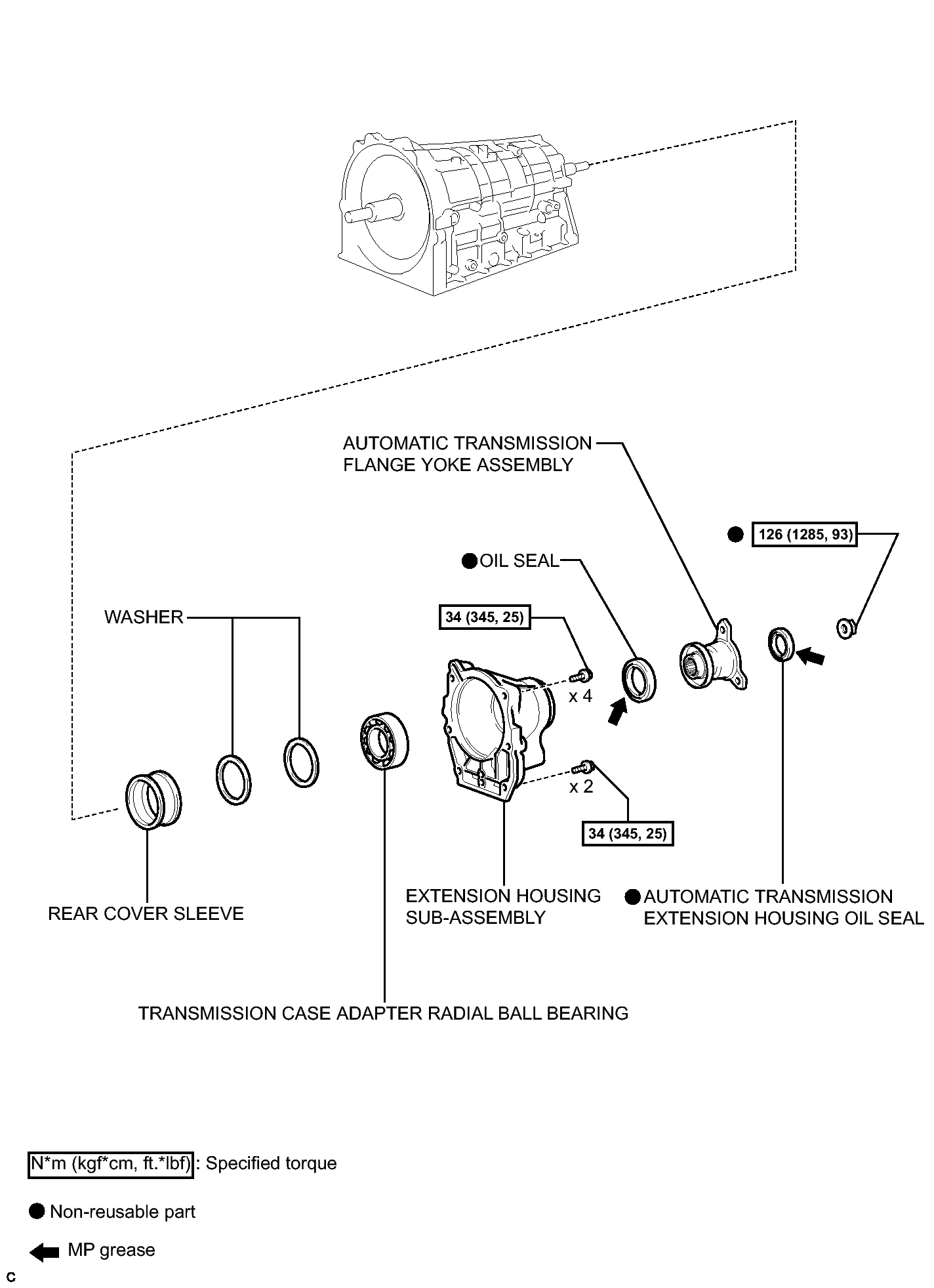

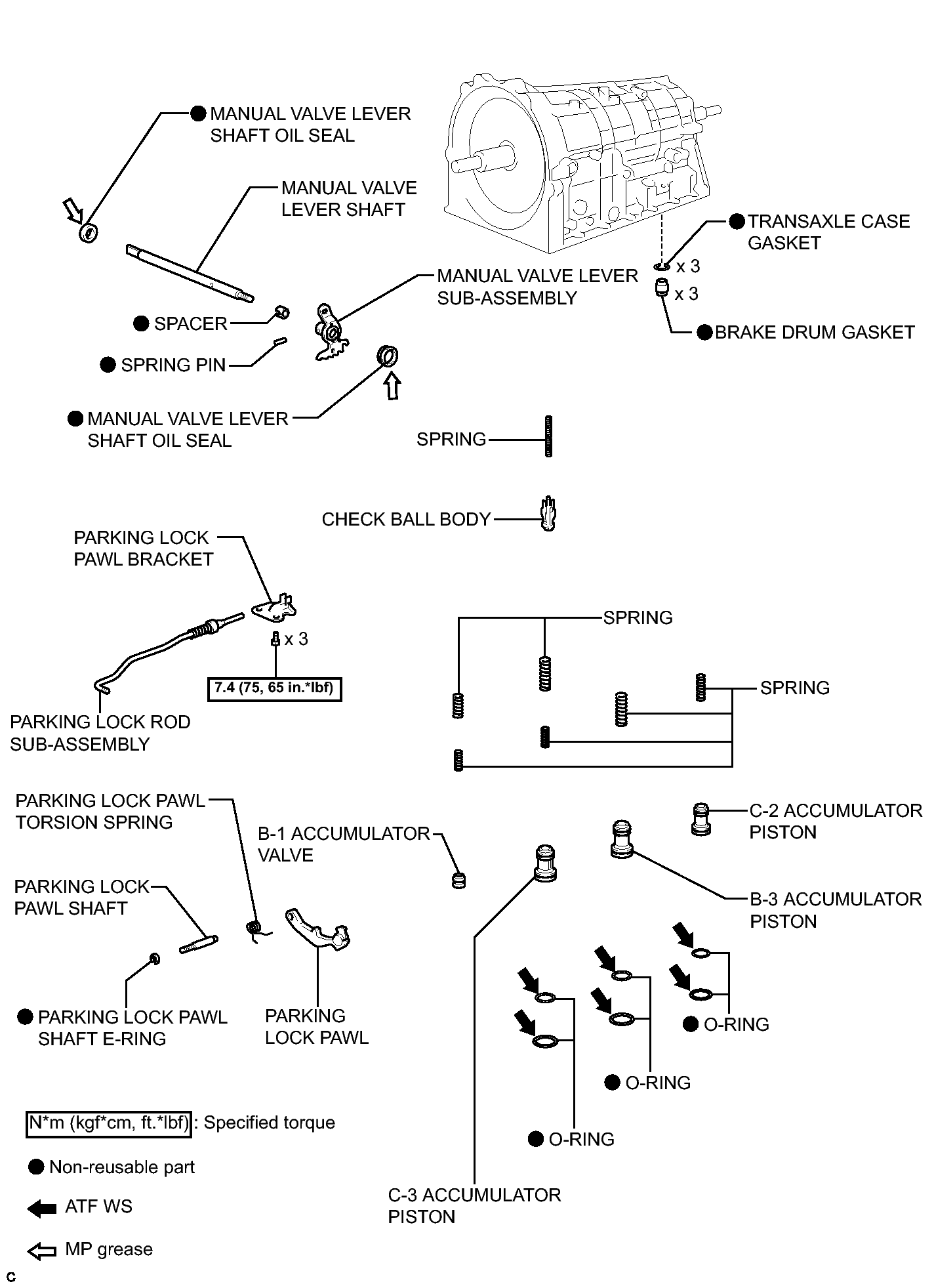

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (1 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

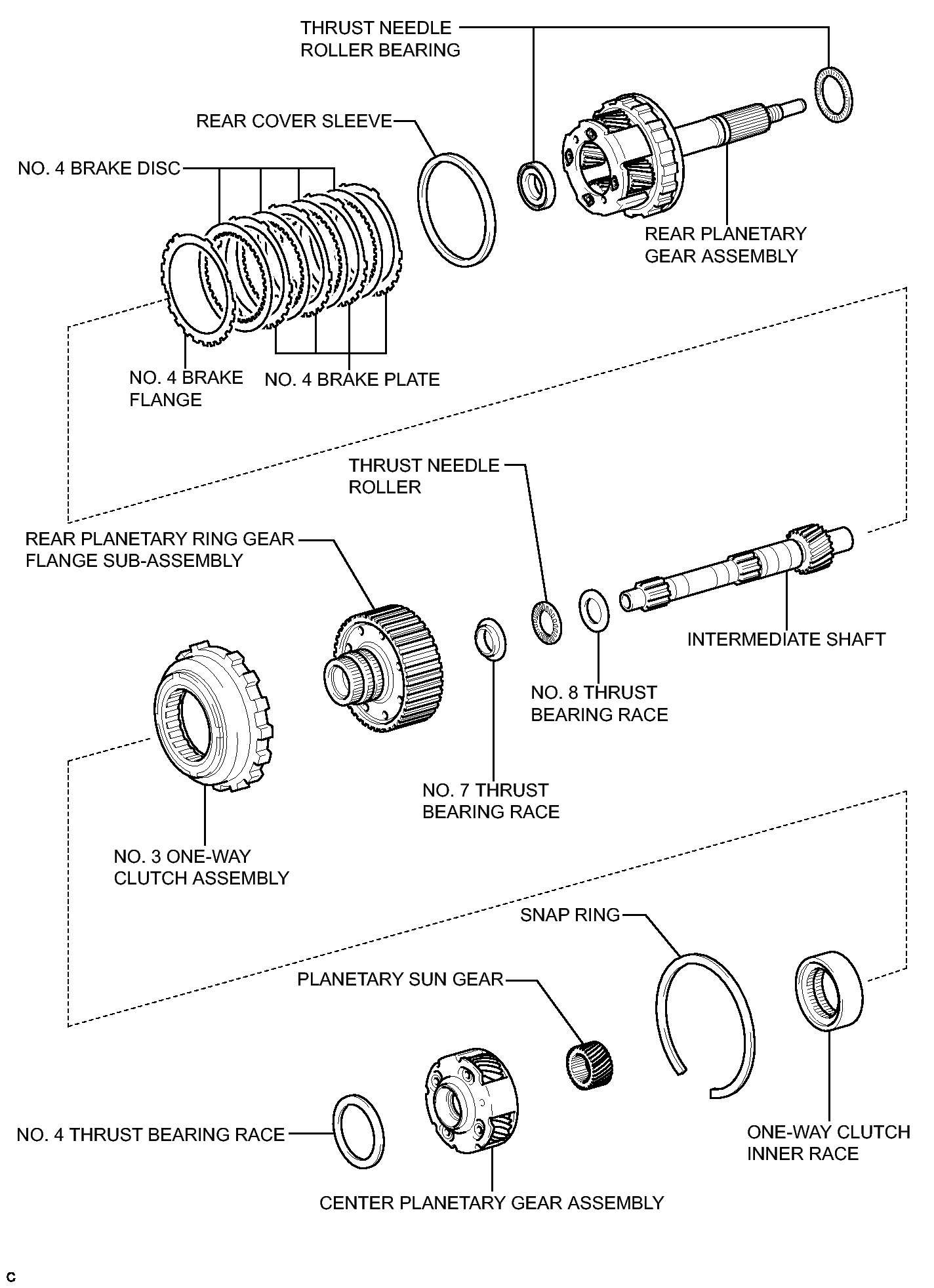

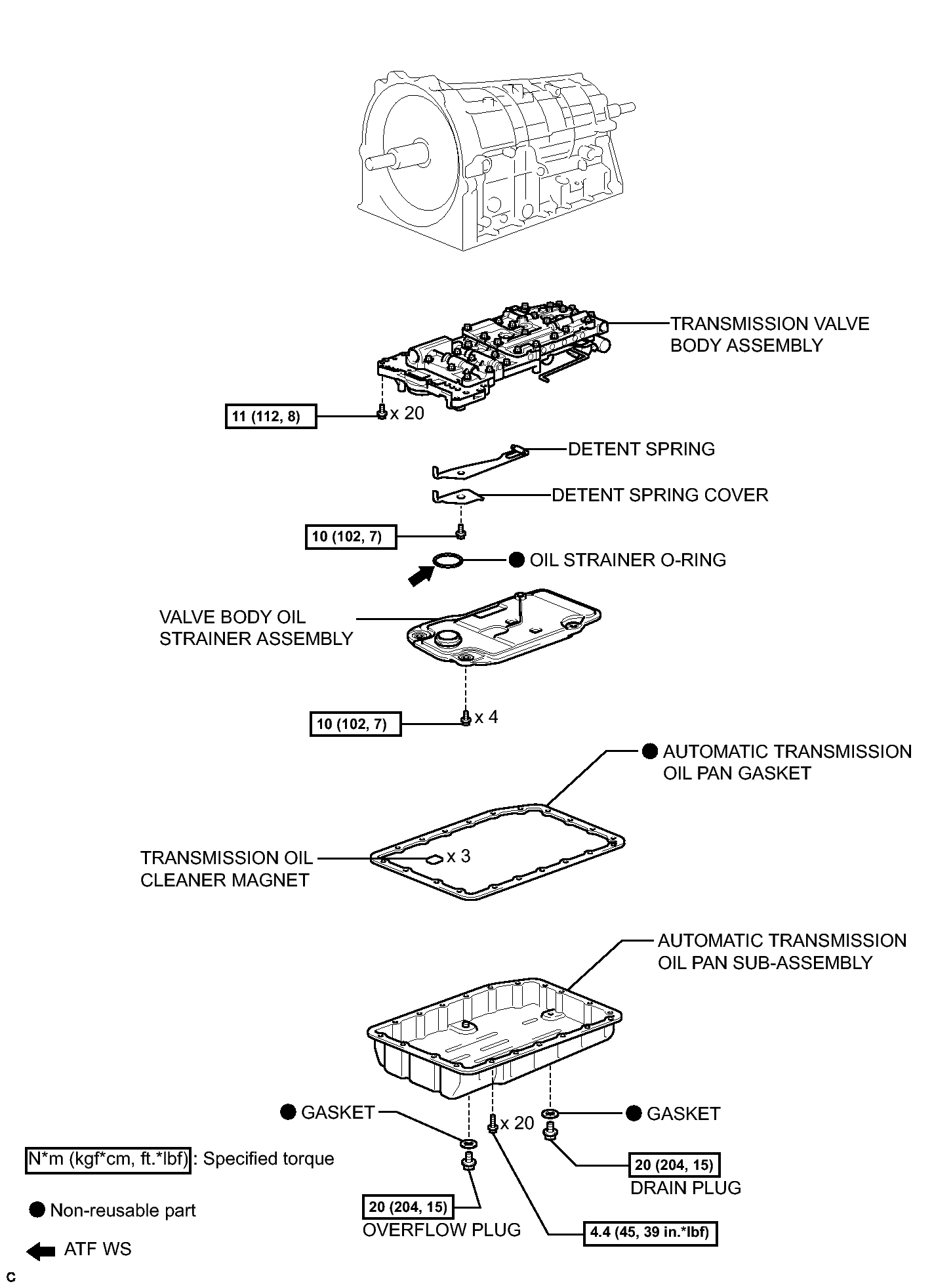

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (2 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

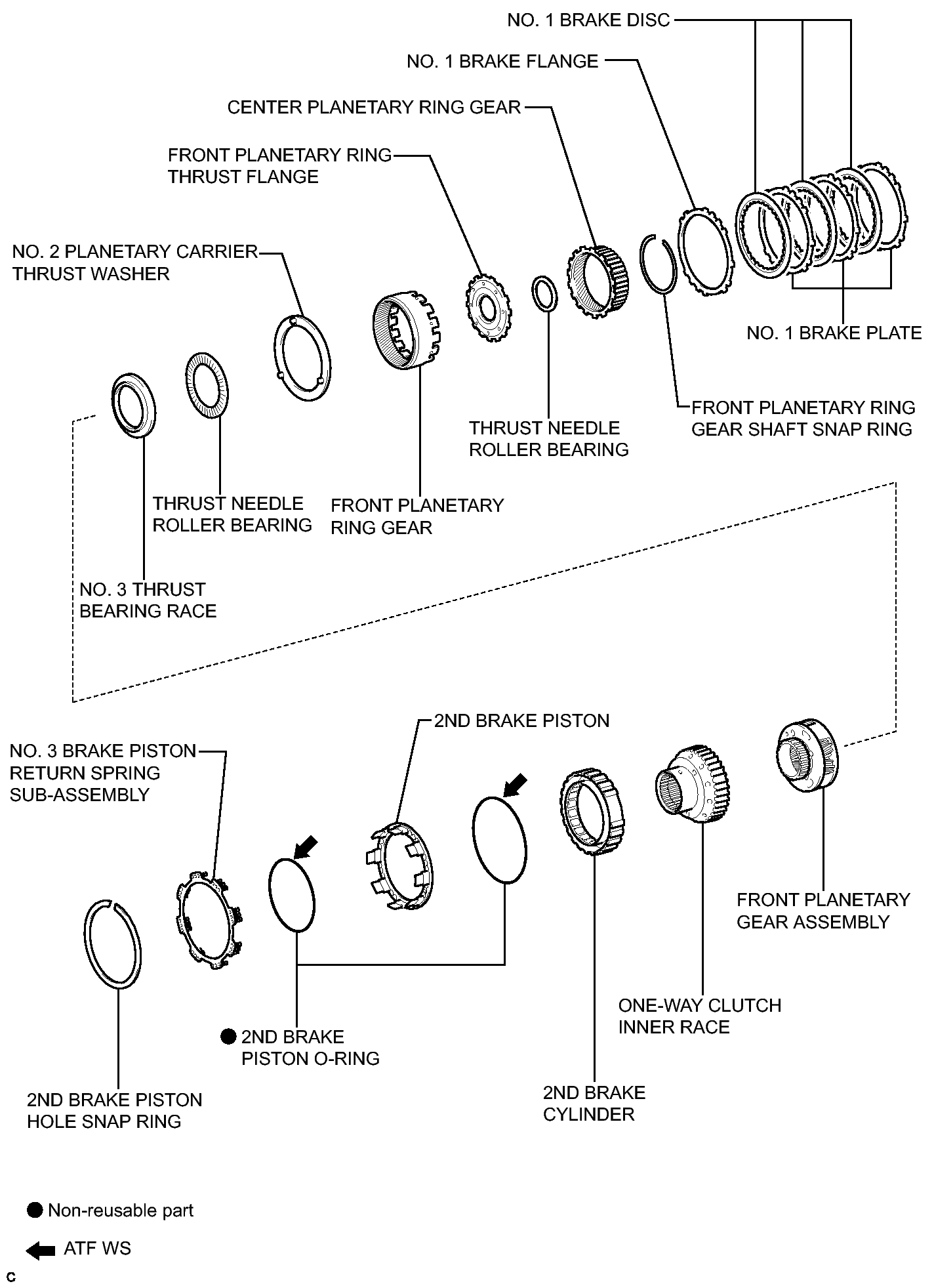

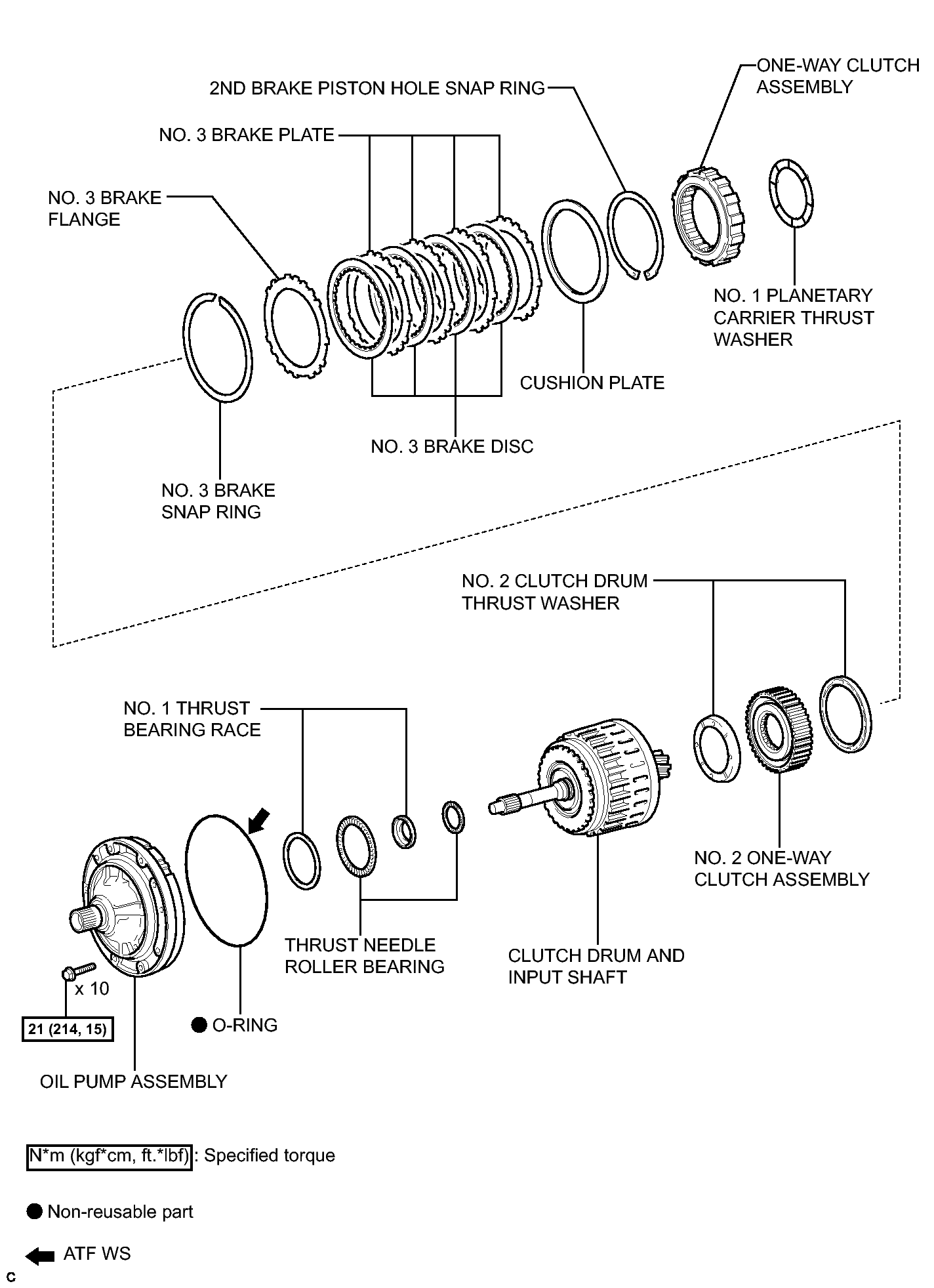

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (3 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

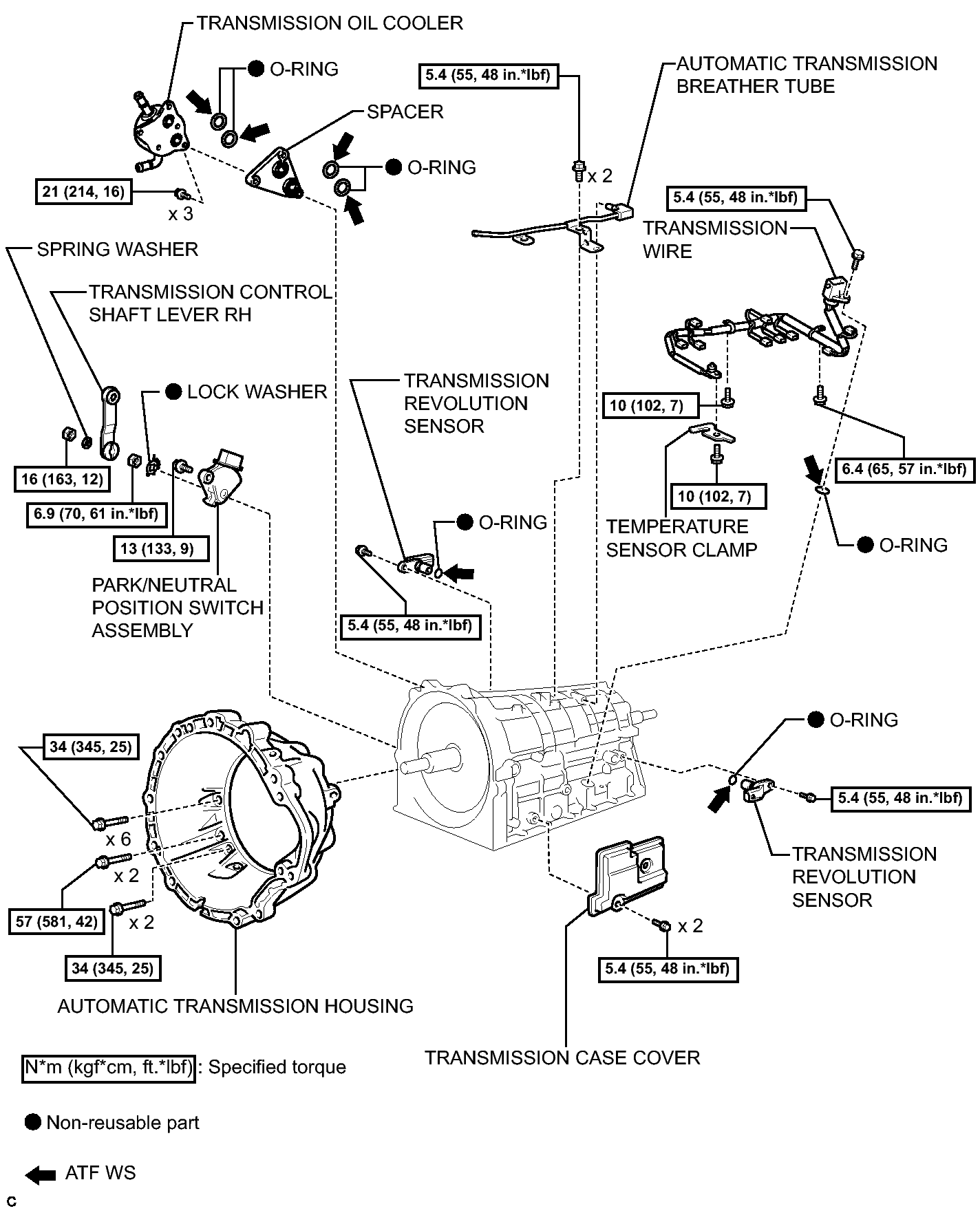

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (4 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

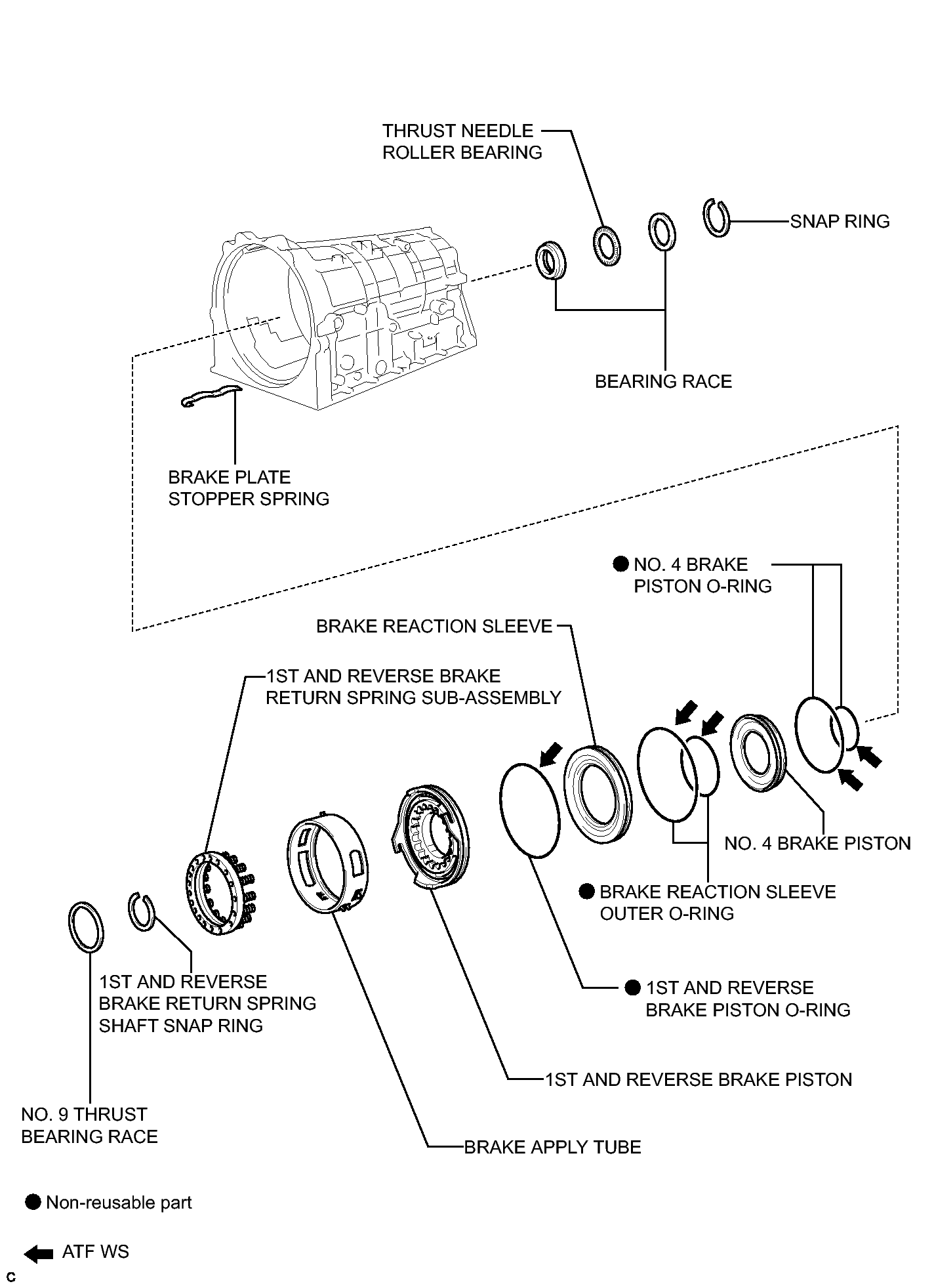

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (5 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

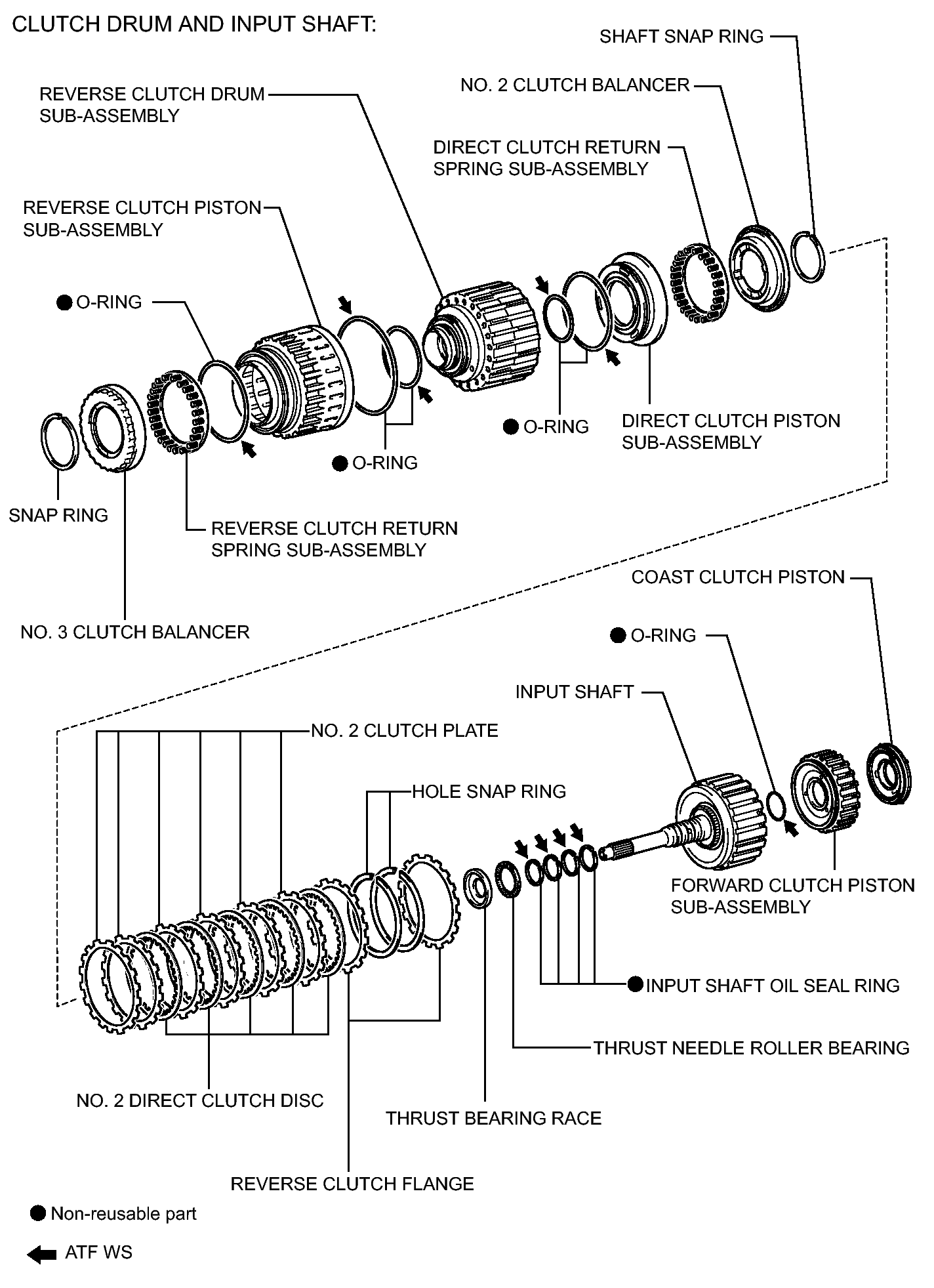

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components With Torque Specifications (6 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

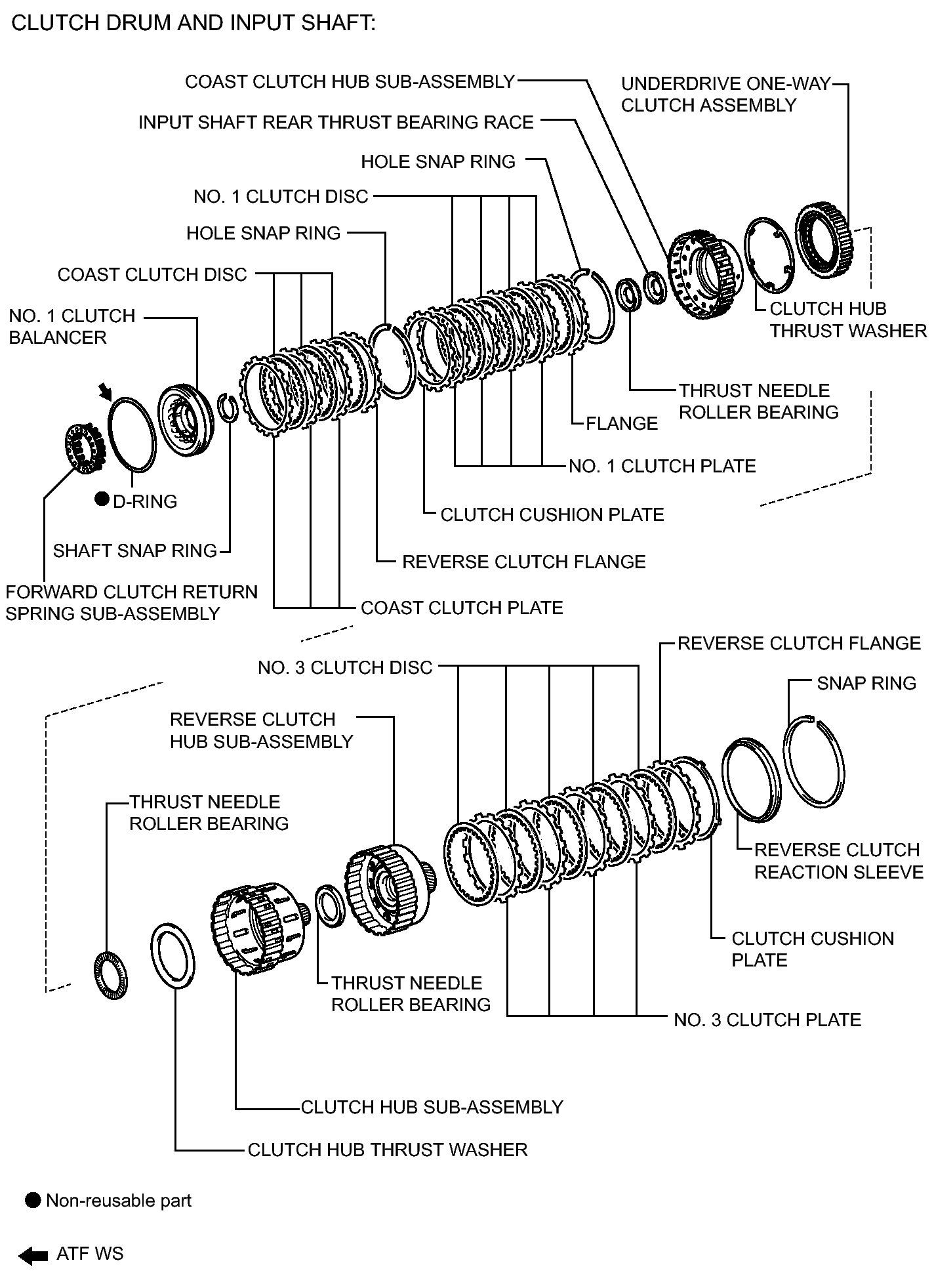

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components (7 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

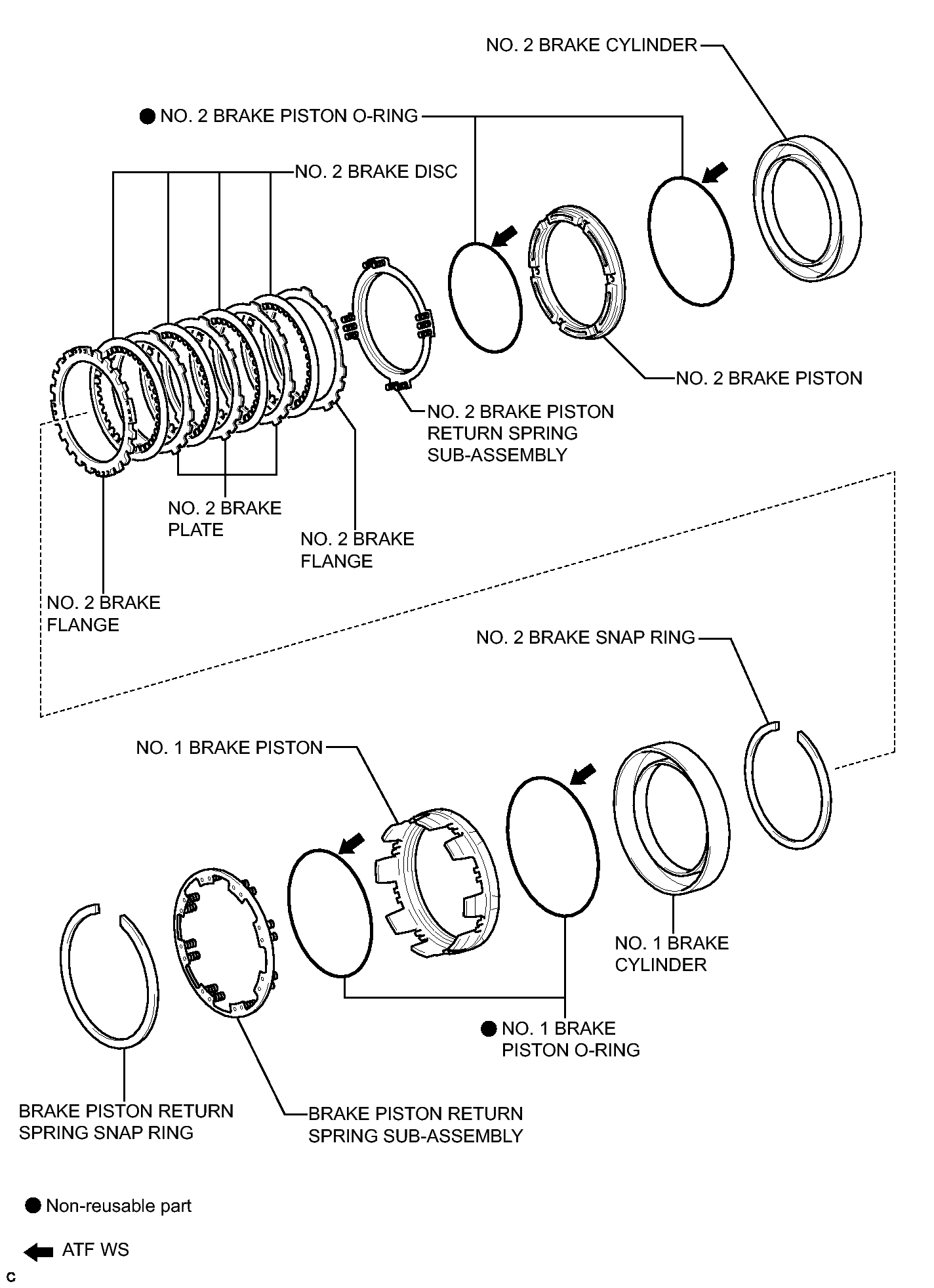

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components (8 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components (9 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components (10 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transmission Unit Replacement Components (11 of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
