Body Control Module: Locations

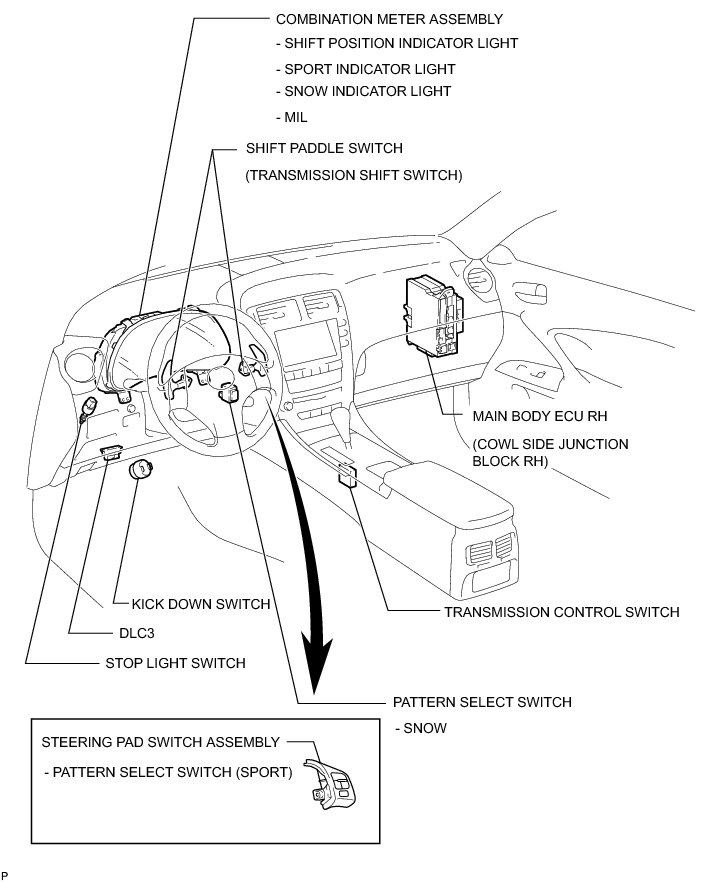

AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION

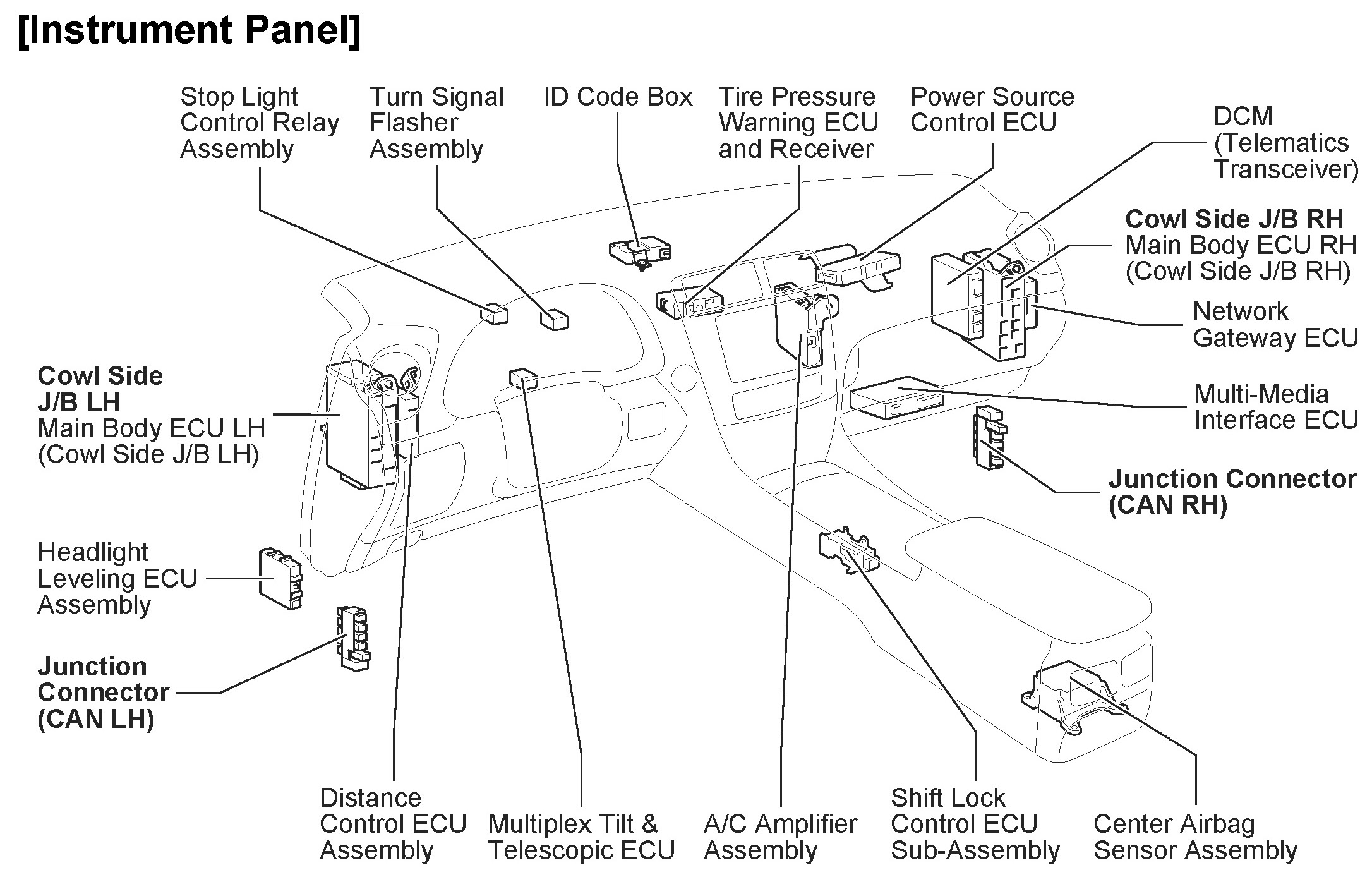

Instrument Panel:
