Installation

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: INSTALLATION

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

(a) Tighten the 3 bolts on the millimeter wave radar sensor assembly.

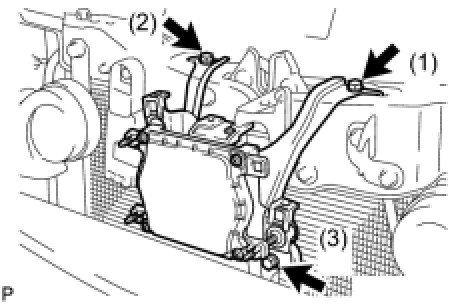

(b) Install the millimeter wave radar sensor with the 3 bolts as shown in the illustration.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

(c) Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY Installation

3. INSTALL RADIATOR GRILLE PROTECTOR Installation

4. INSTALL COOL AIR INTAKE DUCT SEAL Installation

5. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY Adjustments

6. ADD WASHER FLUID (w/ Headlight Cleaner System) Installation

7. ADJUST FOG LIGHT AIMING

Adjustments
