Installation

2UR-GSE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

1. INSTALL E.F.I. ENGINE COOLANT TEMPERATURE SENSOR

(a) Install a new gasket to the E.F.I. engine coolant temperature sensor.





(b) Install the E.F.I engine coolant temperature sensor.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

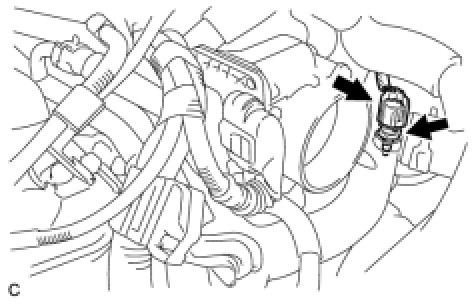

(c) Connect the E.F.I. engine coolant temperature sensor connector.

2. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

3. ADD ENGINE COOLANT Service and Repair

4. INSPECT FOR COOLANT LEAK Testing and Inspection

5. INSTALL COOL AIR INTAKE DUCT SEAL Installation

6. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

7. INSTALL ENGINE UNDER COVER
