Installation

2UR-GSE ENGINE CONTROL: INTEGRATION RELAY: INSTALLATION

1. INSTALL INTEGRATION NO.1 RELAY

(a) Connect the 3 connectors.

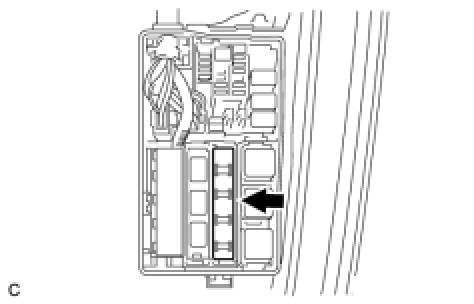

(b) Attach the integration relay to the engine room relay block.





2. INSTALL NO. 2 RELAY BLOCK COVER

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
