Installation

2UR-GSE ENGINE CONTROL: ENGINE OIL TEMPERATURE SENSOR: INSTALLATION

1. INSTALL OIL TEMPERATURE SENSOR

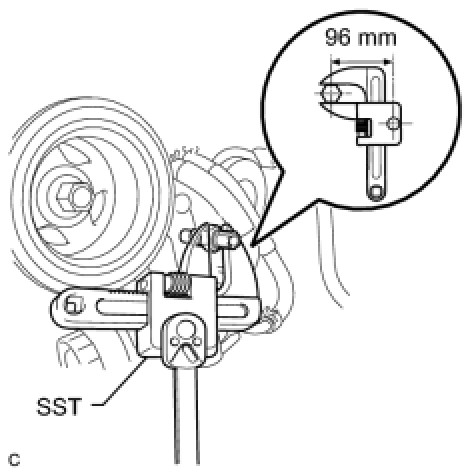

(a) Using SST, install the temperature sensor with a new gasket.





SST : 09922-10010

without SST - Torque : 39 Nm (400 kgf-cm, 29 ft-lbf)

with SST - Torque : 30 Nm (301 kgf-cm, 22 ft-lbf)

NOTICE:
* The "with SST" torque value is effective when using SST with a fulcrum length of 96 mm (3.78 in.).
* The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) Service Precautions.
* The "with SST" torque value is effective when SST is parallel to the torque wrench.
* Do not subject the temperature sensor to any impacts.
* If the sensor is subjected to an impact, replace the temperature sensor with a new one.
* Do not allow any moisture or foreign matter to enter the temperature sensor or its connector.

(b) Connect the temperature sensor connector.

2. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

(a) Install the engine oil pressure switch Installation.

3. INSPECT FOR OIL LEAK
