Removal

2UR-GSE ENGINE CONTROL: ENGINE OIL TEMPERATURE SENSOR: REMOVAL

1. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

(a) Remove the engine oil pressure switch assembly Removal.

2. REMOVE OIL TEMPERATURE SENSOR

(a) Disconnect the temperature sensor connector.

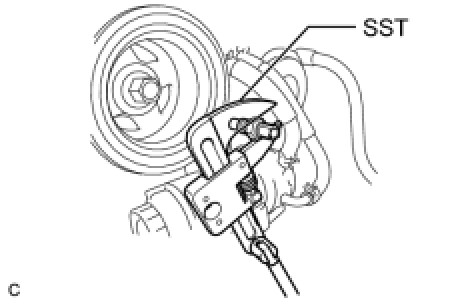

(b) Using SST, remove the temperature sensor and gasket.





SST : 09922-10010

NOTICE:
* Do not subject the temperature sensor to any impacts.
* If the sensor is subjected to an impact, replace the temperature sensor with a new one.
