Torque Specifications

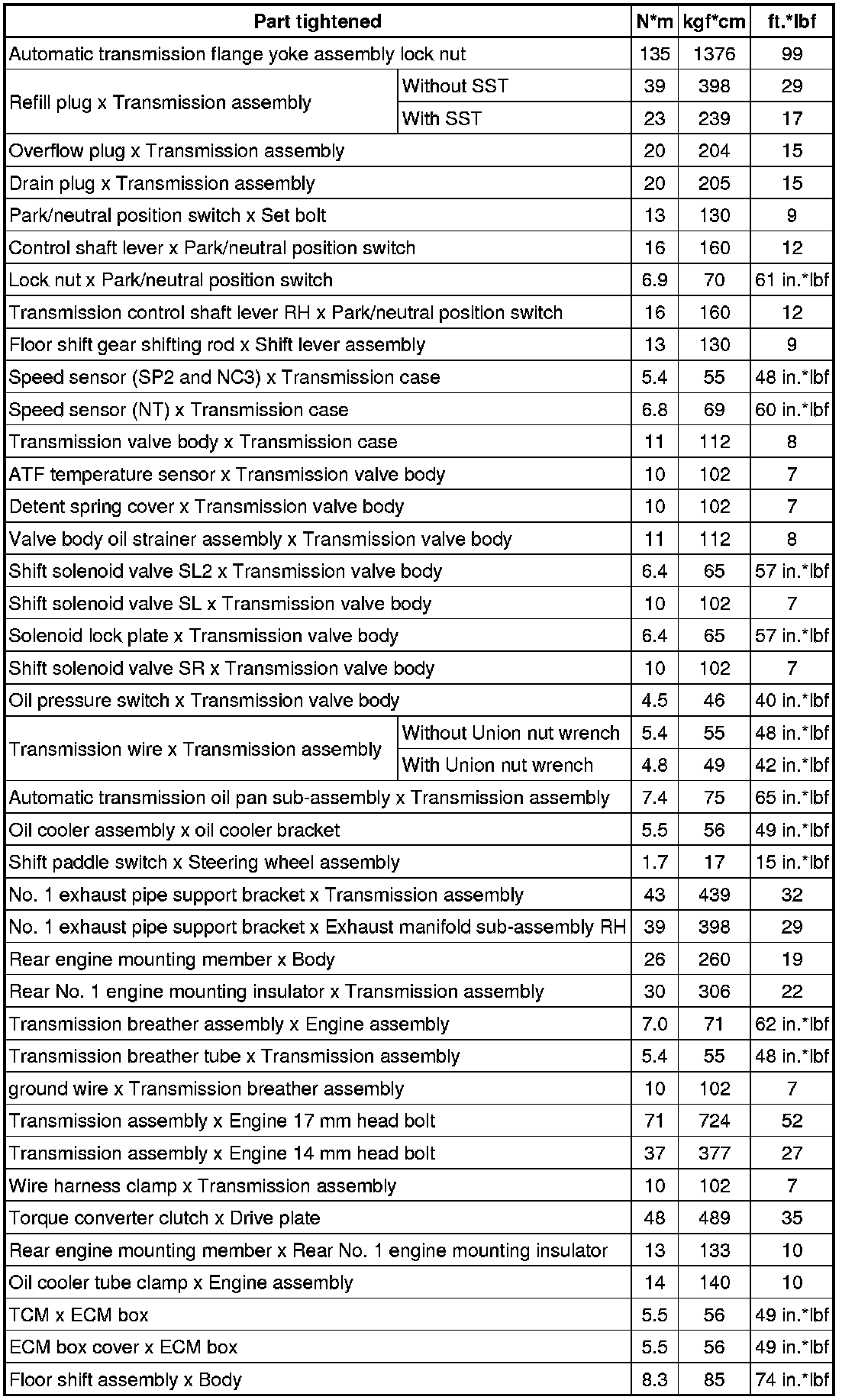

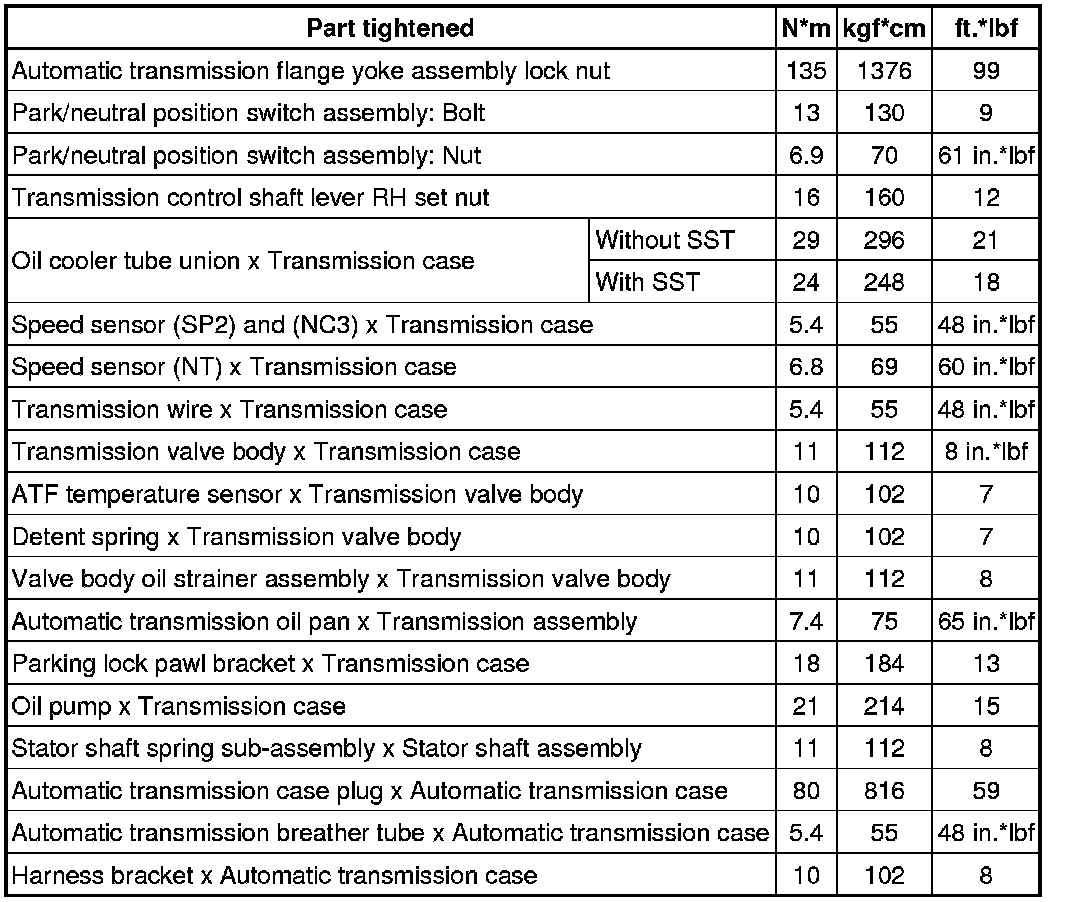

SPECIFICATIONS: AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

AUTOMATIC TRANSMISSION ASSEMBLY





AUTOMATIC TRANSMISSION UNIT
