Components

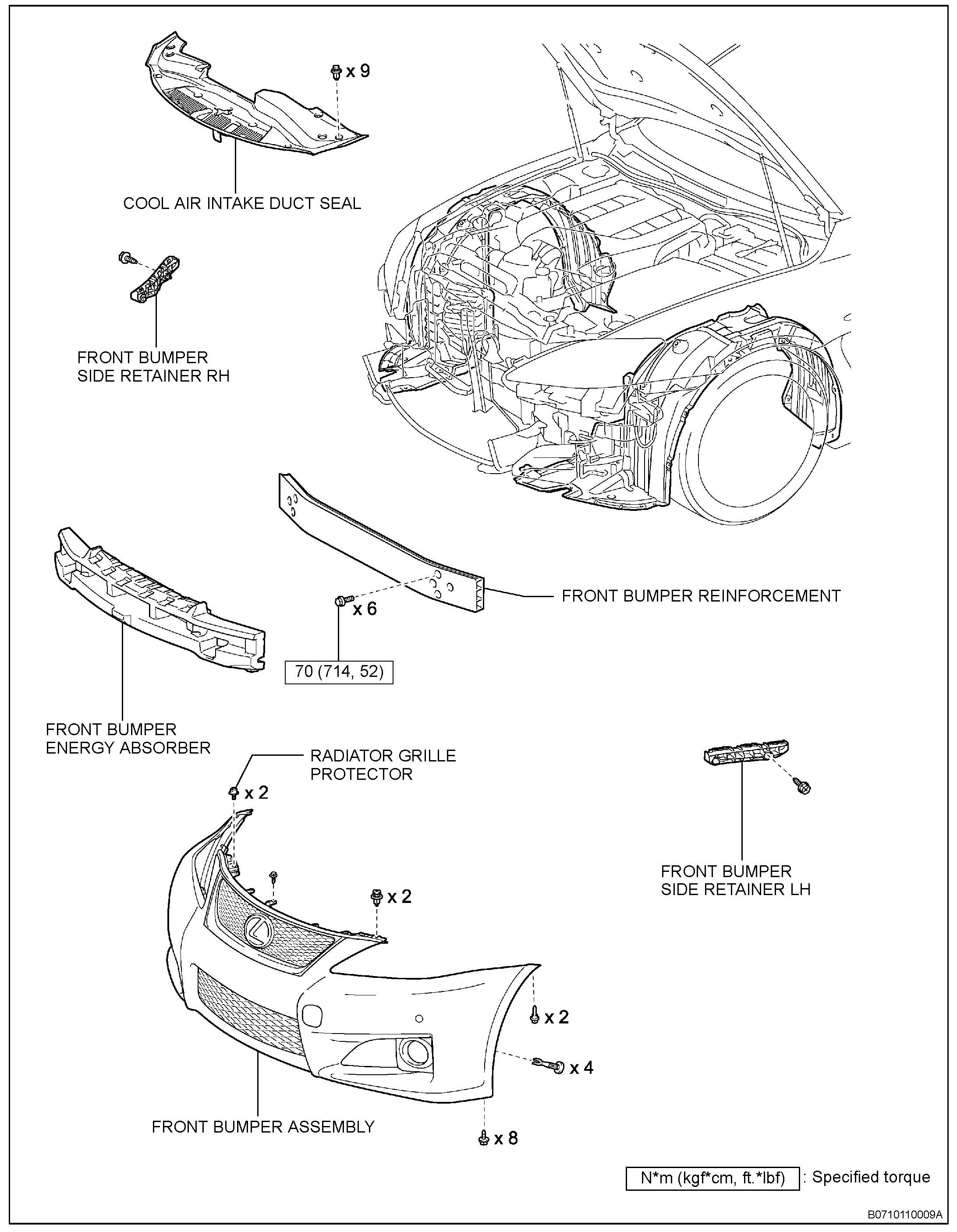

Front Bumper:

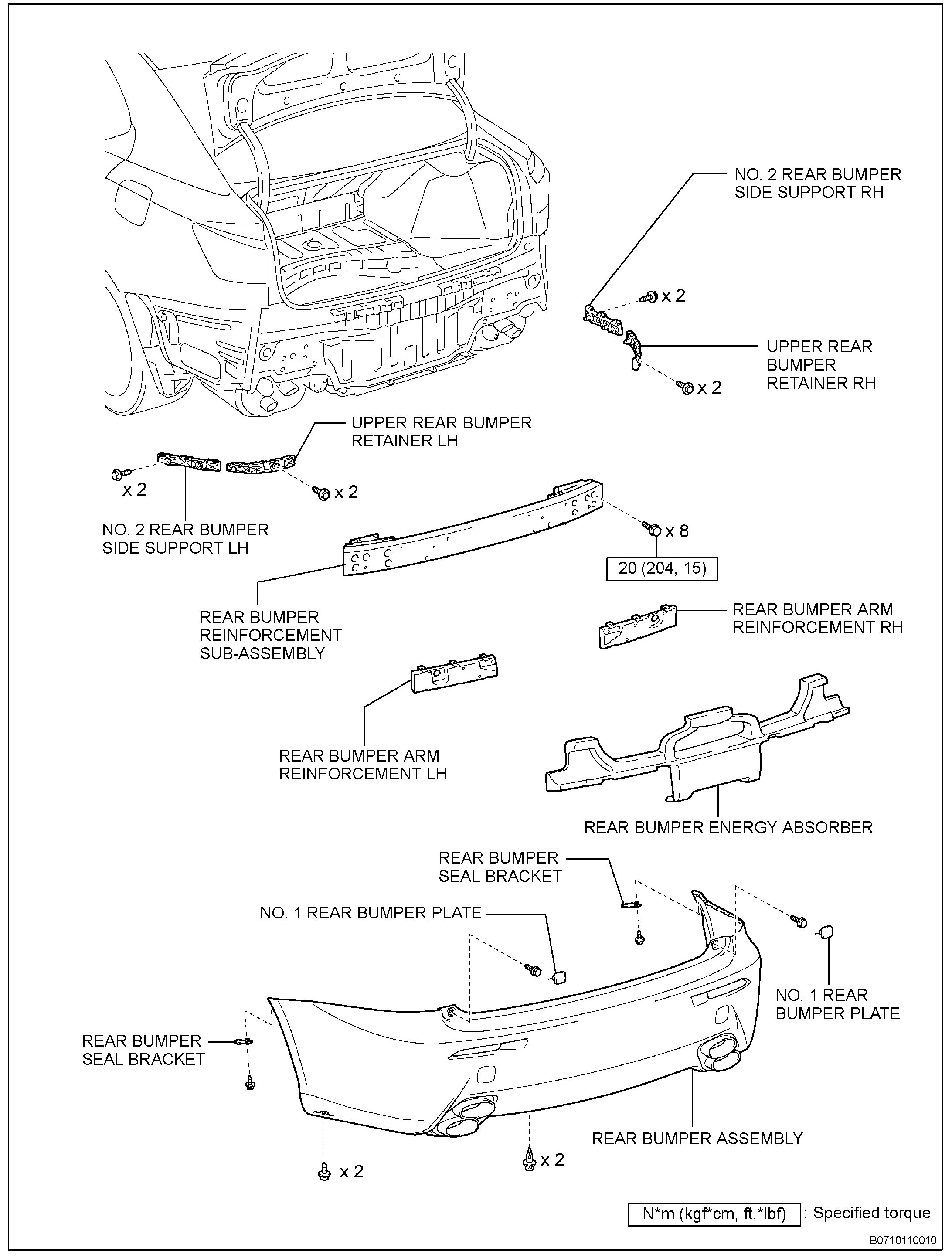

Rear Bumper:

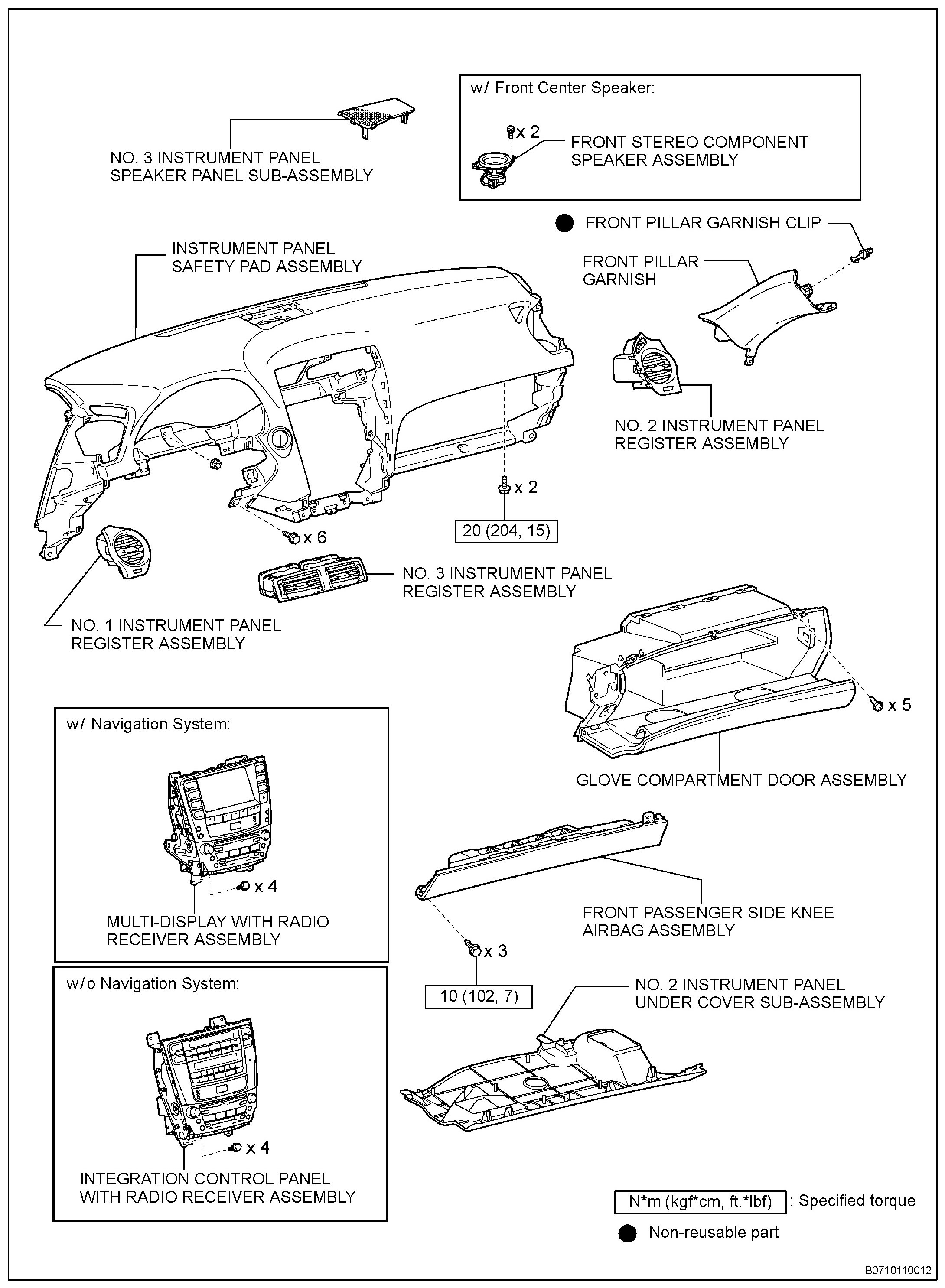

Instrument Panel:

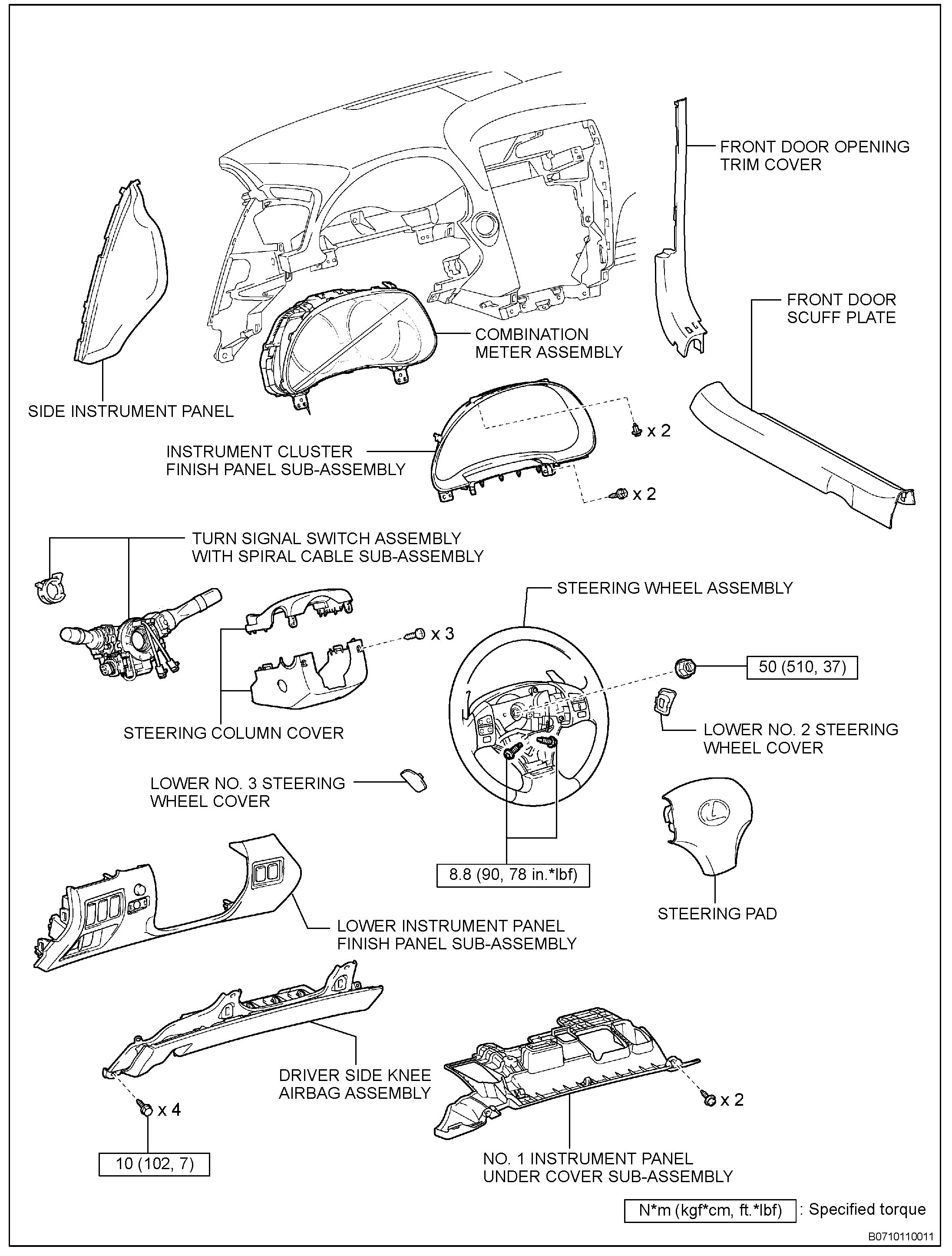

Instrument Panel:

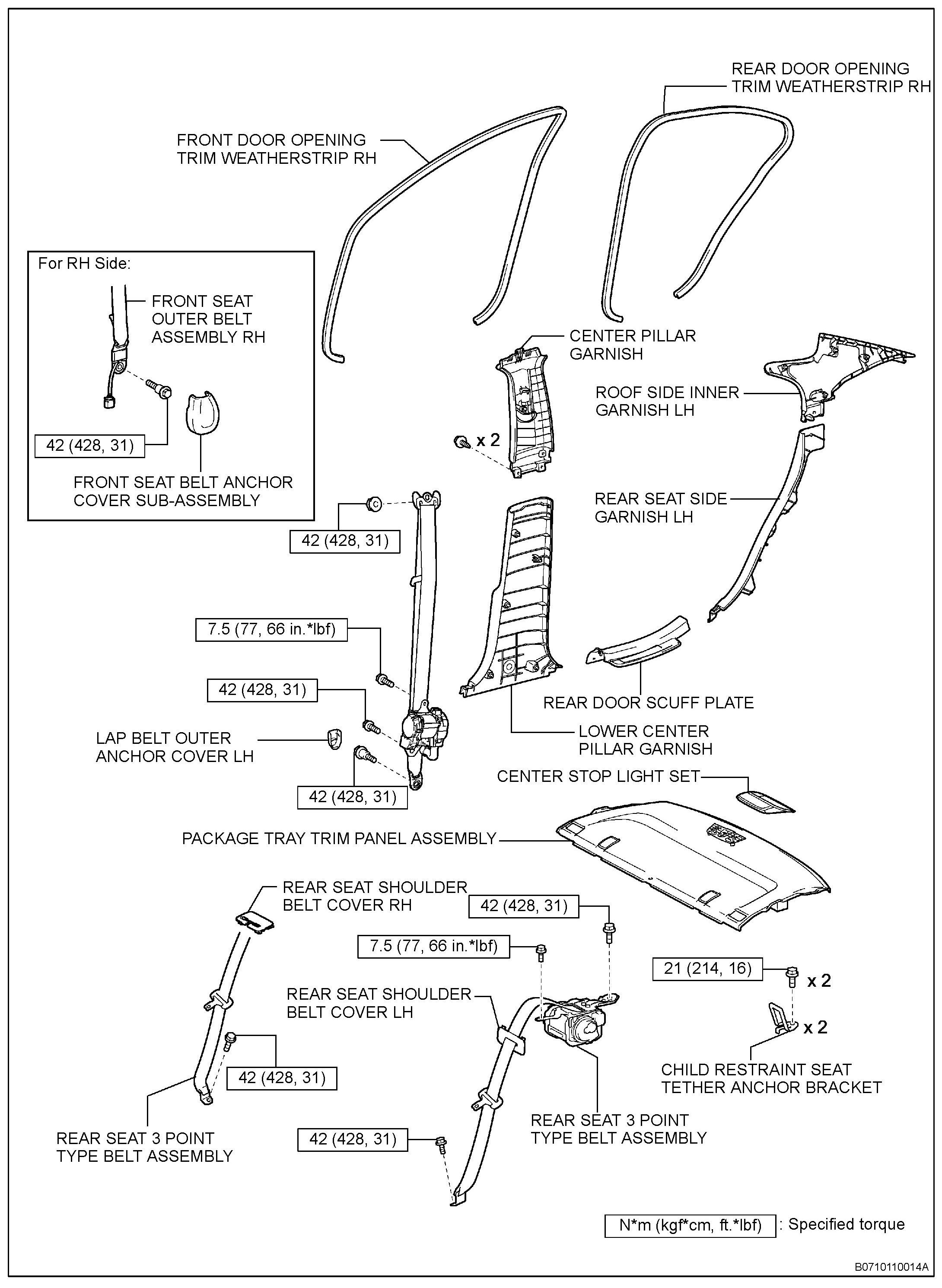

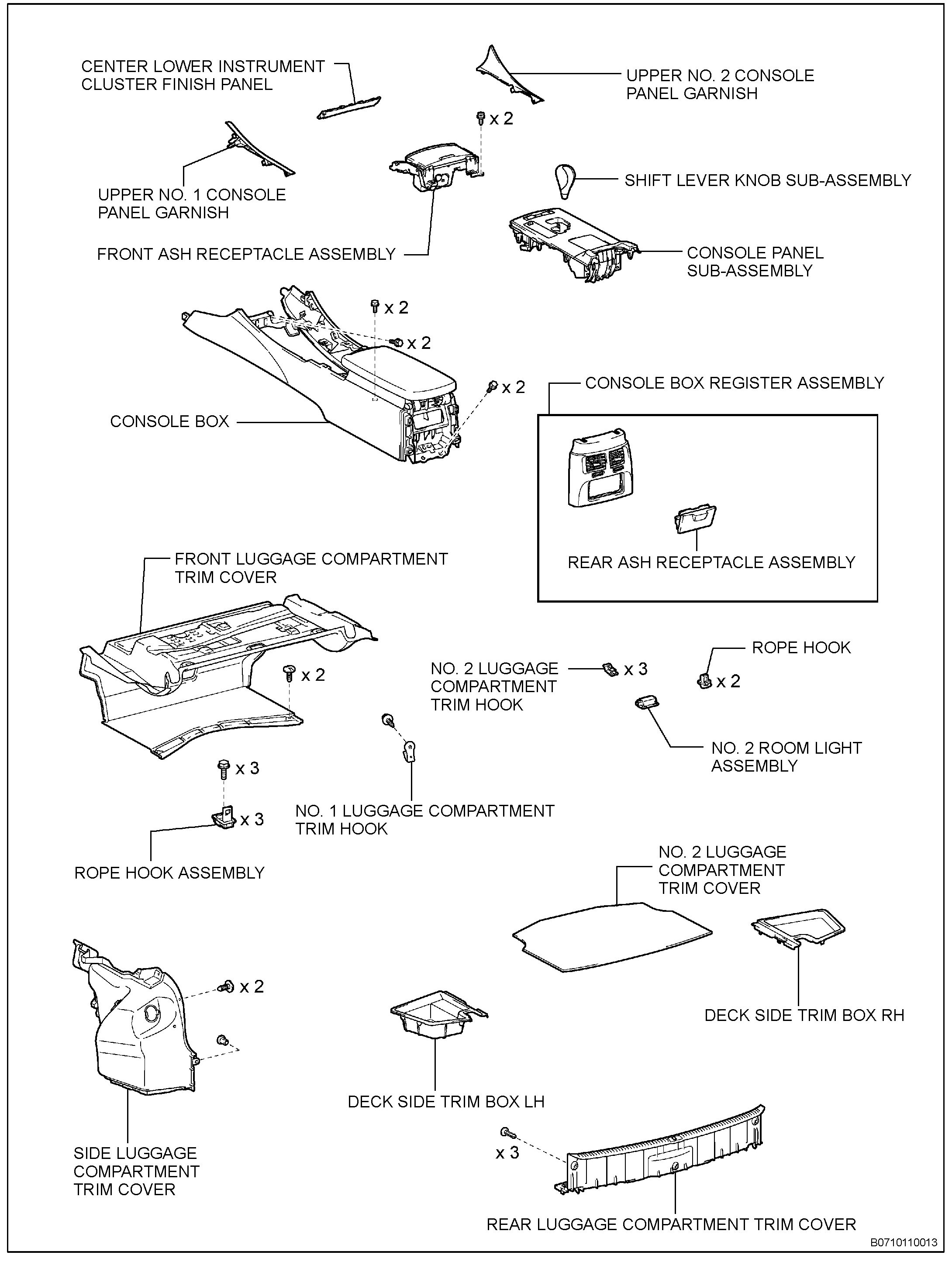

Interior Trim:
Interior Trim:

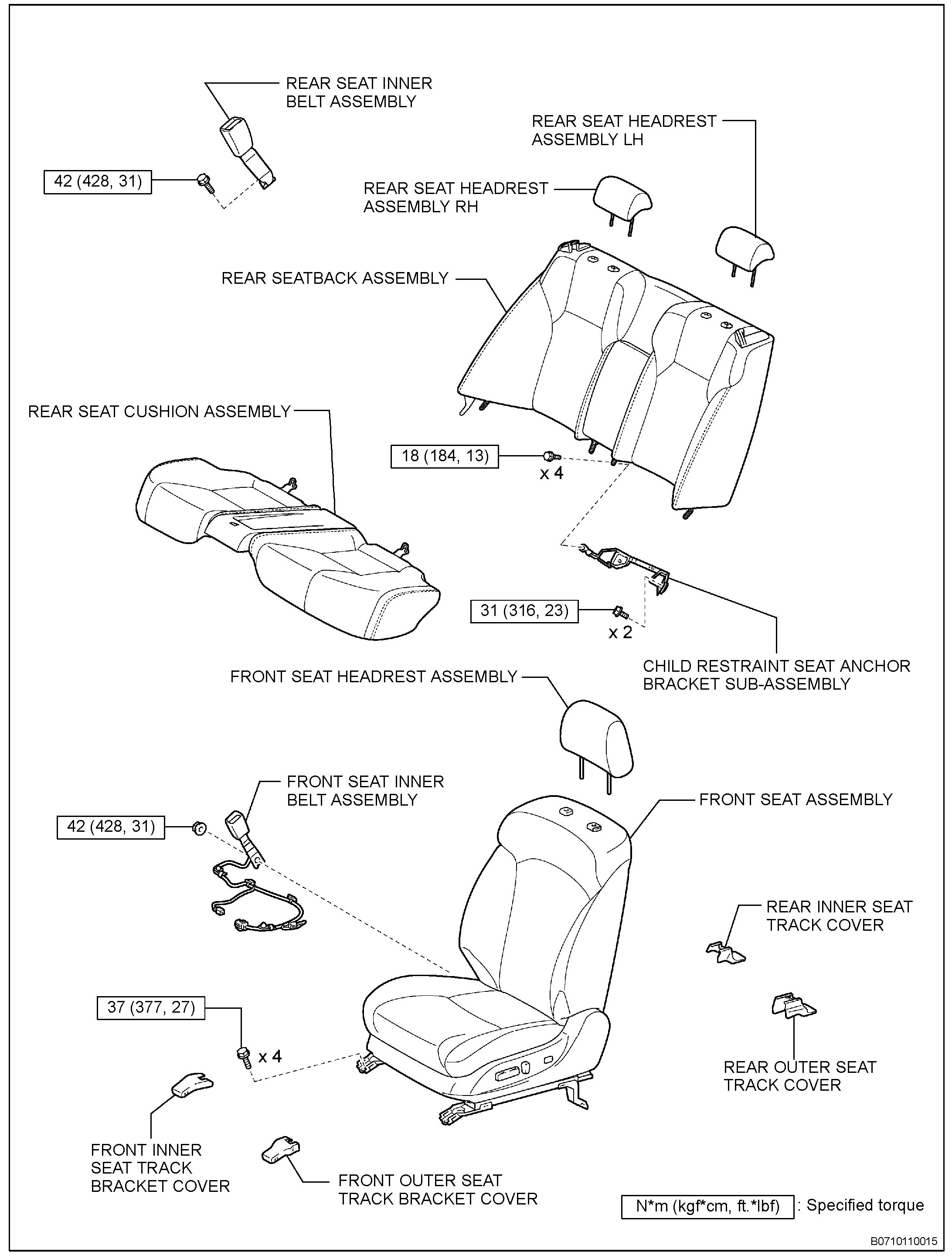

Seat:
