Customize Parameters

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM (REFERENCE)

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function(s) can be customized.
* Be sure to make notes of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Power Window / Utility / Customize Setting.

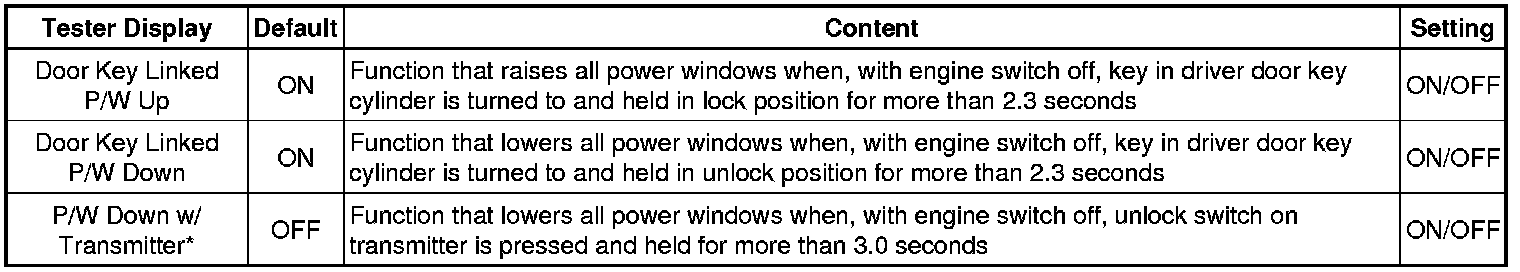

(e) Select the setting by referring to the table below.

Power Window





*: w/ Occupant Classification System
