Distance Control Switch: Removal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 40
  2. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 42
  3. REMOVE SIDE INSTRUMENT PANEL LH  . Refer to REMOVAL - Step 26
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 28
  5. REMOVE CRUISE DISTANCE SWITCH ASSEMBLY
    1. Disengage the 2 claws and remove the cruise distance switch assembly.

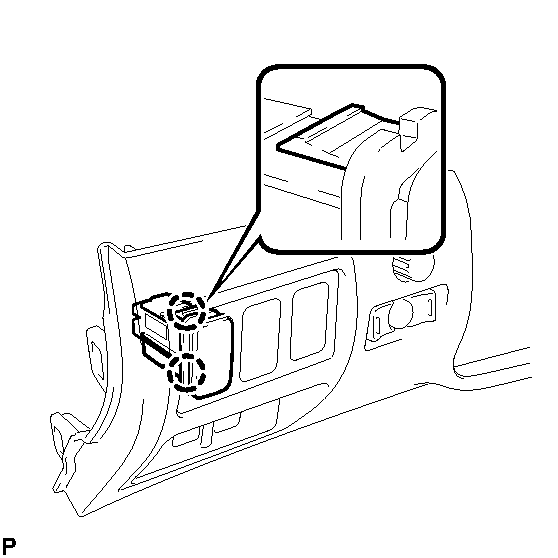

      Fig 1: Identifying Claws And Cruise Distance Switch Assembly
      GTY352179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
