Front Speed Sensor: Installation: Installation

INSTALL FRONT SPEED SENSOR
1. Wipe off sealant attached to the front speed sensor's fitting surface with a non-residue solvent.
  NOTE:
  Prevent foreign matter from attaching to the sensor rotor.

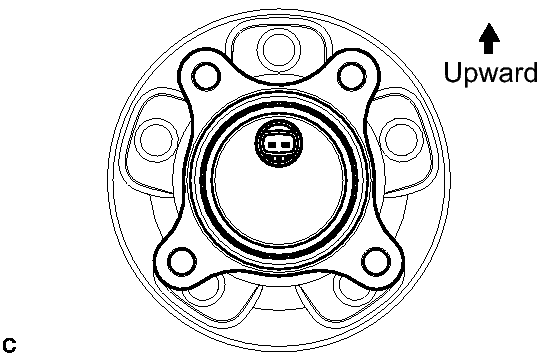

2. Install a new front speed sensor to the hub and bearing assembly. The front speed sensor connector should be positioned upward.

  Fig 1: Identifying Front Speed Sensor Connector Should Be Positioned Upward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

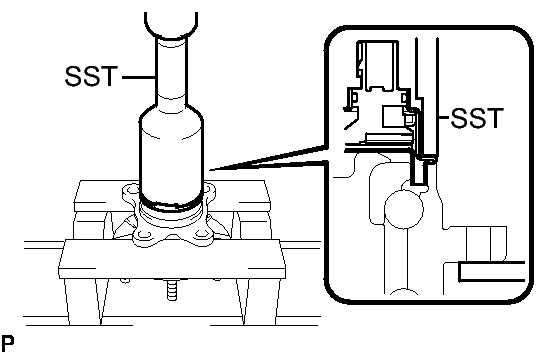

3. Using SST and a press, install the front speed sensor onto the front axle hub and bearing.

  Fig 2: Installing Skid Control Sensor Onto Hub And Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09214-76011
  NOTE:
  - Keep the front speed sensor away from magnets.
  - Do not use a hammer on the front speed sensor.
  - Check that there is no foreign matter such as iron chips on the front speed sensor's detecting portion.
  - Slowly press the front speed sensor straight.
INSTALL FRONT AXLE HUB SUB-ASSEMBLY WITH FRONT SPEED SENSOR . Refer to INSTALLATION - Step 1
INSPECT FRONT AXLE HUB BEARING FOR LOOSENESS . Refer to ON-VEHICLE INSPECTION - Step 4
INSPECT FRONT AXLE HUB FOR RUNOUT . Refer to ON-VEHICLE INSPECTION - Step 5
INSTALL FRONT DISC . Refer to INSTALLATION - Step 1
INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY . Refer to INSTALLATION - Step 6
CONNECT FRONT SPEED SENSOR WIRE

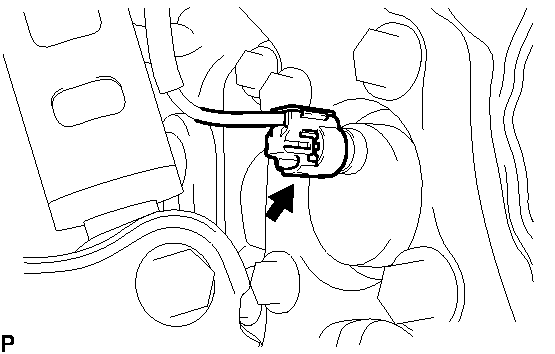

1. Connect the front speed sensor wire to the front speed sensor.
  NOTE:
  Do not twist the sensor wire.

  Fig 3: View Of Connecting Front Speed Sensor Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR SPEED SENSOR SIGNAL
HINT:

Refer to TEST MODE PROCEDURE
