Skid Control Buzzer: Installation: Installation

  1. INSTALL SKID CONTROL BUZZER
    1. Attach the clip and install the skid control buzzer.
      Fig 1: Identifying Skid Control Buzzer Assembly & Clip
      GTY142422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the skid control buzzer connector.

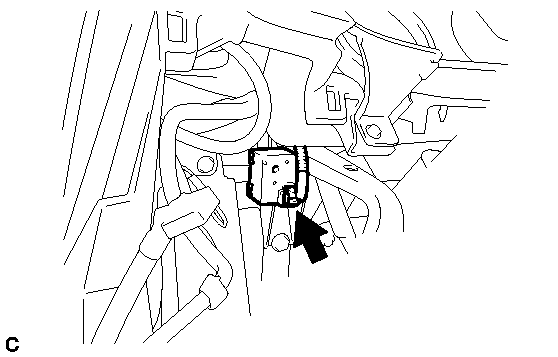

      Fig 2: Locating Skid Control Buzzer Connector
      GTY121770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 23
  3. INSTALL SIDE INSTRUMENT PANEL LH  . Refer to INSTALLATION - Step 25
  4. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 79
  5. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 81
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
